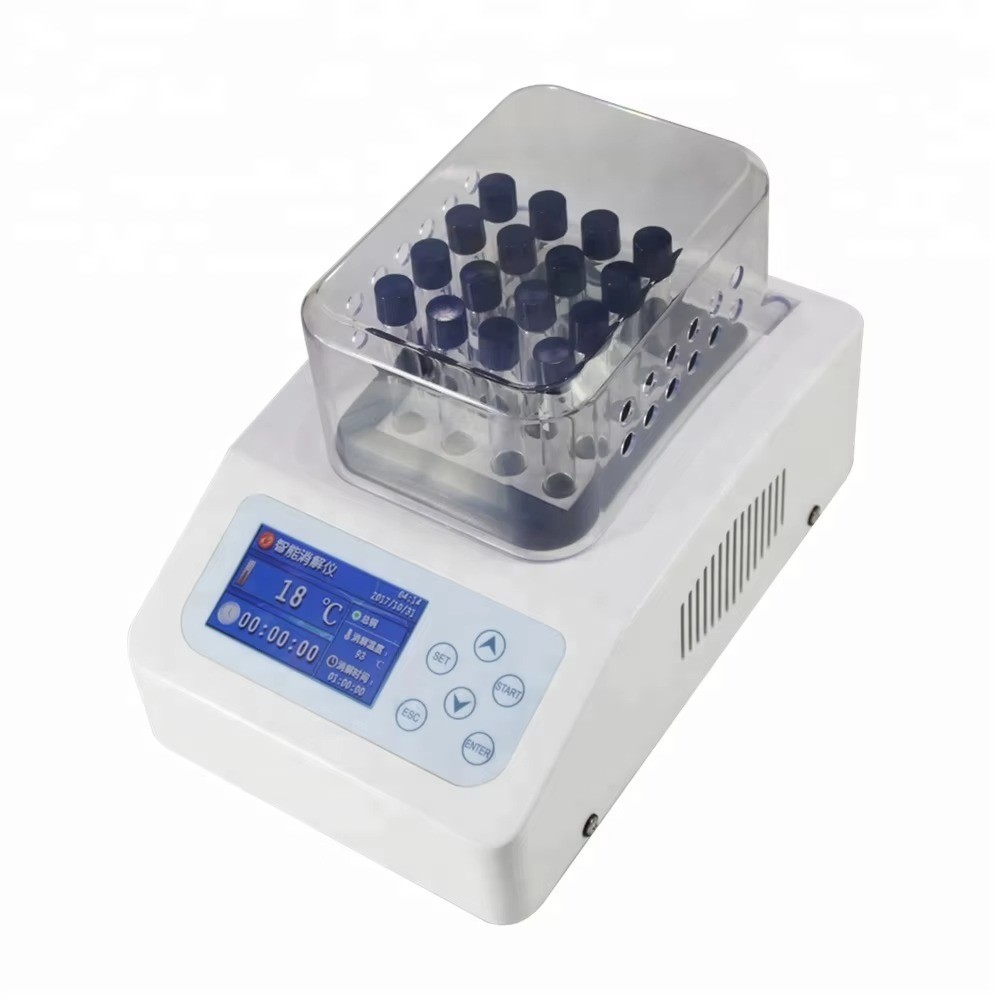

COD Reactor

Product Introduction

1.COD reactor: At high temperatures, the glass bottle of this document culture has a small amount of drugs. Read carefully, follow the label on the instrument, and read the safety instructions on the bottle

2. Remove COD Flasks: Be careful when removing COD vials and putting on protective clothing. See "Operation". After completion, the use of reaction flasks should be in accordance with national regulations

3. Safety Equipment: Wear protective clothing when operating the COD reactor. Include gloves, masks, and glasses. See "Operation". Safety shields are recommended

4. Reactor Spill: Immediately remove spilled reagents. If skin comes into contact with reagents, rinse thoroughly with water. Quiet reagent vapors. Read the instructions on the bottle for a full understanding

5. Fire: Do not put flammable materials near the COD reactor to avoid fire

6. Model YK-16D: COD reactor for 220 V power supply

7. Fuse Replacement: Use a fuse with the specified voltage and current ratings

Technical Data

1.  Operating chamber temperature range: 0 to 50°C
2.  Storage chamber temperature range: -40 to +60°C
3.  Temperature stability: ±1°C
4.  Capacity: 16*100mm tube
5.  Temperature accuracy: ±1°C
6.  Temperature range: 37 °C ~ 165 °C±1°C, easy to adjust
7.  Time setting range: Timed 0 to 31 hours (1 to 1860 minutes); The heating system can be turned off automatically
8.  Thermometer: 5 mm diameter, above 165 °C, 1% accuracy mercury thermometer
9.  Power Requirements: 220 V, ±10%, 50/60 HZ, 2A AC
10.  External Dimensions: 220*340*130mm
11.  Weight 3.5 kg
12.  Warm-up time: 5 minutes
