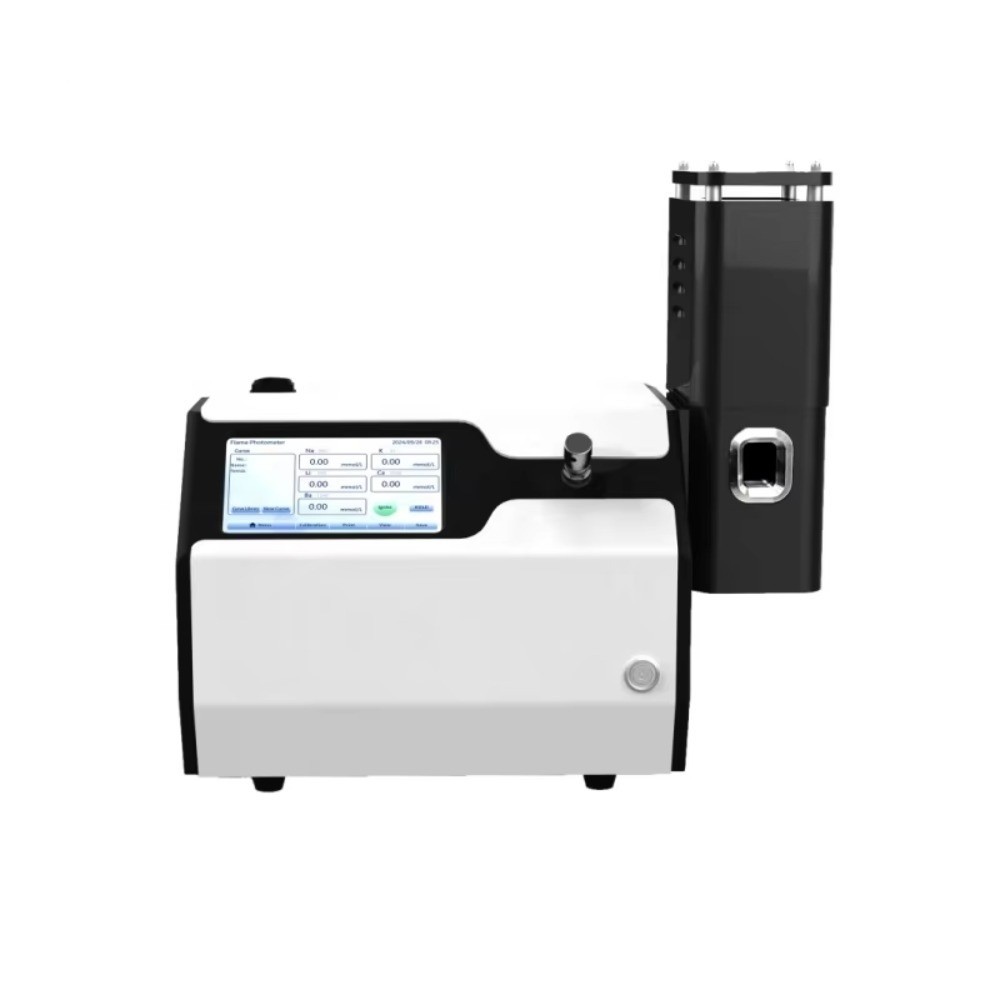

Flame Spectrophotometer

Product Item : ZY-FP450
Category： UV Spectrophotometer & Spectrometer
Flame Spectrophotometer
Product description：Product Introduction 1.7-inch color touch screen. 2. Direct reading attention. 3. Flame-out protection device. 4. Automatically calculate the correlation coefficient.
INQUIRY

Product Introduction

1.7-inch color touch screen.

2. Direct reading attention.

3. Flame-out protection device.

4. Automatically calculate the correlation coefficient.

More Product Details

1. Small size and easy to handle, 7-inch color capacitive touch LCD display

2. The flame-out protection device and gas leakage alarm are safe and reliable

3. USB flash drive data export and a USB communication port.

4. Directly read the concentrations of potassium, sodium, lithium, calcium, and barium elements.

5. Measurement Settings: Users can configure the elements displayed on the main interface according to the requirements of the test sample.

6. The air compressor is a standard accessory.

Technical Data

model		ZY-FP450	ZY-FP440	ZY-FP432	ZY-FP 431	ZY-FP 430	ZY-FP 410	ZY-FP 400
shown		7-inch color touch screen
Show results		Concentration value/energy
Reading range		0.000~999.9/0~65535
testable		K、Na、Li、Ca、Ba	K, Na, Li, Ca	K、Na、Ba	California, North America	K, Na, Li	K, Na	K, Na
Number of channels		5	4	3	3	3	2	2
Range ppm	K	0-100	0-100	0-100	0-100	0-100	0-100	0-100
	On	0-160	0-160	0-160	0-160	0-160	0-160	0-160
	Lee	0-100	0-100	--------	-------	0-100	--------	--------
	Ca	0-1000	0-1000	--------	0-1000	--------	--------	--------
	Three	0-3000	--------	0-3000	--------	--------	--------	--------
Detection limit ppm	K	0.01	0.01	0.01	0.01	0.01	0.01	0.01
	On	0.01	0.01	0.01	0.01	0.01	0.01	0.01
	I read	0.1	≤0.015	--------	--------	≤0.015	--------	--------
	Ca	2	2	--------	2	--------	--------	--------
	Three	6	--------	6	--------	--------	--------	--------
Linear error	K	0.195	0.195	0.195	0.195	0.195	0.195	0.195
	On	0.69	0.69	0.69	0.69	0.69	0.69	0.69
	I read	0.15	0.15	--------	--------	0.15	--------	--------
	Ca	3	3	--------	3	--------	--------	--------
	Three	9	--------	9	--------	--------	--------	--------
Response time		<8S
Sample ingestion		< 6 ml/min
Stability		<3% drift over 15s when continuously sampled
Reproducibility		< 3% coefficient of variation for 7 consecutive samples
Bluetooth printer		yes	Yes	Yes	Yes	Yes	Yes	No
output		USB port
Power		AC 220V/50Hz or AC 110V/60Hz
