Click Line Life Tester

Product Item : ZHIYI-60
Category： Other
Line Life Testing Machine
Click Line Life Tester
Product description：Click line life tester is used for dot touch screen and write life test equipment, the machine adopts mechanical structure to drive weight standard constant pressure, product point simulation, written
INQUIRY

Product Introduction

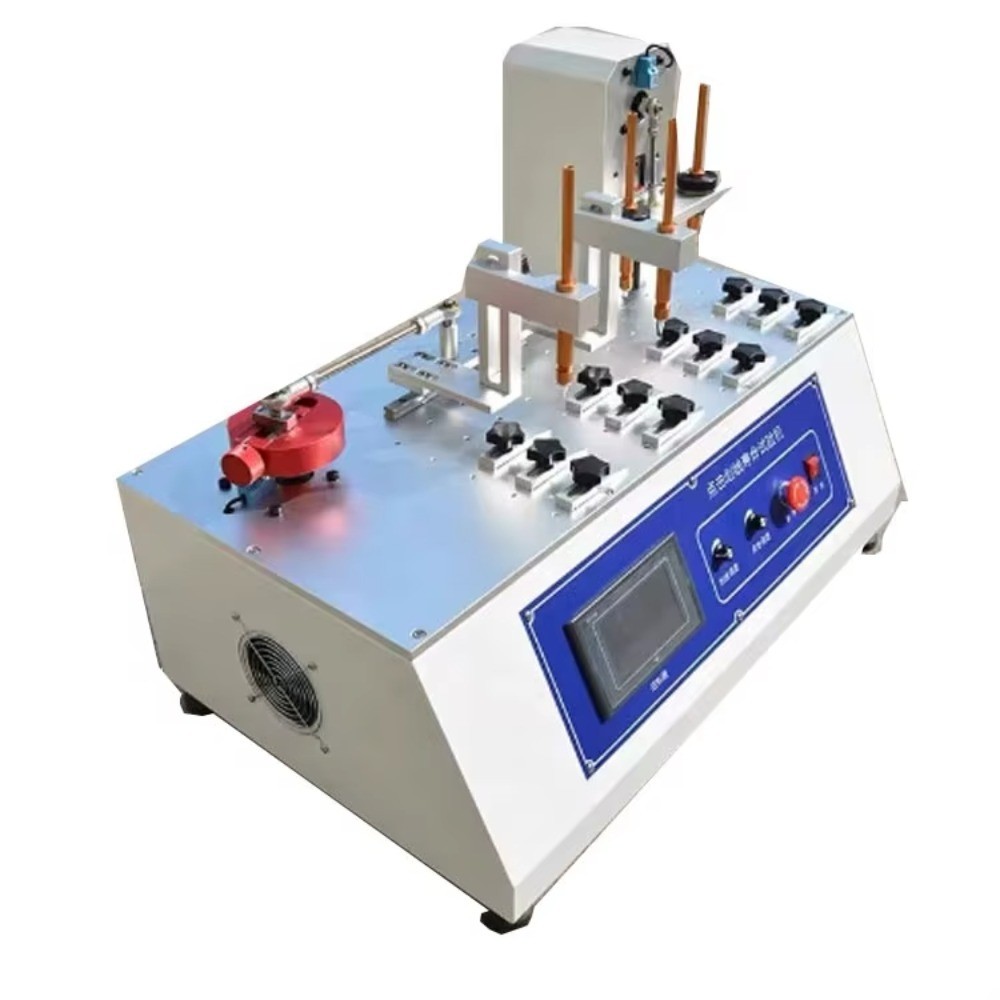

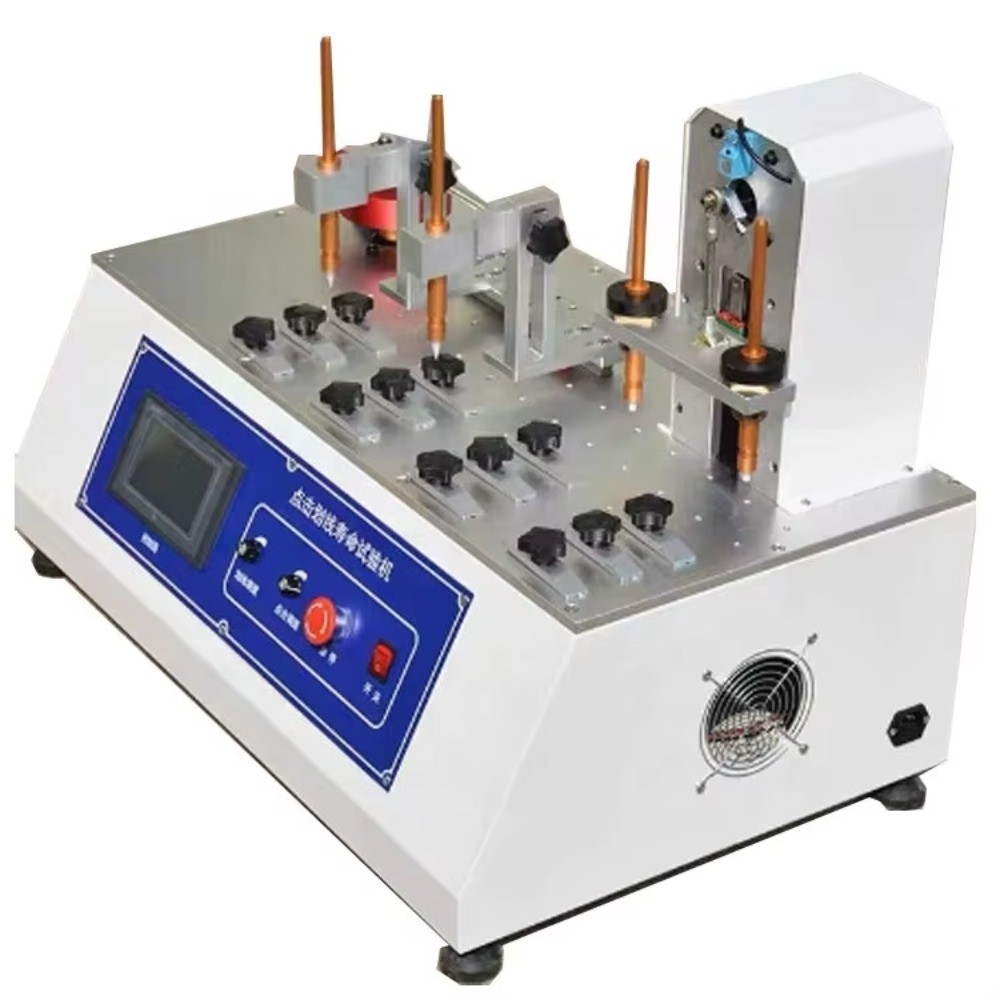

Click line life tester is used for dot touch screen and write life test equipment, the machine adopts mechanical structure to drive weight standard constant pressure, product point simulation, written test, life also switches the test head to HB pencil hardness test, hardness test of product shell, rubber surface, spray paint hardness test item, paint adhesion test. This machine is equipped with double-head pressure, adjustable speed, adjustable stroke, number of stops, etc.

Technical Data

Test Station	Click and underline 2 per hit
Table size	750 mm 350 mm
Stroke range	tap 50mm and underline 0mm-60mm
Test power	stepper motor
Test head	Chinese pencil with Teflon or HB standard hardness
Sport mode	Speed regulating motor
Test speed range	0.25-2 seconds/time
Two marker bars	Click on 2 strokes
Preset measurement time automatic shutdown	0 ~ 10 million times
