Color and Haze Meter

Product Item : ZHIYI-166CH
Category： Color and Gloss meter
haze meter
color haze meter
color and haze meter
light transmittance meter
Product description：Color Haze Meter can measure haze, transmittance, color difference and spectral transmittance. It supports both ASTM and ISO standards. It is equipped with 7-inch color screen, easy to use. Dual aper
INQUIRY

ZHIYI-166CH Color and Haze Meter Introduction

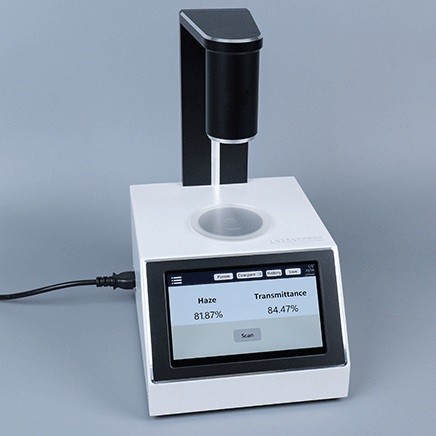

Color and haze meter adopts full spectrum LED light source and spectral sensor design. It measures multiple parameters such as haze, transmittance, color, clarity, turbidity, and Pt-Co for transparent and semi-transparent materials like plastic, glass, films and liquids, and it can also display the spectral transmittance curve. The instrument is equipped with 7-inch touch screen for easy operation.

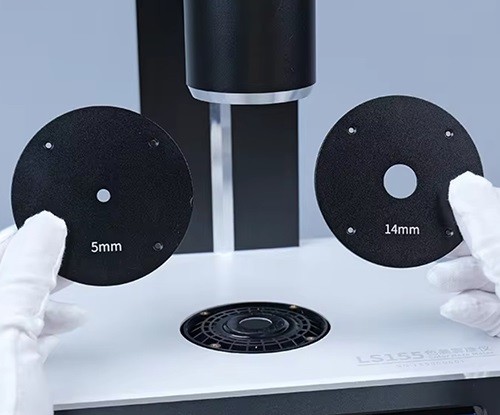

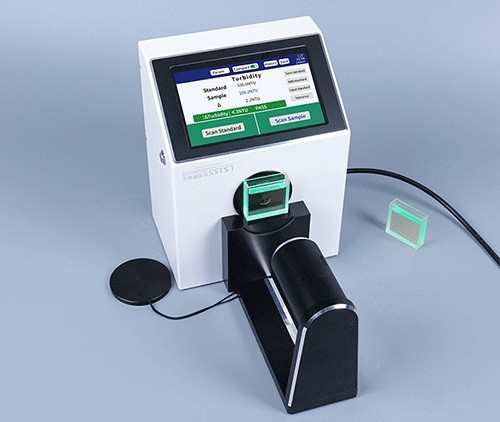

Color and haze meter adopts an open measurement area and has two measurement states: horizontal and vertical, and can detect liquids and large-size materials. Color and haze meter also adopts a dual-aperture design of 14mm and 5mm, which can also measure small-sized materials. The instrument is equipped with PC software to support data export and report printing.

ZHIYI-166CH Color and Haze Meter Advantages

1). Supports both ASTM and ISO standards
2). Equipped with 7-inch color screen, easy to use
3). Dual aperture design, small-sized materials can also be measured
4). Good repeatability and can pass the test of the National Institute of Metrology

5). It supports both vertical and horizontal measurement methods

ZHIYI-166CH Color and Haze Meter Technical Data

Geometry	D/0
Light Source	Full spectrum LED light source
Spectral Range	400-700nm
Spectral Interval	10nm
Measuring Aperture	5mm/14mm
Measurement Conditions	Light source D65, field of view 10°; Light source A, field of view 2°; Light source C, field of view 2°
Measuring Time	About 3s
Measuring Parameter	Haze, Transmittance, CIE Lab, LCh, Yxy, Spectral transmittance, Clarity, Turbidity, Pt-Co(Hazen)
Transmittance Resolution	0.01%
Transmittance Accuracy	Better than ±1%
Transmittance Repeatability	≤0.03 (Standard deviation of 30 measurements at 3-second intervals on a standard haze plate with transmittance ~80% and haze ~30, after preheating calibration)
Haze/Clarity Resolution	0.01%
Haze/Clarity Accuracy	Better than ±2%
Haze/Clarity Repeatability	≤0.03 (Standard deviation of 30 measurements at 3-second intervals on a standard haze plate with transmittance ~80% and haze ~30, after preheating calibration)
Color Repeatability	Standard deviation ΔE*ab is within 0.03 (Standard deviation of 30 measurements at 3-second intervals on a standard haze plate with transmittance ~80% and haze ~30, after preheating calibration)
Turbidity Resolution	0.1NTU
Turbidity Range	0-1000NTU
Turbidity Accuracy	≤±(5%H+1NTU), H is standard
Pt-Co Resolution	0.1
Pt-Co Range	0-1000
Pt-Co Accuracy	≤±(5%H+1), H is standard
Power Supply	100~277V, 0.4A, 50/60HZ
Display	7 inch 1024*600 dot matrix IPS color screen
Language	Simplified Chinese, English
Data Transmission	USB (Type-C)
Operating Temperature Range	0-45℃, 0-85%RH(no condensation)
Storage Temperature Range	25-55℃, 0-85%RH (no condensation)

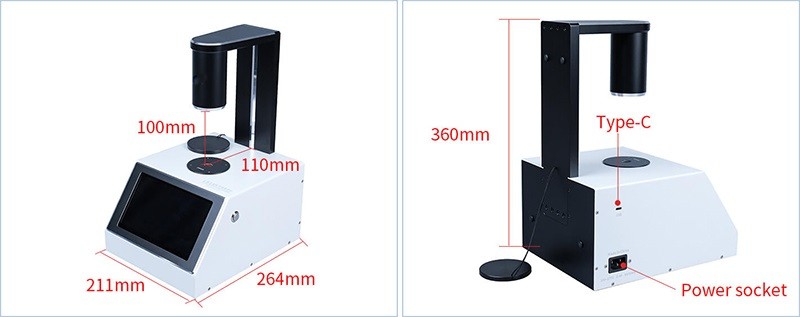

Dimension	211mm×264mm×360mm (LWH)
Weight	5300g
