125 UV Light Meter +UVA-X0 Probe

Product Item : 125
Category： Other
UV Light Meter
UV light measurement
UV meter price
UV radiometer
Product description：UV light meter is a smart host that can support 12 different types of probes. Its main function is data display. The UVA-X0 probe is one of the 12 probes equipped with the 125 host. The probe's spectr
INQUIRY

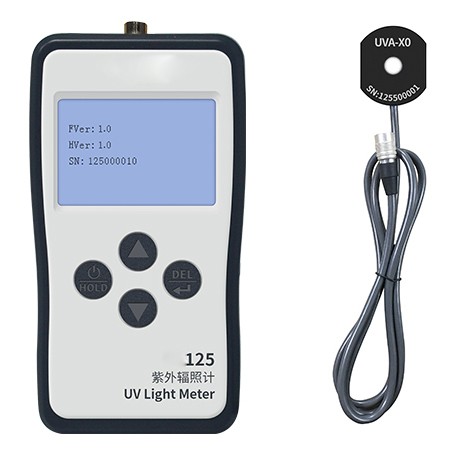

UV light meter is a smart host that can support 12 different types of probes. Its main function is data display. The UVA-X0 probe is one of the 12 probes equipped with the 125 host. The probe's spectral response range is 315nm-400nm, calibrated at 365nm. The UV light meter is suitable for detecting the intensity and energy of high pressure mercury lamps.

UV light meter Technical Data

Spectral Response	315nm-400nm, λp = 365nm
Power Measuring Range	0 - 2000mW / cm²
Resolution	0.1mW / cm²
Energy Measuring Range	0-9999999mJ/cm²
Record Time	0-99999s
Measuring Accuracy(H is the Standard Value)	H<5mW/cm²：±0.5mW/cm² H>=5mW/cm²：±10%H
Sampling Speed	2048 times/second
Unit	mW / cm² (default), W / m²
Test Hole Diameter	Φ=10mm

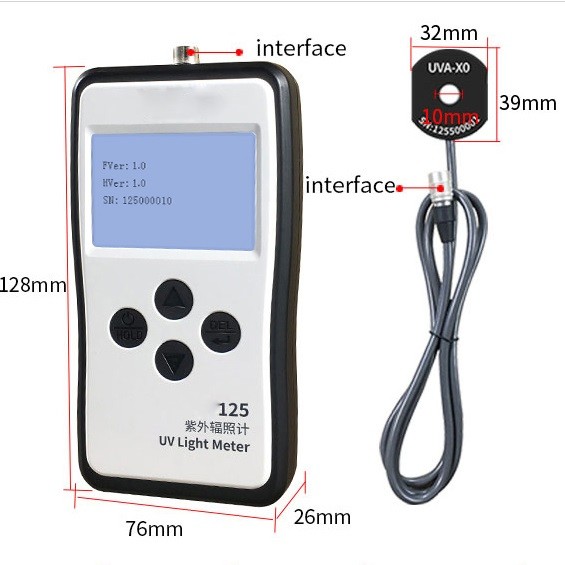

Probe Size	39mm * 32mm * 15mm(LWH)
Packing Box Dimension	24 * 6 * 5 cm (L * W * H)

125 UV Light Meter Main Features

1. Specialized in testing high-pressure mercury lamps, Measure accurately

Suitable for intensity and energy test of 365nm high pressure mercury lamp. Energy and power values can be measured simultaneously. The measurement accuracy is guaranteed by the Chinese National Metrology Institute

2. Intelligent statistics function

The 125 UV radiometer + UVA-X0 probe has rich statistical functions, and the real-time power value, maximum value, minimum value, average value, measurement time and energy value are displayed at the same time.

3. The probe adopts advanced digital probe technology.

All data collection and processing are completed inside the probe and data transmission through digital signals with stronger anti-interference ability can ensure more stable test data. With high-speed acquisition of 2048 times per second, the test data is more accurate.

4. Two measurement units can be switched, namely mW/cm², W/m². Data conversion between different units does not require manual calculation
