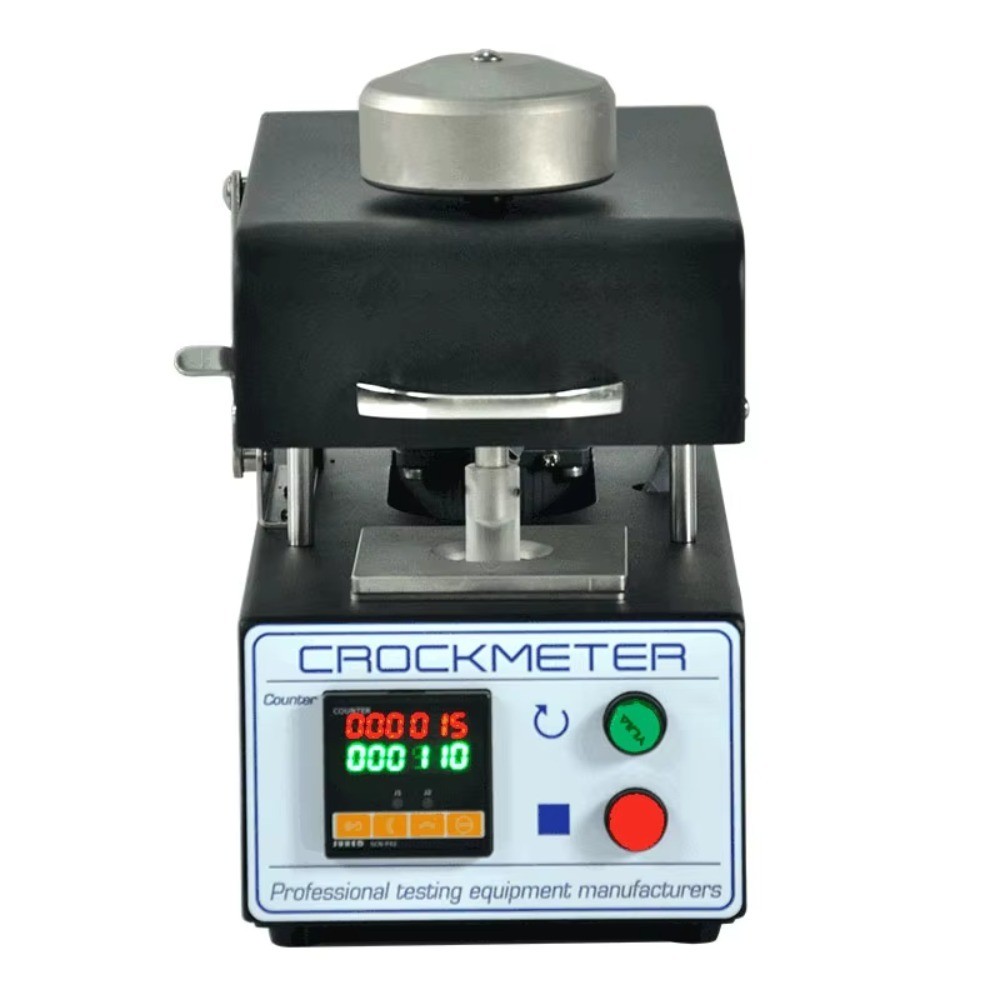

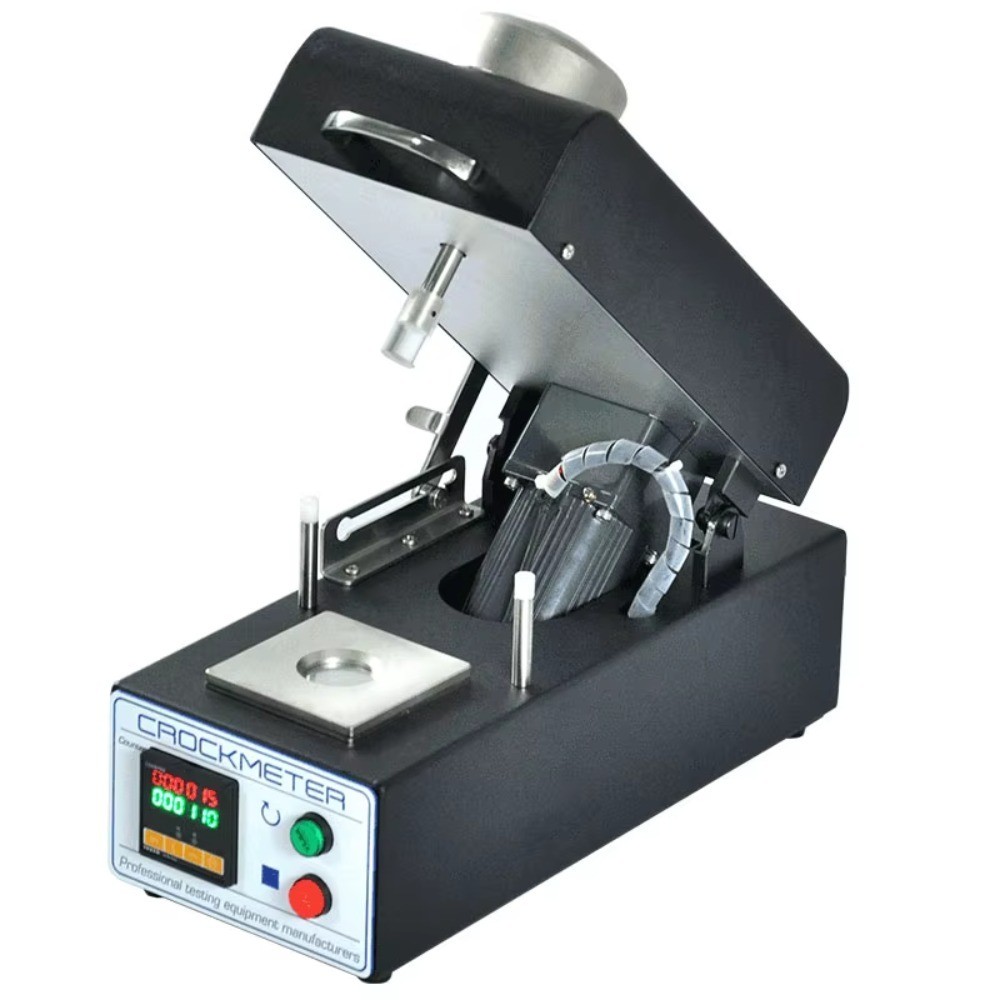

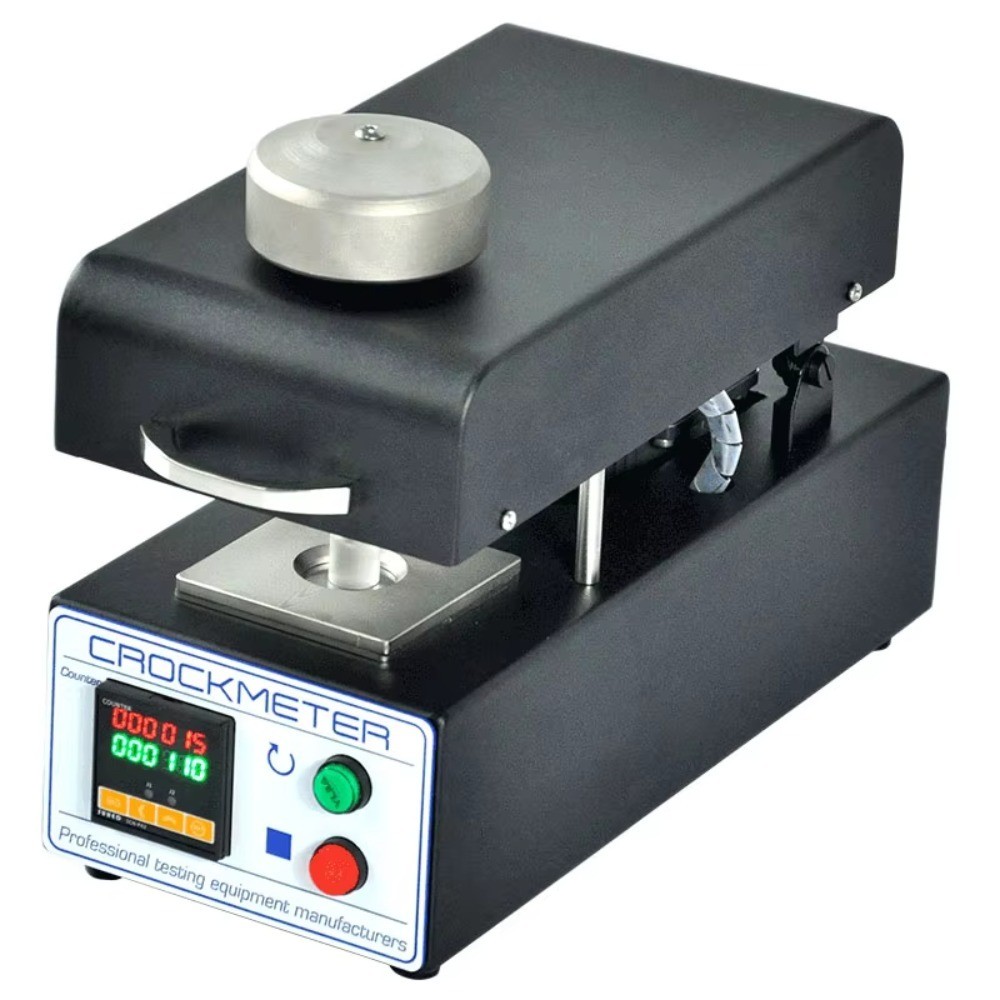

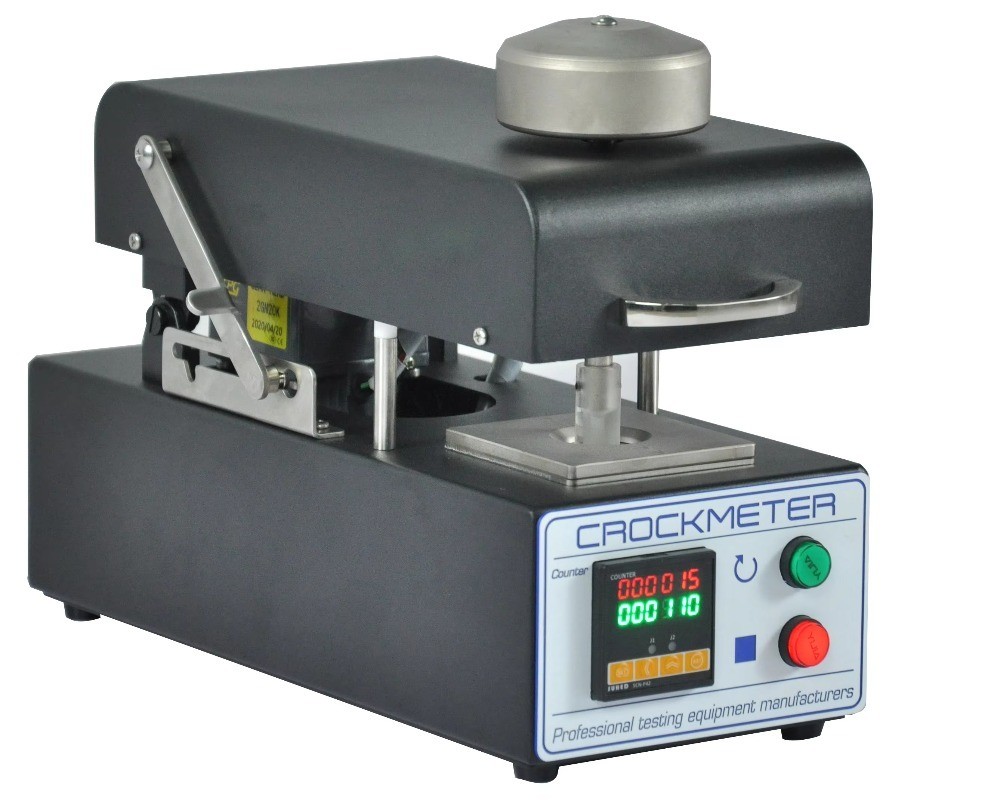

Crockmeter

Product Item : CFT-220
Category： Textile Testing Equipment
Crockmeter
color fastness tester
Product description：The motorized rotary crockmeter determines the color fastness of textiles to dry and wet friction, especially for printer fabrics. Apply 16g of pressure to the 1134mm finger and rotate 1.125 clockwise
INQUIRY

Product Introduction

The motorized rotary crockmeter determines the color fastness of textiles to dry and wet friction, especially for printer fabrics. Apply 16g of pressure to the 1134mm finger and rotate 1.125 clockwise, then counterclockwise. However, the operating handle rotates in only one direction.

Standards

AATCC 116,ISO 105 X16

Technical Data

Sample pressure	1134g
Diameter of the friction head	16 mm
Load	(11.1 ± 0.5) N/40oz ± 10%
Rotation mode	After 1.125 turns, then reverse
Friction table	80 mm x 80 mm
counter	LED 0-999999 can be set
Size:	170 mm x 350 mm x 260 mm
weight	10 kg
Power supply	220V, 50 Hz
