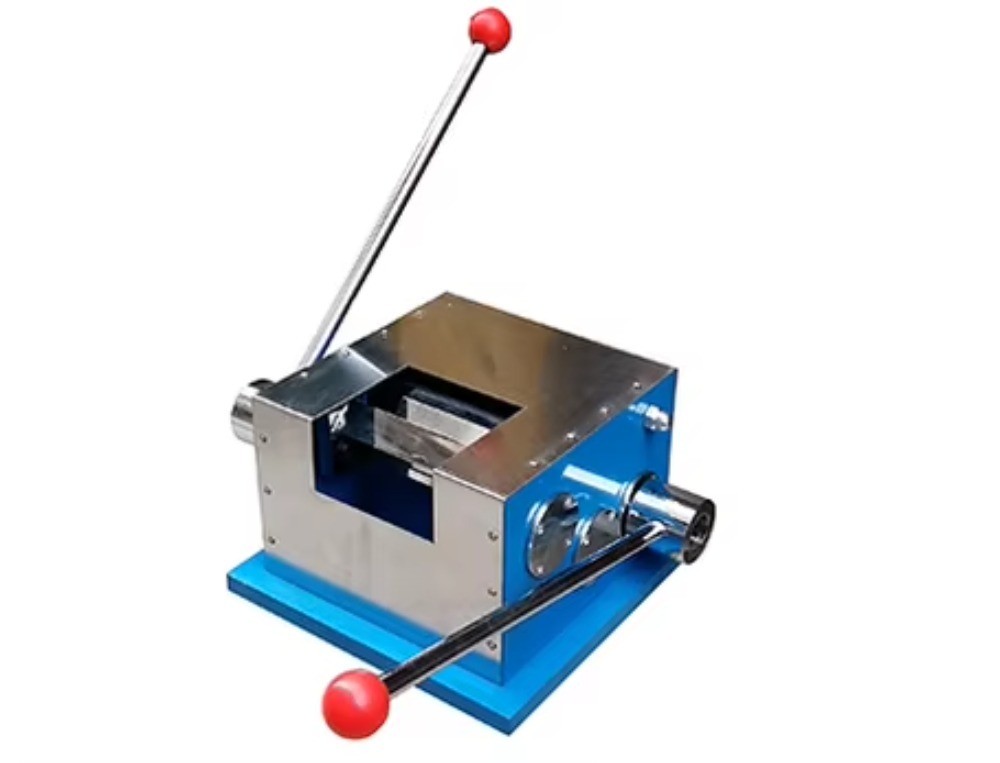

T Bend Tester

Product Introduction

The T-bend tester is specifically designed to determine the flexible-T bending properties of steel plate color coatings. The sample is bent 180° around itself (coated on the outside of the surface), tape with some adhesion is glued to the surface, and then quickly peeled off to see if the paint comes off to determine the flexural properties of the sample. The minimum T bend value without peeling coating at the bend is taken as the final result.

Standard

ASTM D4145

Technical Data

Compressible steel plate: 0.1-1 mm Aluminum plate: 0.1-2 mm

Weight: 50 kg

Shape Size: 300 × 190 mm (LXWXH)
