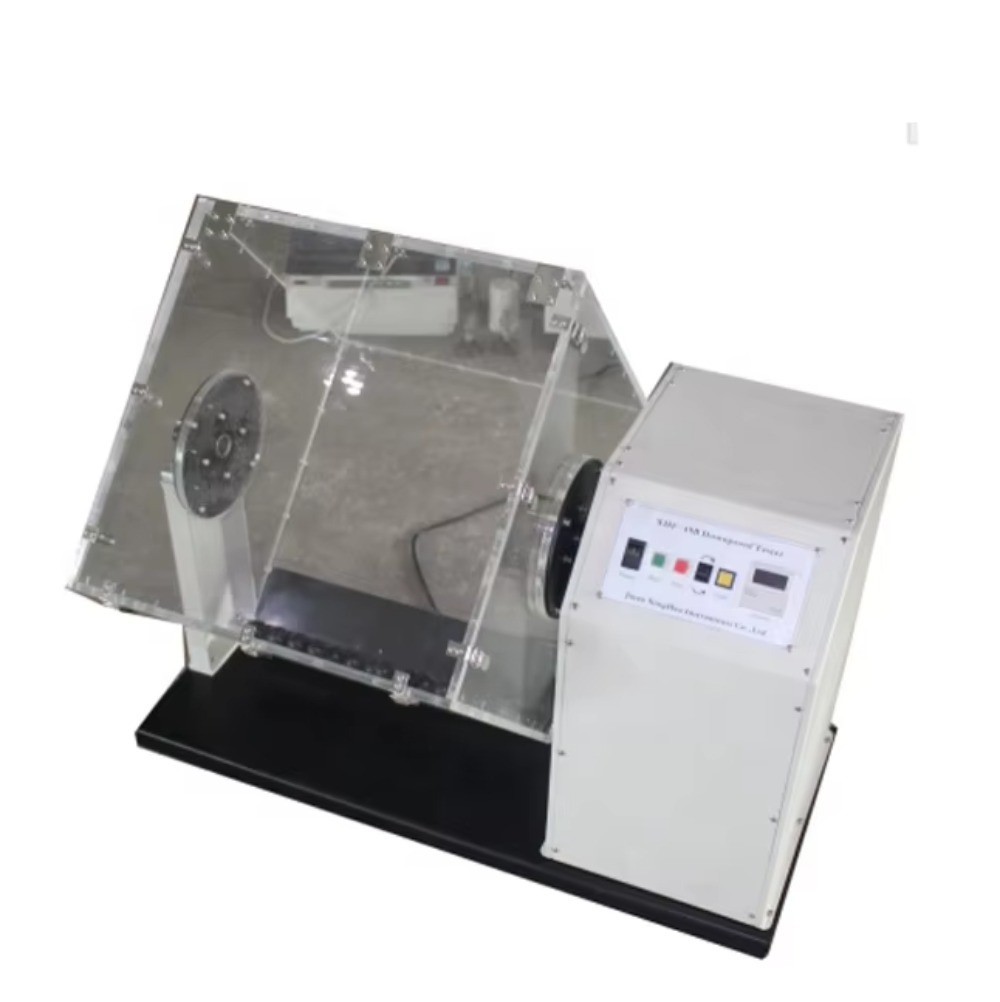

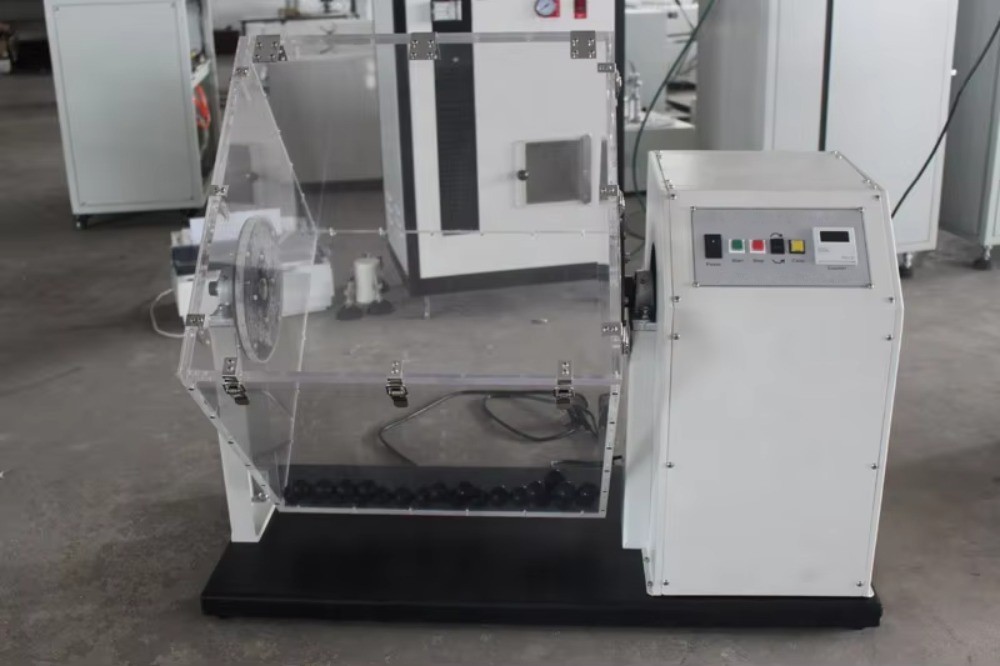

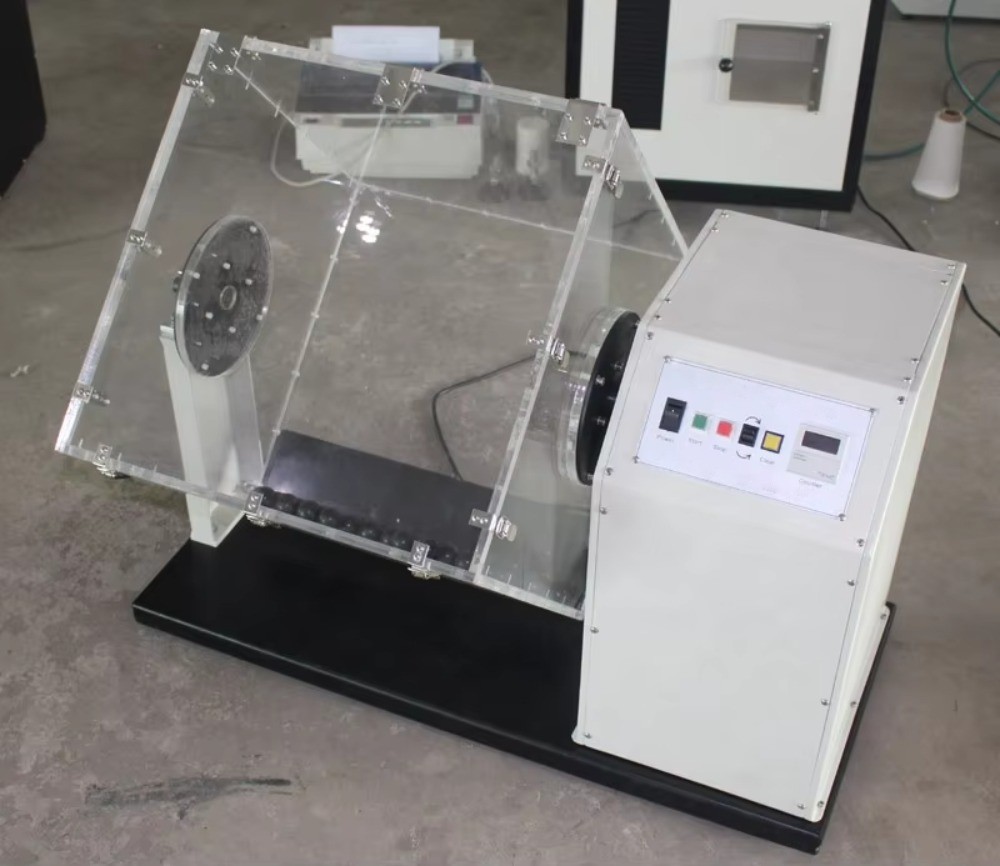

Drop Resistance Testing Instrument

Product Item : ZHIYI-65
Category： Textile Testing Equipment
Drop resistance testing instrument
Product description：Drop Resistance Testing Instrument is designed to test the drop resistance of fabrics. A rotating box that can be rotated forward and reversed, loaded samples and nitrile rubber balls rotate at a spec
INQUIRY

Product Introduction

Drop resistance testing instrument is deisigned to test the drop resistance of fabrics. A rotating box that can be rotated forward and reversed, loaded samples and nitrile rubber balls rotate at a specified speed to simulate the pressing, collision action using feather products. Results were evaluated by counting the number of particles that passed through or protruded from the fabric.

Standards

FTMS T91 5530, IDFL 20-1

Technical Data

Inner box size	457x457x457mm (18")
Rotation speed	48 ± 2 rpm
Count Range	0-9999
Rubber S topper	24 pieces (0.57kg total)
Size:	Size:
weight	75 kg
Power supply	AC 110/220 volts 50/60 Hz
