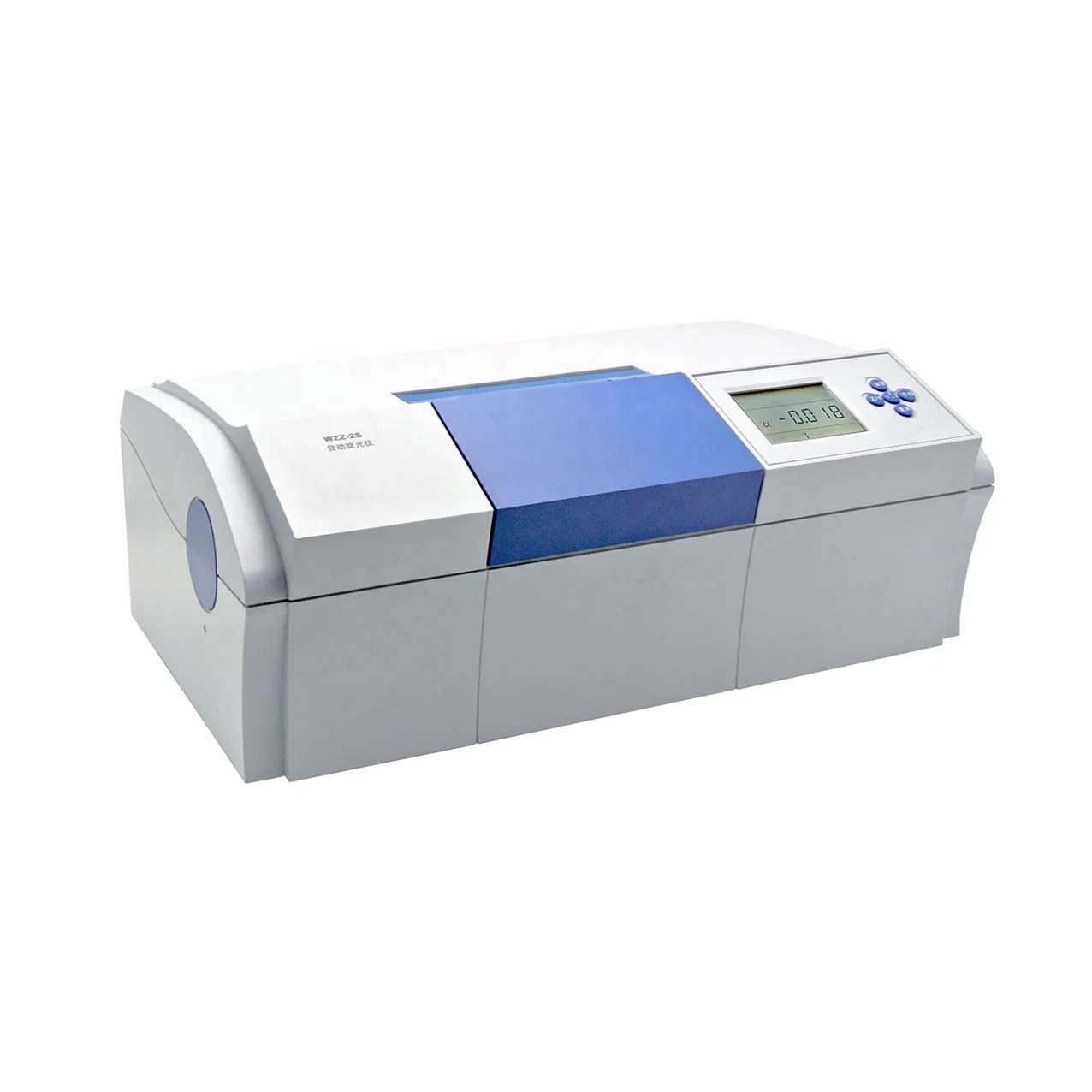

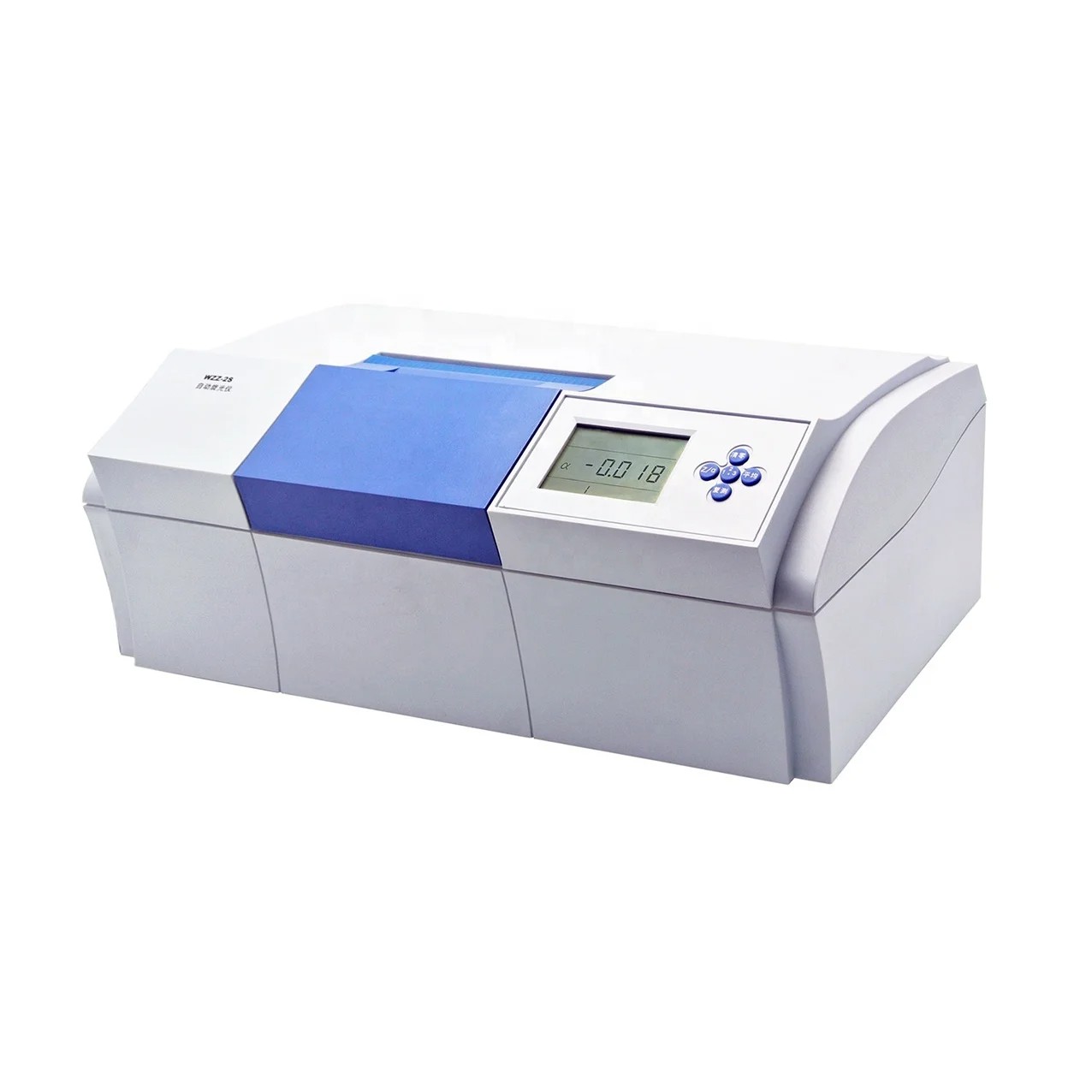

Digital Automatic Polarimeter

Product Item : ZHIYI-DAP2S
Category： Other
Product description：Digital Automatic Polarimeter
INQUIRY

Characteristics

Photoelectric test and microcomputercontrol;
Measuring optical rotation and sugar degree(ZHIYI-DAP2S);
Storage of three times results;
Calculation of average values;
Measurement of dark-colored sample;
RS232.

Specifications

Parameters/Model	ZHIYI-DAP2S	ZHIYI-DAP2B
Measurement modes	Optical rotation, sugar degree	Optical rotation
Wavelength	589nm
Light Source	LED + interference filter
Measurement range	±45°（optical rotation） ±120°Z（sugar）	±45°（optical rotation）
Accuracy	±(0.01+measuring value ×0.05%)°（optical rotation） ±(0.03+measuring value ×0.05%)°Z（sugar）	±(0.01+measuring value ×0.05%)°（optical rotation）
Minimum indicating value	0.001°（optical rotation） 0.01°Z（sugar）	0.002°（optical rotation）
Repeatability	≤0.002°	≤0.01°
sample transmittance	1%	10%
Display	5-inch LCD
Test Tube	100mm/200mm (regular)
Interface	RS232
Weight (Gross)	36kg
Overall Dimensions	730mm×480mm×470mm
