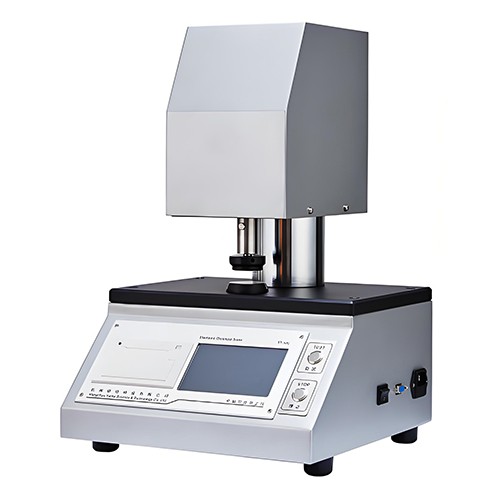

Electronic Thickness Tester

Product Item : TT-200
Category： Textile Testing Equipment
thickness tester
electronic thickness tester
0-10mm thickness tester
Product description：Electronic thickness tester is with measurement range 0-10mm, it can be used to measure the paper, cardboard, textile, plastic film and other materials.
INQUIRY

Electronic thickness tester is with measurement range 0-10mm, it can be used to measure the paper, cardboard, textile, plastic film and other materials.

Electronic Thickness Tester Features

● One-click test, easy to understand

● ARM processor improves the response speed of the instrument, and the calculation is accurate and fast

● The rising and falling speed of the probe can be adjusted

● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.

● Automatic measurement, statistics, and printing of test results

● Communication with computer software (purchased separately)

Electronic Thickness Tester Standards

GB/T 451.3，QB/T 1055，GB/T 24328.2，ISO 534

Electronic Thickness Tester Technical Data

No.	Parameter item	Technical index
1	Power Supply	AC(100～240)V，(50/60)Hz 50W
2	Working Environment	Temperature(10~35)℃, Humidity≤ 85％
3	Display	5 inch color touch screen
4	Measuring range	(0～10)mm
5	Resolution	0.001mm
6	Indication error	±0.003mm or ±0.5％
7	Indication variability	≤0.003mm or ≤0.5％
8	Parallelism between measuring surfaces	≤0.0004mm
9	Contact area	(1000±5) mm²
10	Contact pressure	（2±0.1)kPa
11	Probe descending speed	（0.5～10）mm/s Adjustable
12	Print	Built-in thermal printer
13	Communication Interface	RS232(Default) (USB, WIFI optional)
14	Dimension	325×310×485 mm
15	Net Weight	24kg around
