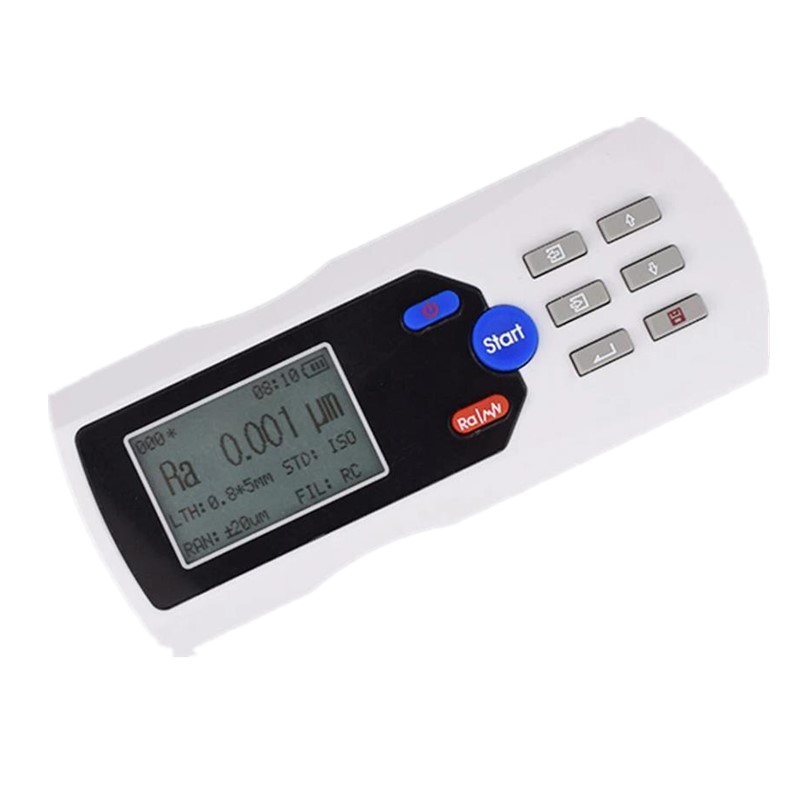

Roughness Tester Profilometer High Precision Digital Surface Roughness Meter Gauge
- Product Item : ZHIYI-0721
- Category： Other
- Product description：Roughness-Tester-Profilometer-High-Precision-Digital-Surface-Roughness-Meter-Gauge
Surface Roughness Tester Meter Roughness Gauge Profilometer 14 Parameters
1.Plastic shell design, compact, light weight, portable, easy to operate;
2.Using DSP chip to control and data processing, high speed, low power consumption;
3.Large measuring range, parameters: Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rku, Rsm, Rmr;
4.Dot matrix LCD display, digital / graphic display;
5.Display information rich, intuitive, can display all the parameters and graphics;
6.Compatible with ISO, DIN, ANSI, JIS national standards;
7.Built-in lithium ion rechargeable battery, charging with DC 5V, 800mA charger or USB charging;
8.Large capacity data memory, can store 100 groups of original data and waveform.
9.With automatic dormancy, automatic shutdown, power saving function and calibration function.
Specification:
Type: ZHIYI-0721 Surface Roughness Meter
Model: RT200
Measuring parameters: Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rku, Rsm, Rmr
Measured profile: Roughness contour, Support curve, Direct contour
Filter: RC,PC-RC,Gauss,D-P
Measuring Range: 160μm (Z Axis) 17.5mm (X Axis)
Measuring Precision: 0.001μm
Measuring force: 0.4mN
The sampling length: 0.25mm,0.8mm,2.5mm
Evaluation length: 1-5L
Internal storage capacity: 100 groups of original data
External input / output interface: USB
Electric source: Built-in rechargeable lithiumion battery or external power adapter
Working temperature: -20°C~40°C
Working humidity: <90%RH
Size:140 x 52x 48mm (host)
Weight: 440g (host)
