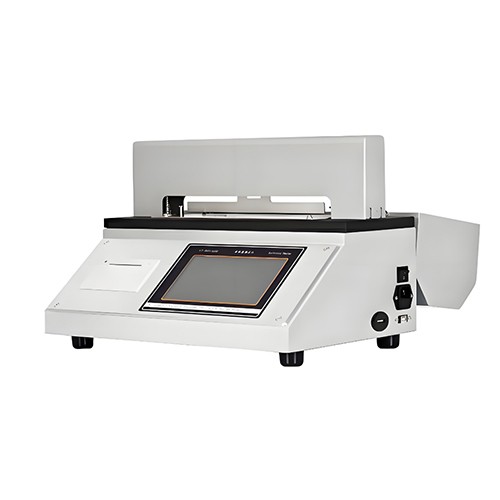

Fabric Stiffness Tester

Product Item : FST-300
Category： Products
Fabric Stiffness Tester
Stiffness Tester
Product description：The fabric stiffness tester is a new type of high-precision intelligent tester that is carefully and reasonably designed using modern mechanical design concepts and microcomputer processing technology
INQUIRY

The fabric stiffness tester is a new type of high-precision intelligent tester that is carefully and reasonably designed using modern mechanical design concepts and microcomputer processing technology. It is an ideal experimental equipment for industries and departments such as paper making, scientific research and quality inspection.

Fabrics Stiffness Tester Application

Toilet paper, tobacco sheet, fiber fabric, non-woven fabric, cloth, film, etc.

Fabrics Stiffness Tester Features

● One-button test, simple and easy to understand.

● ARM processor improves the response speed of the instrument and calculates data accurately and quickly

● Real-time display of pressure curve.

● Sudden power failure data saving function, the data before power failure is retained after booting and the test can be continued.

● Software and hardware over-range to ensure the safety of sensor use.

● Test data supports USB export.

● The system and screen software both support upgrading via network or USB.

● Support multiple communication methods, online software (purchased separately) can communicate via WIFI or USB.

● Test data supports uploading to cloud server, cooperate with QMS paper quality management system (purchased separately), real-time monitoring of paper inspection data.

Fabrics Stiffness Tester Standards

GB/T8942，QB/T1060，GB/T4156

Fabrics Stiffness Tester Technical Data

No.	Parameter Item	Technical indicators
1	Power supply	AC(100～240)V，(50/60)Hz,50W
2	Working environment	Temperature (10～35)℃, relative humidity ≤85%
3	Display	7-inch IPS high-definition screen, 1024*600 resolution capacitive touch
4	Measuring range	(10～3000)mN
5	Resolution	0.1mN
6	Indication error	±1％(Range 5%～100%)
7	Total probe stroke	(12±0.5）mm（adjustable）
8	Probe indentation depth	8mm
9	Test speed	72±0.72 mm/min（1-250 mm/min adjustable）
10	Sample table gap width	5/6.35/10/20mm(adjustable in four gears)
11	Slit parallelism error	≤0.05mm
12	Probe centering error	≤0.05mm
13	Data storage	50 test data
14	Data export	Export data to USB flash drive
15	Print	Built-in thermal printer
16	Communication interface	USB、WIFI（2.4G）
17	Dimensions	425×290×305 mm
16	Net weight	20kg
