Fabric Flammability Test Equipment

Product Item : FRT-820
Category： Textile Testing Equipment
Flammability Test Equipment
Product description：The vertical fabric flammability test equipment is used to test the flame retardant, flame retardant and carbonization trend after fabric. It can automatically determine the flammability of clothing f
INQUIRY

Product Introduction

The vertical fabric flammability tester is used to test the flame retardant, flame retardant and carbonization trend after fabric. It can automatically determine the flammability of clothing fabrics, protective fabrics, curtains, and children's pajamas to vertical flames.

Standards

ASTM D6413, GB/T 5455, 16CFR Part 1515/1516, CA TB117, CPAI-84

Features

1. Controlled by PLC, operated by high-resolution large color touch screen.
2. The combustion chamber is made of high-quality 304 stainless steel, clean tempered glass.
3. The flame height can be adjusted by knob

Technical Data

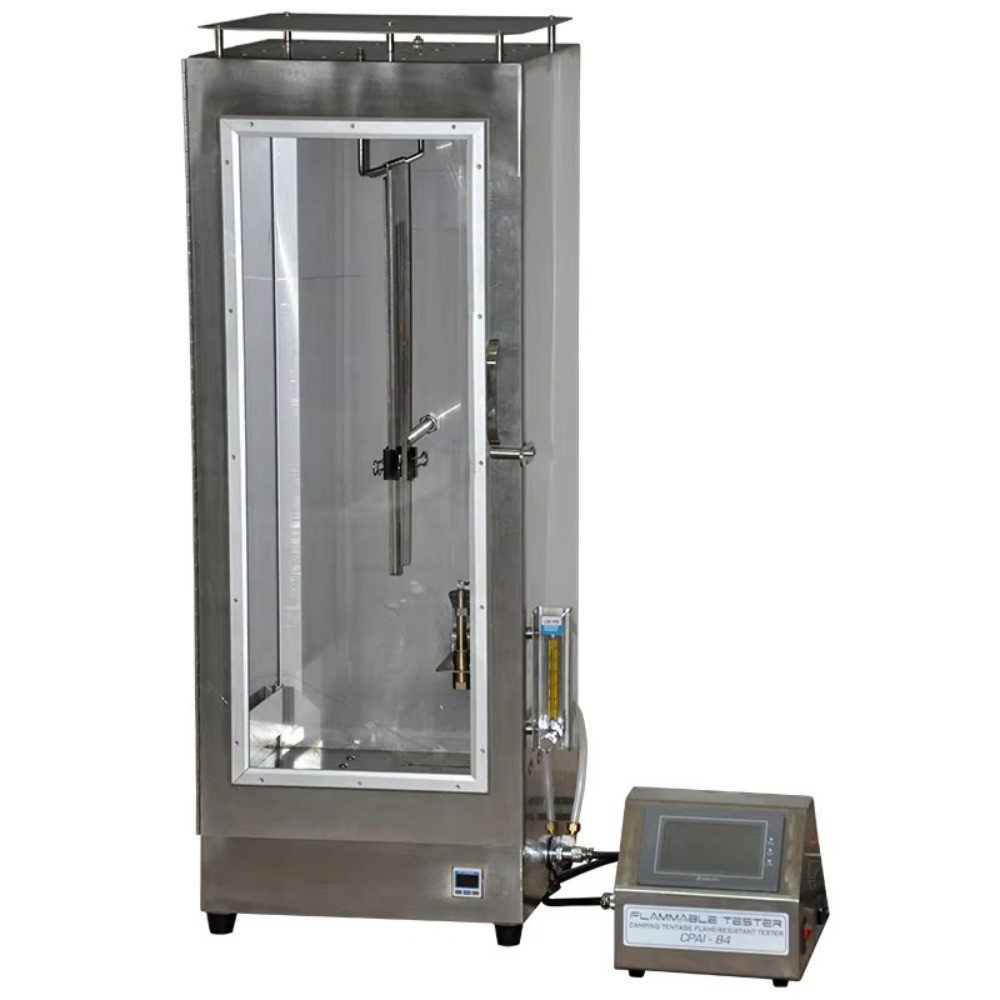

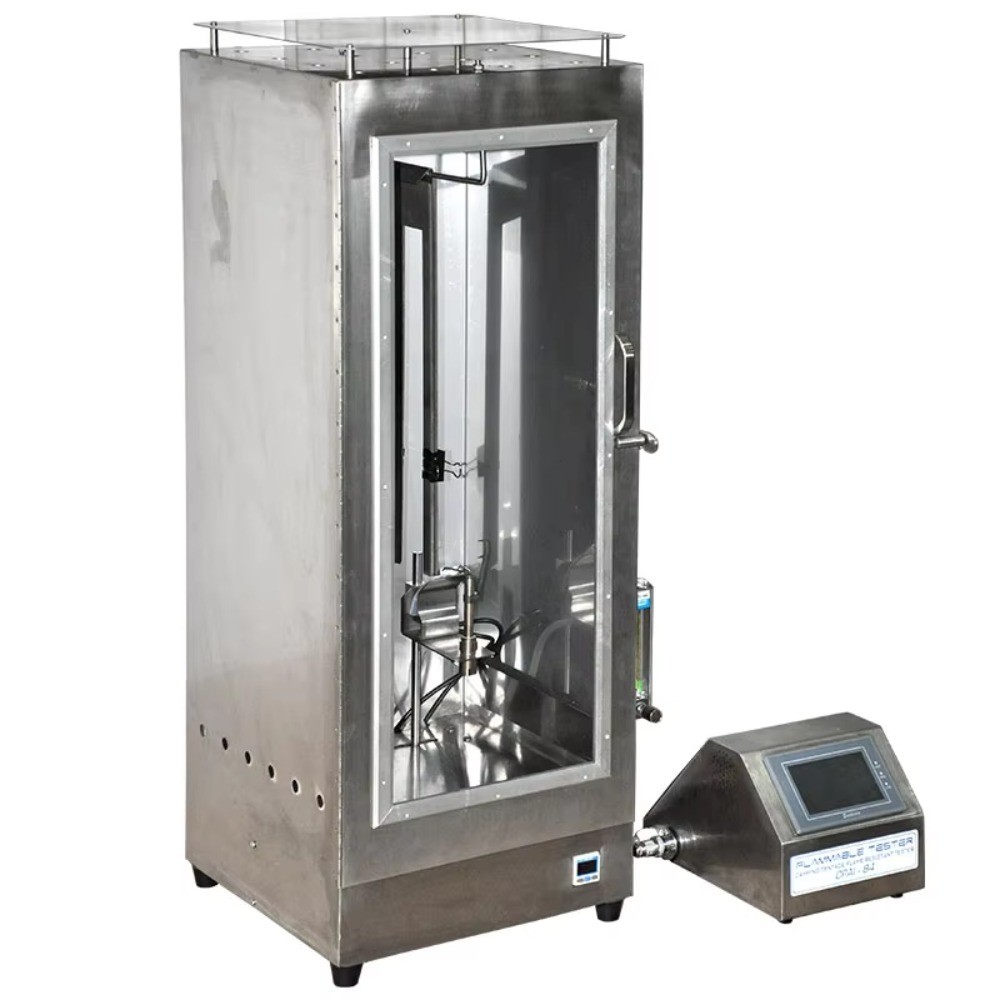

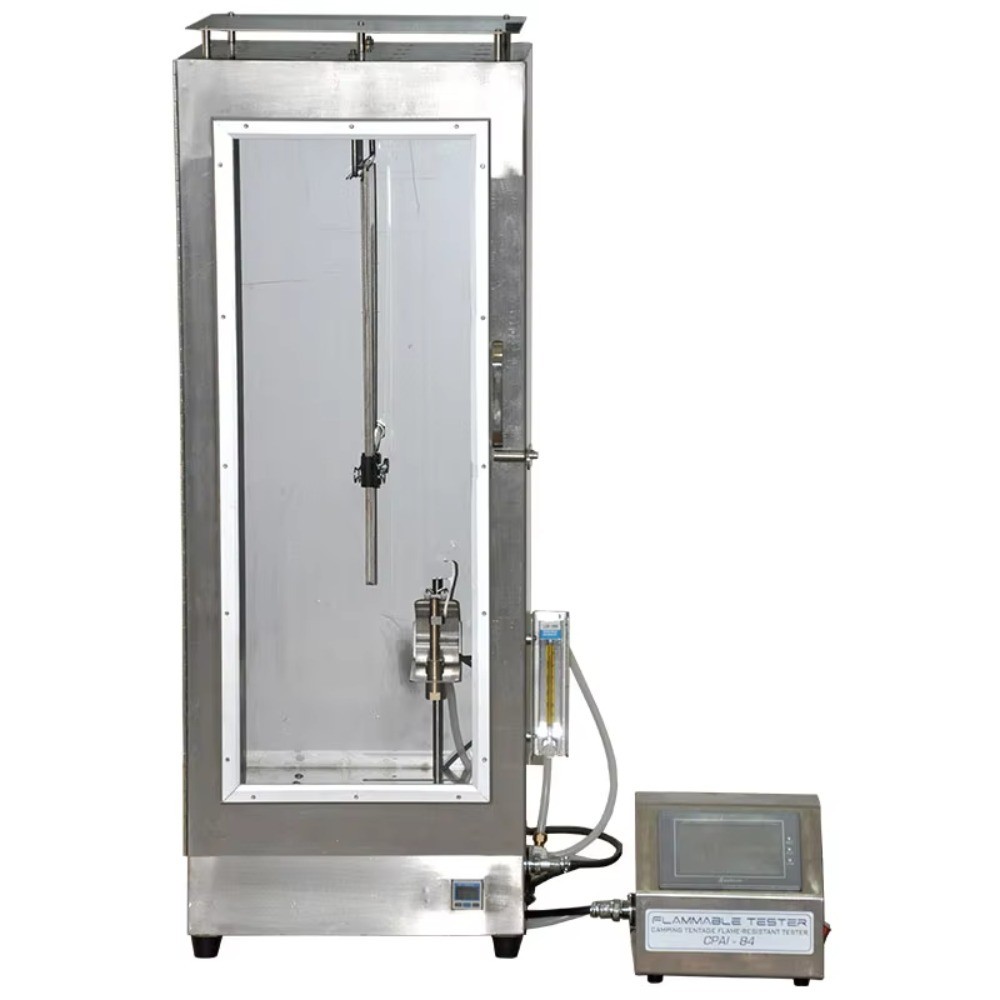

Product Pictures

Type	T	S	P
Standard	American Materials Testing Standard D6413	GB/T 5455, 16 CFR Part 1515/1516, CA TB117	CPAI-84
Time range and precision	0-999.9S, resolution 0.1S
Ignition time	12S (Adjustable)
Flame height	38mm (adjustable)	40 +/-2 mm (adjustable)	19 mm / 38 +/-3 mm (adjustable)
Tear weight	100g/200g/300g/475g	54.5g/113.4g/226.8g/ 340.2g/453.6g	50g/100g/200g/350g
Size:	600x400x850mm		470x370x860 mm
weight	40 kg
Power supply	110V/220V，50Hz/60Hz
