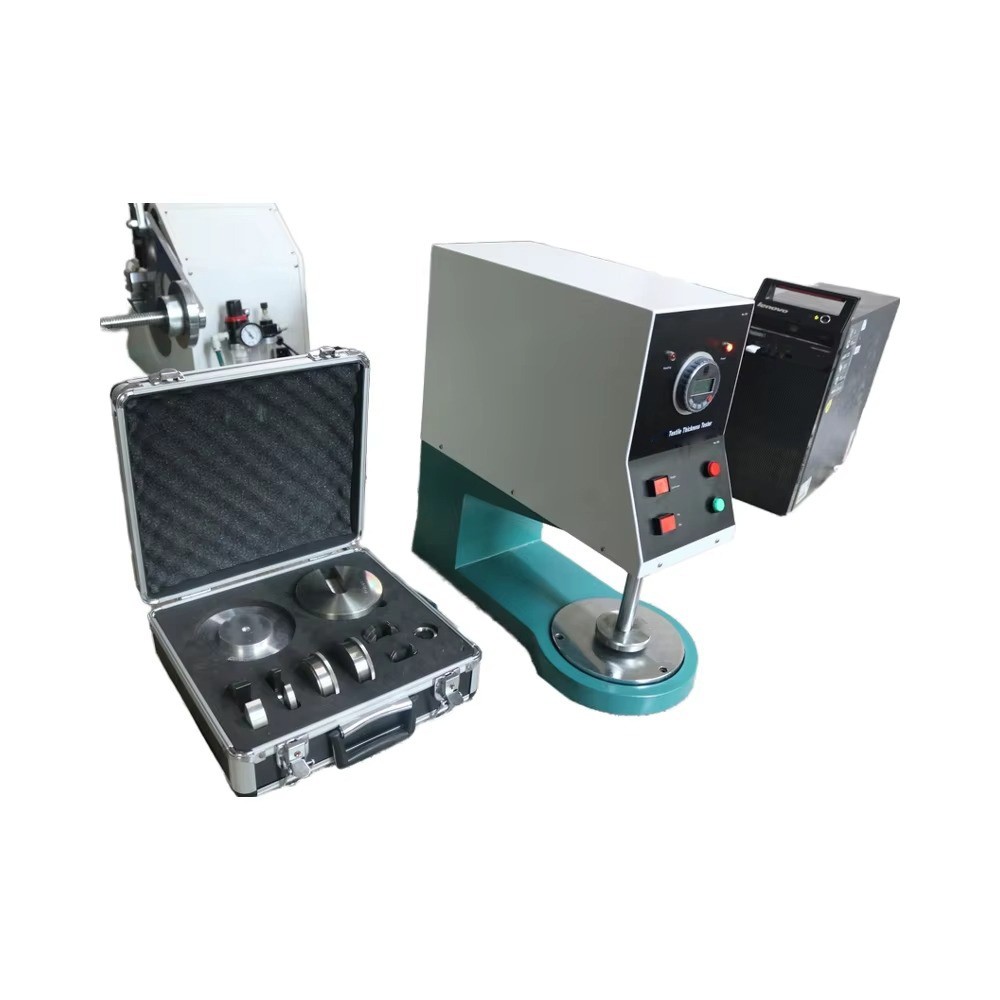

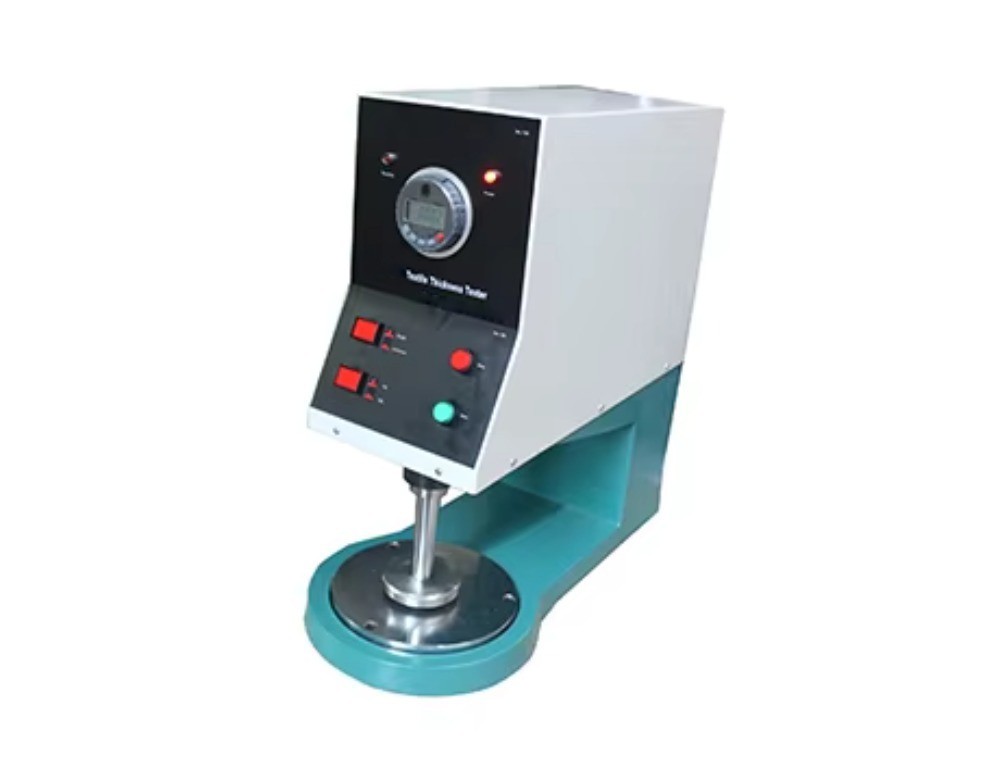

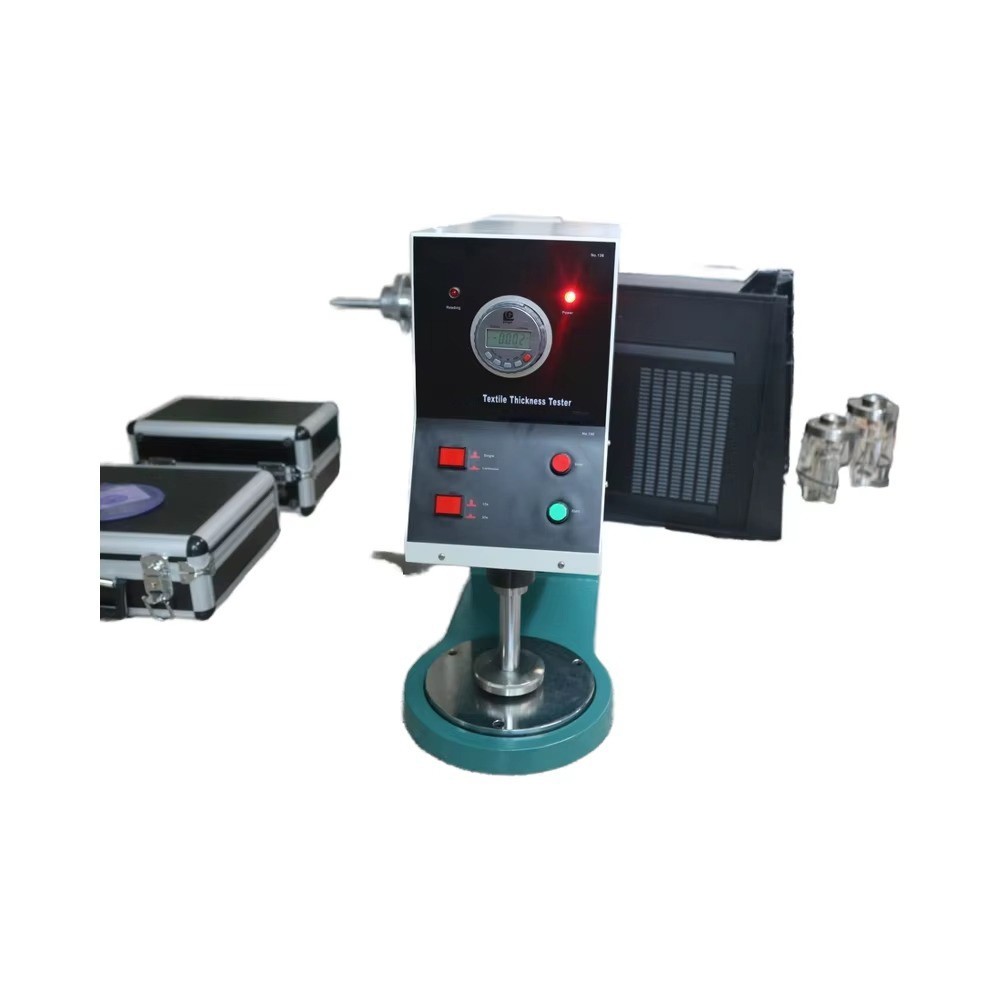

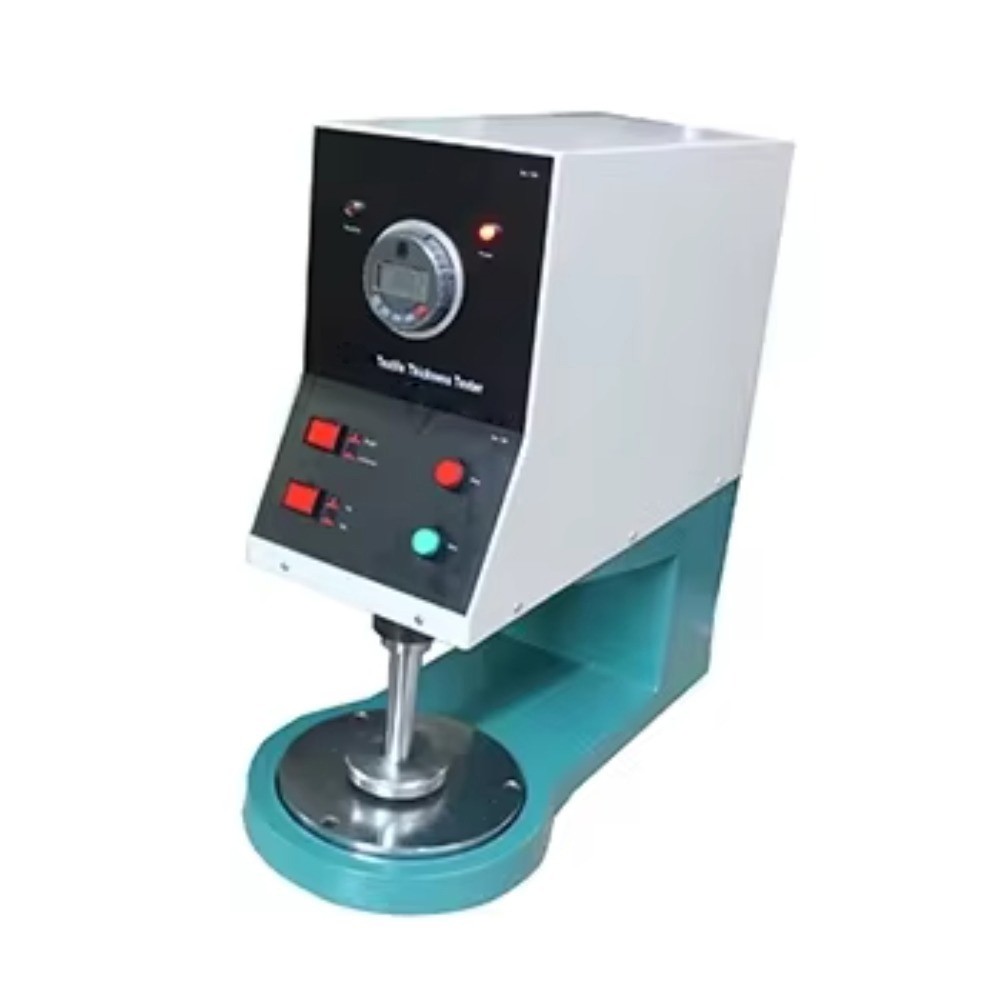

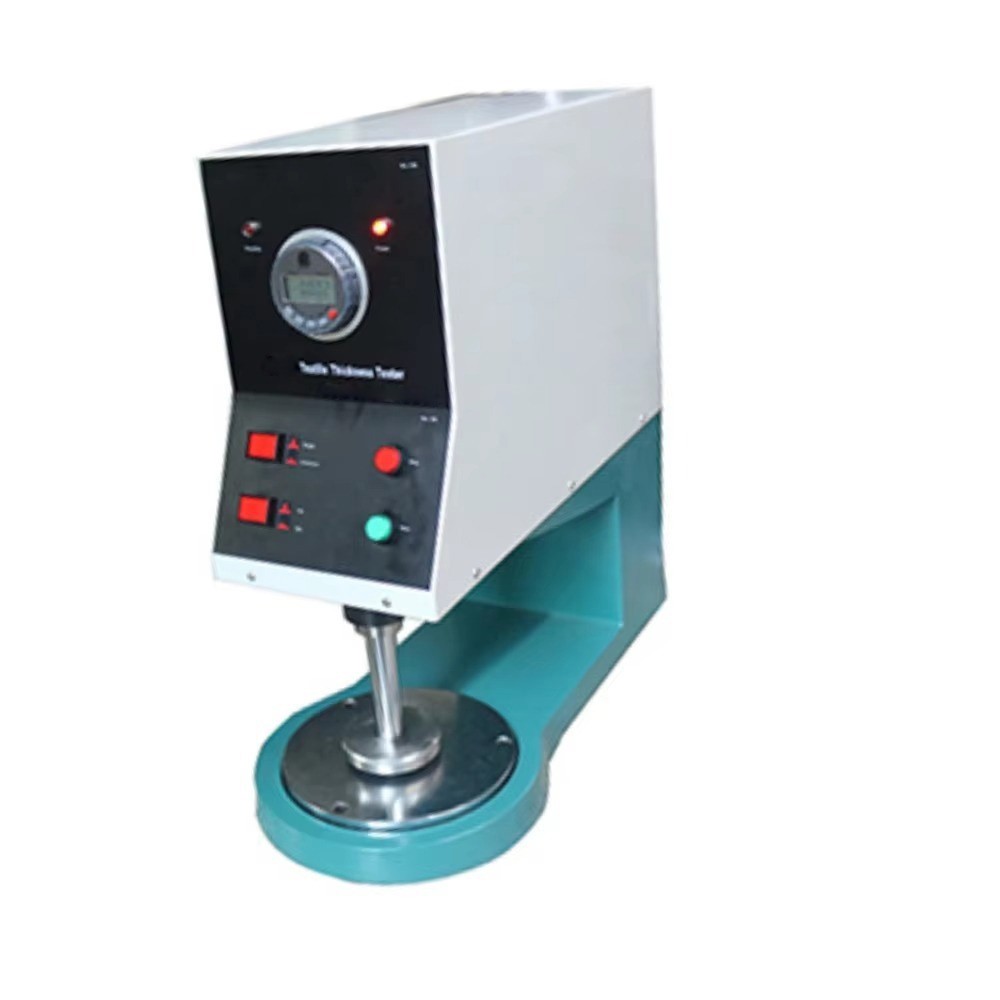

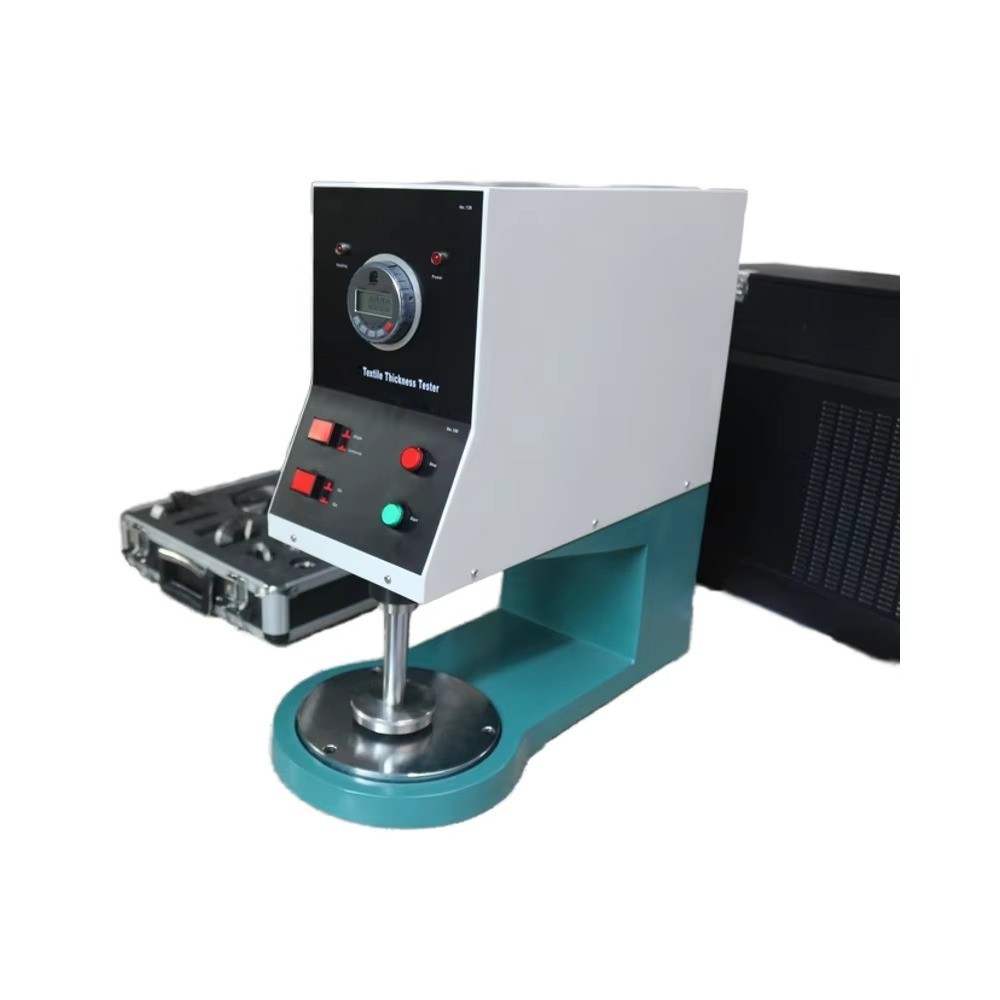

Thickness Measurement Tester

Product Item : TT-190
Category： Paper, Packaging & Print
Thickness Measurement Tester
Thickness Tester
Thickness meter
Product description：The Digital Textile Thickness Tester is suitable for measuring the thickness of tissue paper, woven, knitted fabrics, non-woven fabrics and other uniform materials.
INQUIRY

Product Introduction

The Digital Textile Thickness Tester is suitable for measuring the thickness of tissue paper, woven, knitted fabrics, non-woven fabrics and other uniform materials.

Standards

ISO5084，FZ/T60004，ISO9073，ISO 9863

Technical Data

Thickness range	0.001-25 mm
Measurement resolution	0.001 mm
Presser foot diameter	11.28 mm, 50.48 mm, 56.42 mm, 112.84 mm
Presser foot area	100 sq.m., 2,000 sq.m., 2,500 mm, 10,000 sq.m
By time	10 seconds, 30 seconds
Size:	210x450x400mm mm
weight	30 kg
Power supply	AC110V/220V，50Hz/60Hz
