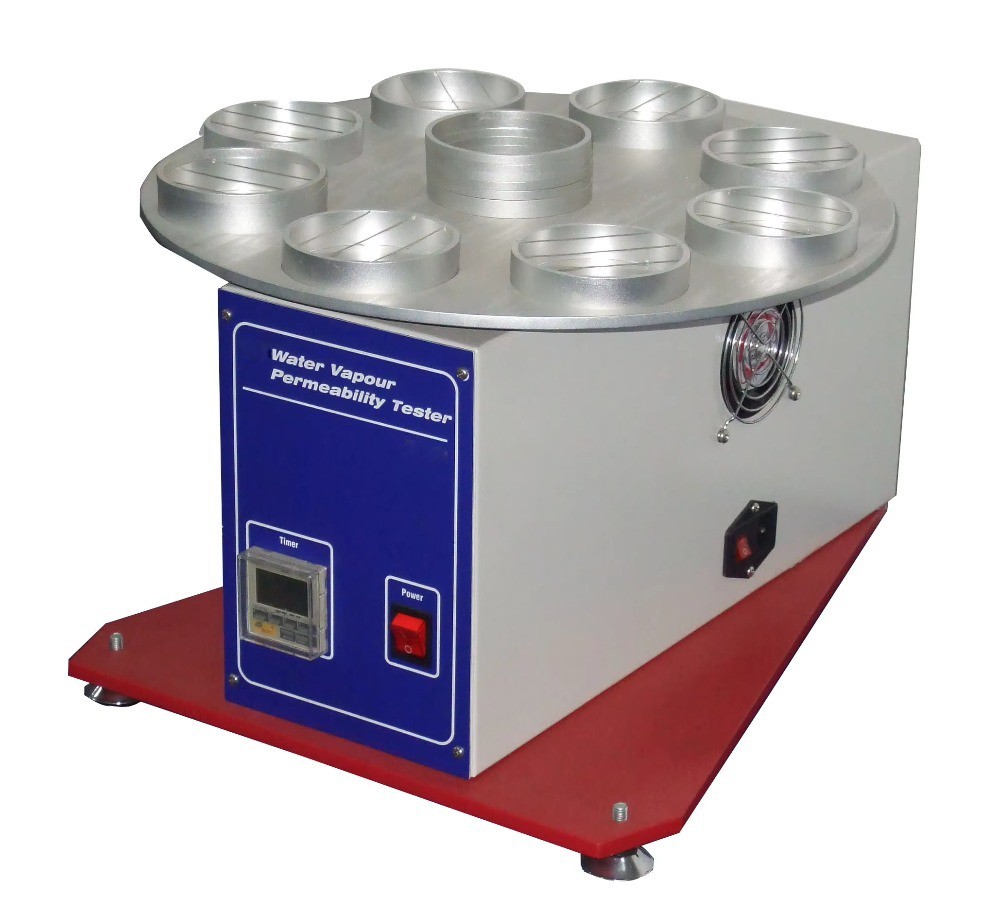

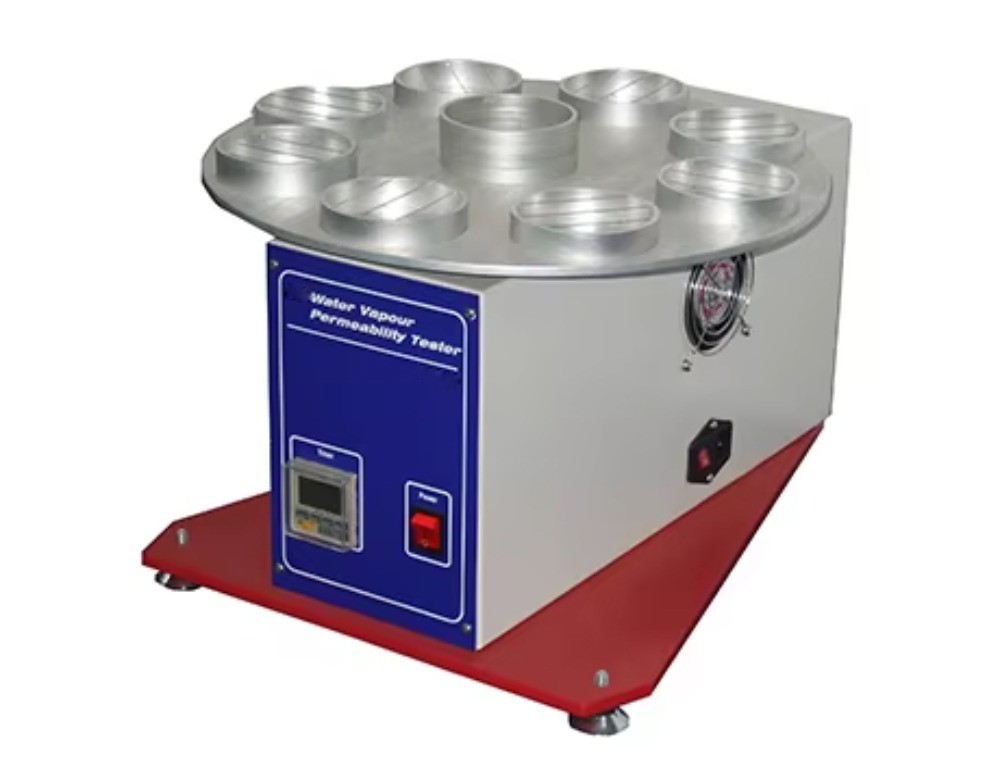

Water Vapor Permeability Measuring Machine

Product Item : PC-1000
Category： Textile Testing Equipment
Water Vapor Permeability Measuring Machine
Product description：Water vapor permeability tester for the determination of moisture permeability of textiles and textile composites, especially sportswear fabric to water vapor penetration. The water vapor permeability
INQUIRY

Product Introduction

Water vapor permeability tester for the determination of moisture permeability of textiles and textile composites, especially sportswear fabric to water vapor penetration. The water vapor permeability tester consists of 8 containers with water tanks, standard permeable fabric lids, sample retention rings, and precision drive systems.

Standards

BS 7209, BS3424

Technical Data

specimen	8 pieces, diameter: 96 mm
Container Inner Diameter: Diameter:	83mm, Depth: 18.5mm
Container weight: 120-150 g/set	120-150g/group (with water)
cutlery	Aluminum, PCD 305mm
Rotational speed	Approx. 2 rpm
Test time	configurable
counter	LCD display, 0-9999h (random setting)
Size:	440mmx530x330mm
weight	28 kg
power	110/220 volts, 50/60 Hz
