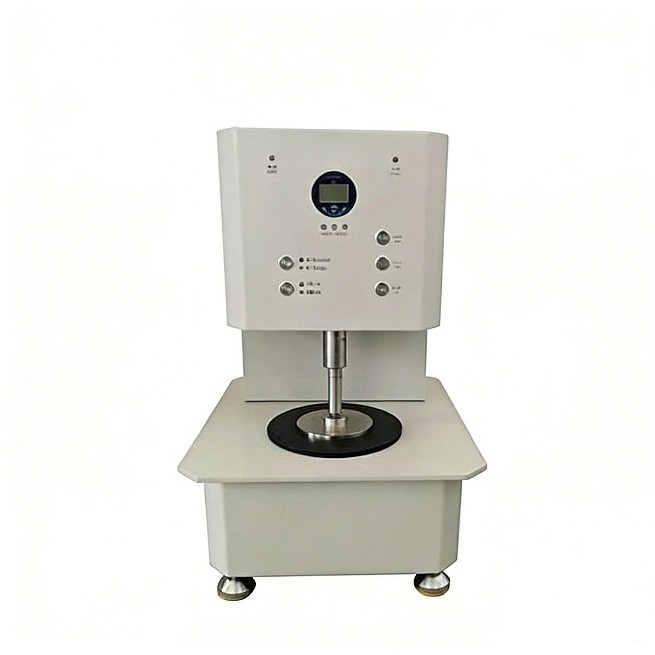

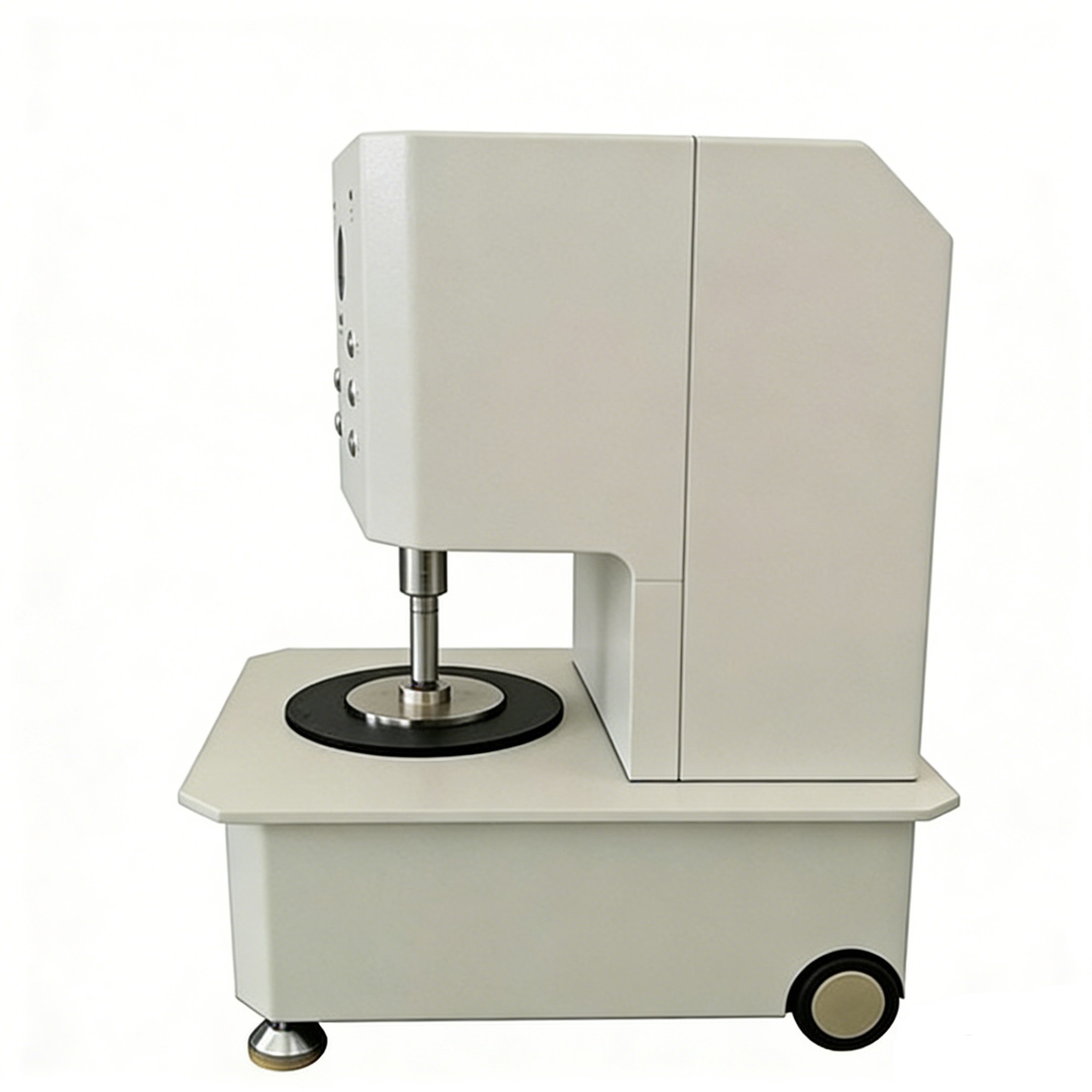

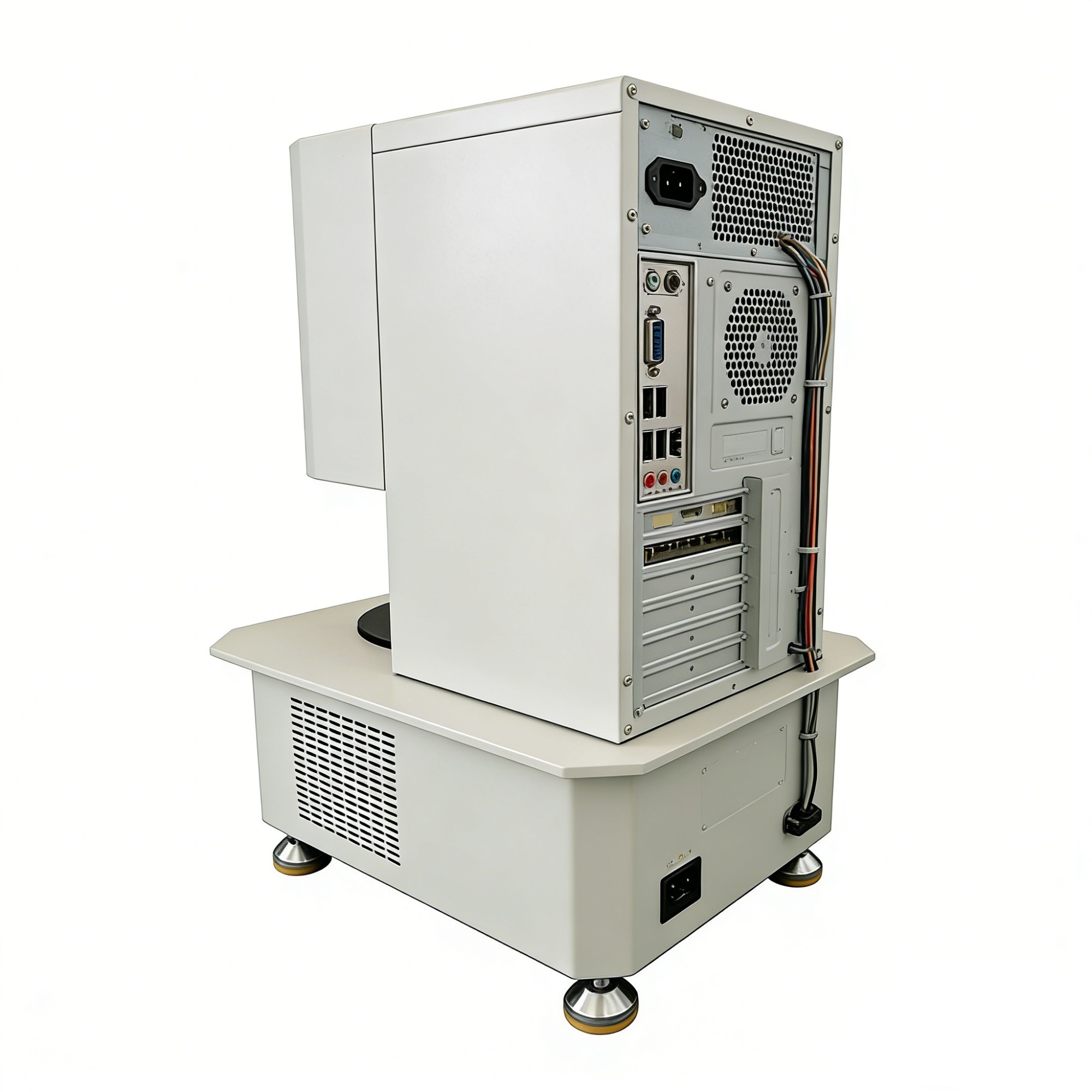

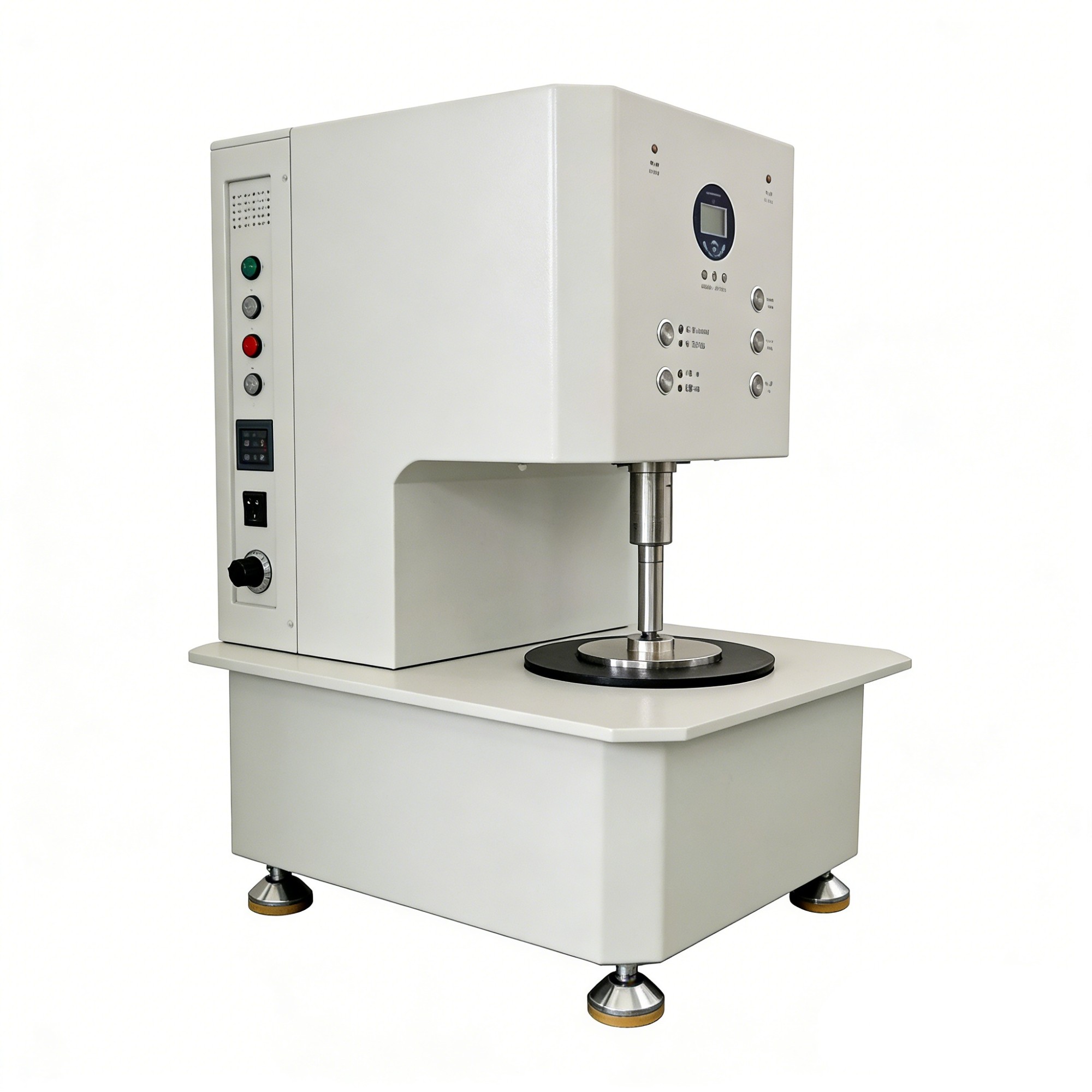

Fabric Thickness Tester

1. Application Scope

This thickness tester can be widely used for measuring the thickness measurement of various materials such as woven fabrics, knitted fabrics and non-woven fabrics, film, paper and some other materials.

Basic applications:

• Thickness test of films, sheets and diaphragms
• Thickness test of paper and paperboard
• Thickness test of foils and silicon wafers
• Thickness test of metal sheets
• Thickness test of textile materials
• Thickness test of solid electrical insulators
• Thickness test of non-woven materials (e.g. diapers, sanitary napkin sheets)

Measuring range can be extended to 5 mm and 10 mm, suitable for thickness measurement of sheets, plates and special requirements.

2. Compliance Standards

GB/T 3820; FZ/T 60004; FZ/T 60003; ISO 5084, 9073; ASTM D1777

3. Product Features

1). Adopts contact measurement method, strictly complies with standard requirements, effectively ensuring standardization and accuracy.

2). Contact area and measuring pressure are designed in strict accordance with standards; various non-standard customizations are supported.

3). Automatic lifting of measuring head during testing, effectively avoiding errors caused by human factors.

4). Supports both automatic and manual measurement modes for flexible operation.

5). Displays real-time analysis data: maximum value, minimum value, average value and standard deviation.

6). Equipped with standard gauge blocks for system calibration to ensure accuracy and data consistency.

4. Technical Parameter
