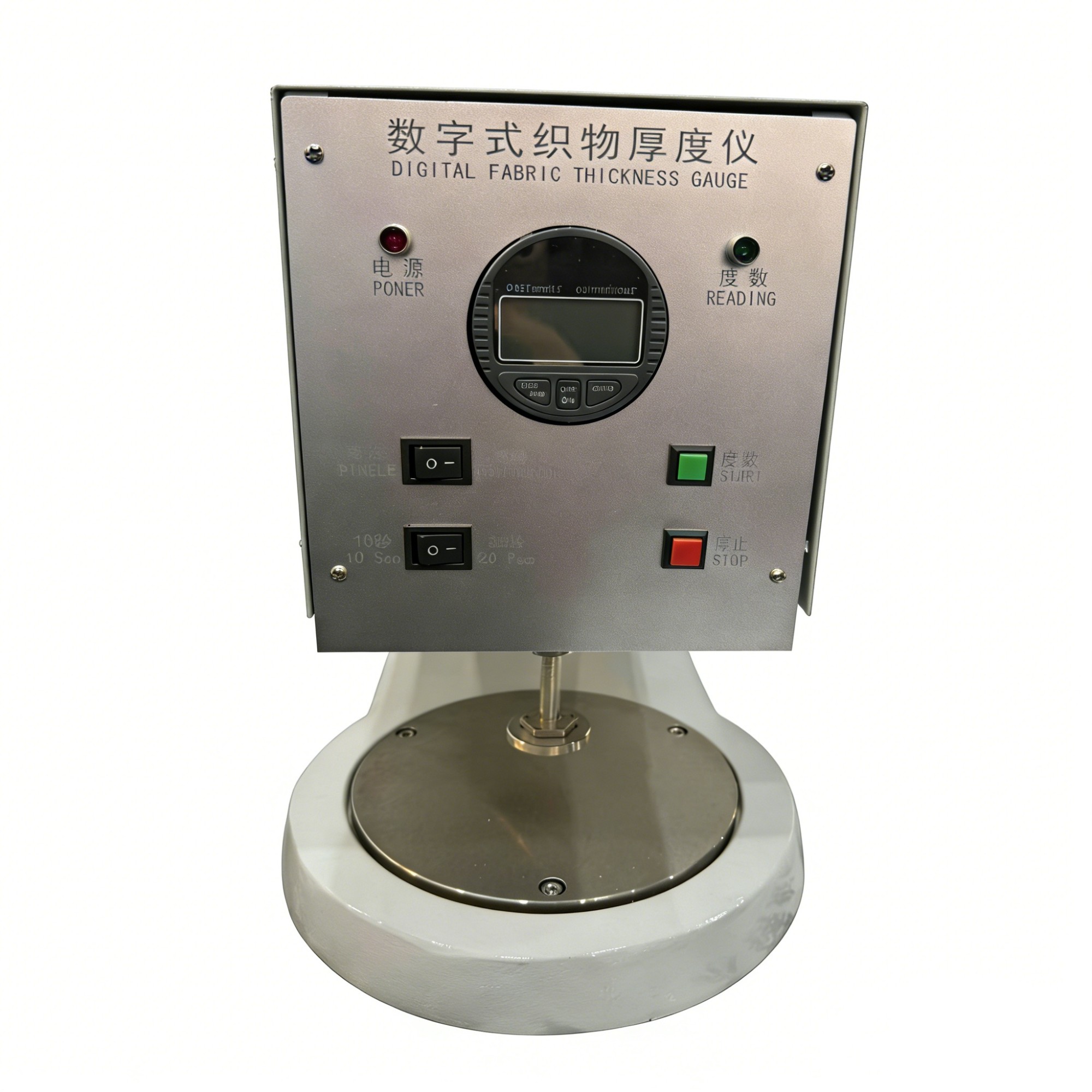

Thickness Measurement Gauge

Product Introduction

This instrument is used to measure the thickness of textiles and textile products. It is suitable for measuring the thickness of various woven fabrics and knitted fabrics, and can also be used to measure the thickness of other uniform thin materials. It is an essential testing instrument for cotton weaving, knitting, bed sheet, handkerchief, paper making and other industries.

Standards

GB/T 3820-1997 Determination of thickness of textiles and textile products

Corresponding standards for textile and non-woven fabric thickness measurement such as EN, DIN, ASTM.

Technical Data

• Measuring thickness range: 0.01mm ~ 10mm
• Minimum division value: 0.01mm / 0.001mm
• Presser foot area: 100mm², 2000mm², 2500mm², 10000mm²
• Presser foot diameter: 11.28mm, 50.46mm, 56.42mm, 112.84mm
• Pressure weights: 25cN, 50cN, 100cN, 200cN (4 pieces in total)
• Pressure holding time: 10s, 30s (2 adjustable levels)
• Measuring speed: 2.1 times/min at 10s pressure; 1.2 times/min at 30s pressure
• Power supply: AC 220V, 50Hz
• Dimensions: 410×160×300mm (L×W×H)
• Net weight: approx. 25kg
