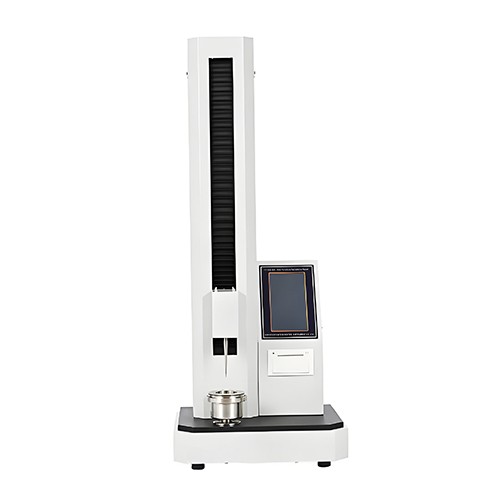

Film Puncture Resistance Tester

Product Item : PRT-100
Category： Film Physical Performance
Film Puncture Resistance Tester
Puncture Resistance Tester
Product description：The Film Puncture Resistance Tester is an instrument developed by our company for measuring the puncture strength of plastic films and thin sheets. The instrument has stable test data and is easy to o
INQUIRY

The Film Puncture Resistance Tester is an instrument developed by our company for measuring the puncture strength of plastic films and thin sheets. The instrument has stable test data and is easy to operate, making it an ideal testing tool for film manufacturers and technical supervision departments.

Film Puncture Resistance Tester Application

Plastic film, plastic sheet

Film Puncture Resistance Tester Features

● Ball screw, three guide shaft, smooth and accurate transmission.

● Cotex-M4 ARM processor, imported 24-bit analog-to-digital converter, fast control, accurate calculation data fast.

● Real-time display of tension and deformation curve.

● Data saving function after sudden power failure. Data before power failure can be retained and tested.

● Has data memory and overload protection functions.

● Test data can be exported from USB flash drive.

● The system and screen software can be upgraded through the network or USB flash drive.

● Supports a variety of communication methods, online software (purchased separately) can be WIFI or USB communication.

● Test data can be uploaded to the cloud server, and cooperate with the QMS paper quality management system (purchased separately) to monitor the paper test data in real time.

Film Puncture Resistance Tester Technical Data

NO.	Parameter items	Technical Indicators
1	Power supply	AC(100～240)V，(50/60)Hz，100W
2	Working environment	Temperature: (10~35)°C, relative humidity ≤85%
3	Display	7-inch IPS high-definition screen, 1024*600 resolution capacitive touch
4	Measuring range	(0-100)N
5	Resolution	0.01N
6	Indication error	±0.5% (range 5%~100%)
7	Repeatability	≤0.5%
8	Probe stroke	300mm
9	Test speed	50 ±5 mm/min （1-500mm/min continuously adjustable)
10	Data storage	50 test data
11	Data export	Export data to USB flash drive
12	Print	Built-in thermal printer
13	Communication interface	USB、WIFI (2.4G)
14	Dimensions	400×320×990 mm
15	Net weight	43 kg
