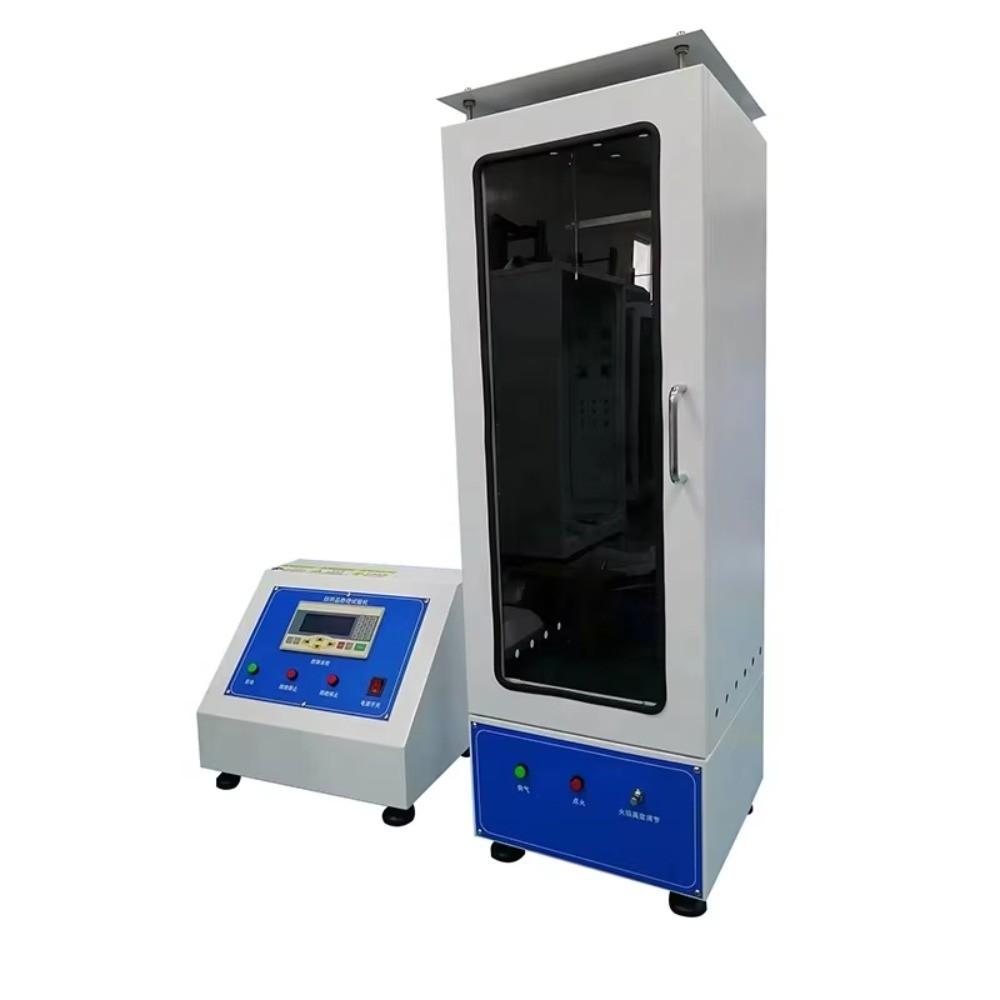

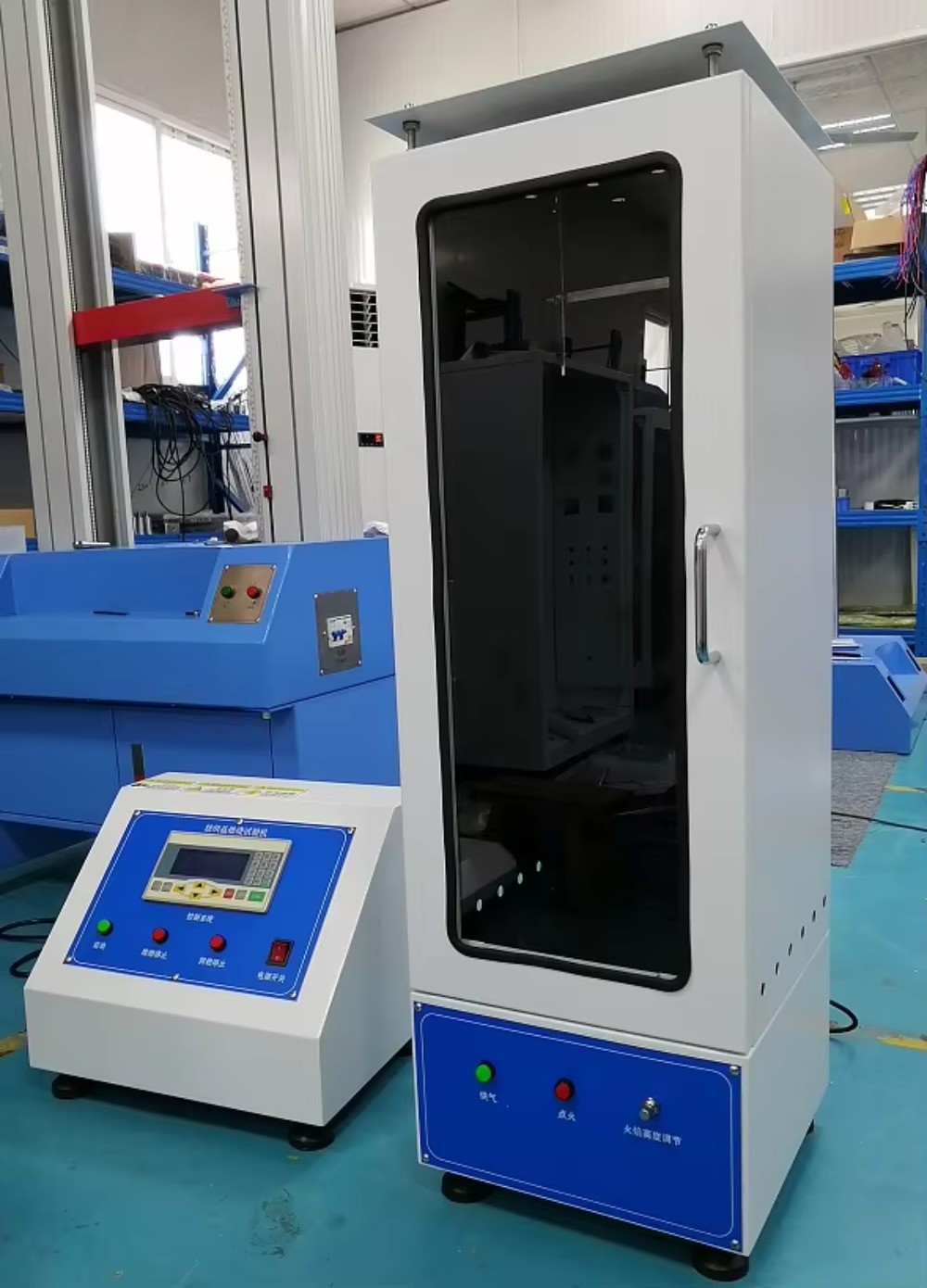

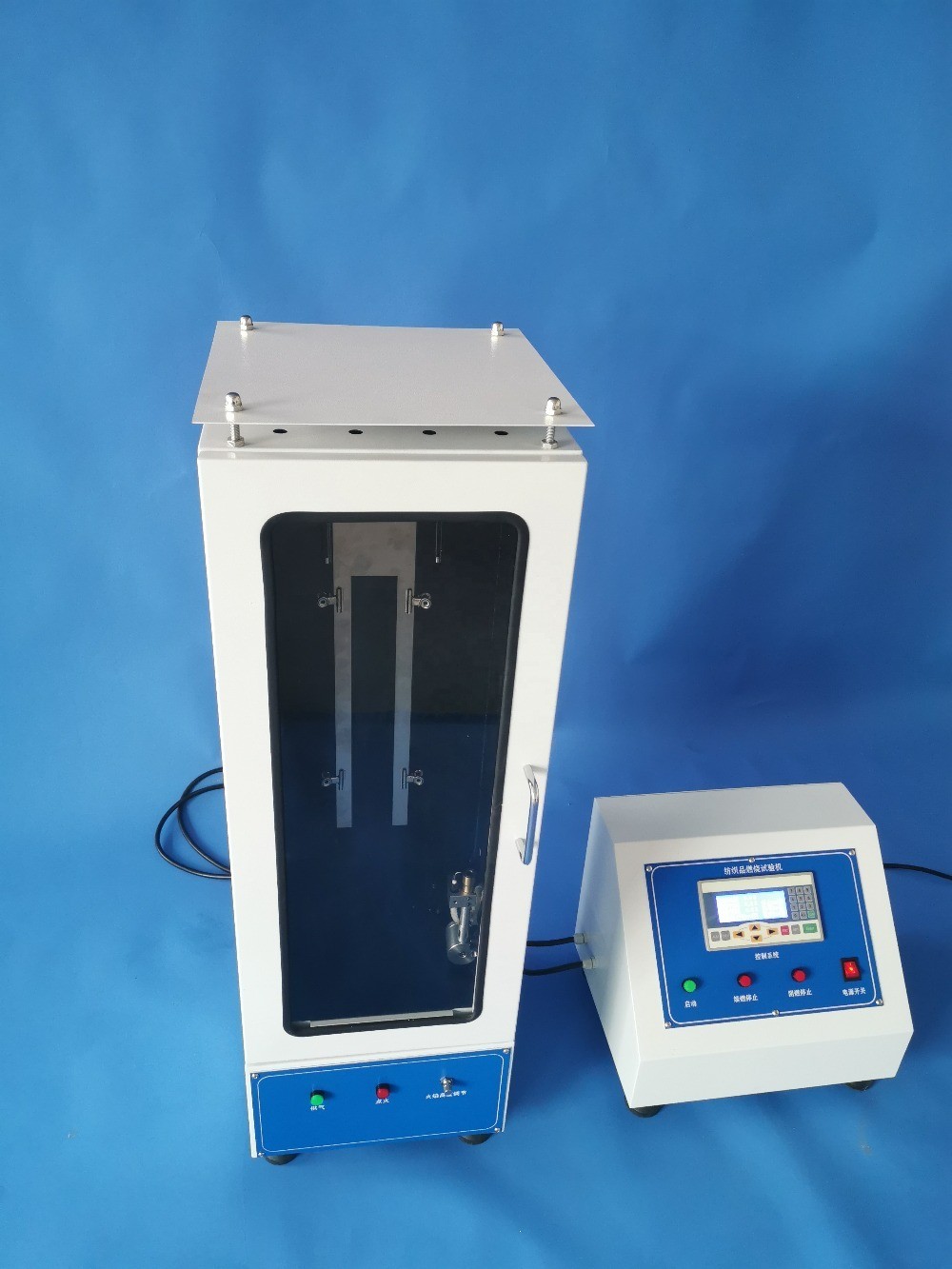

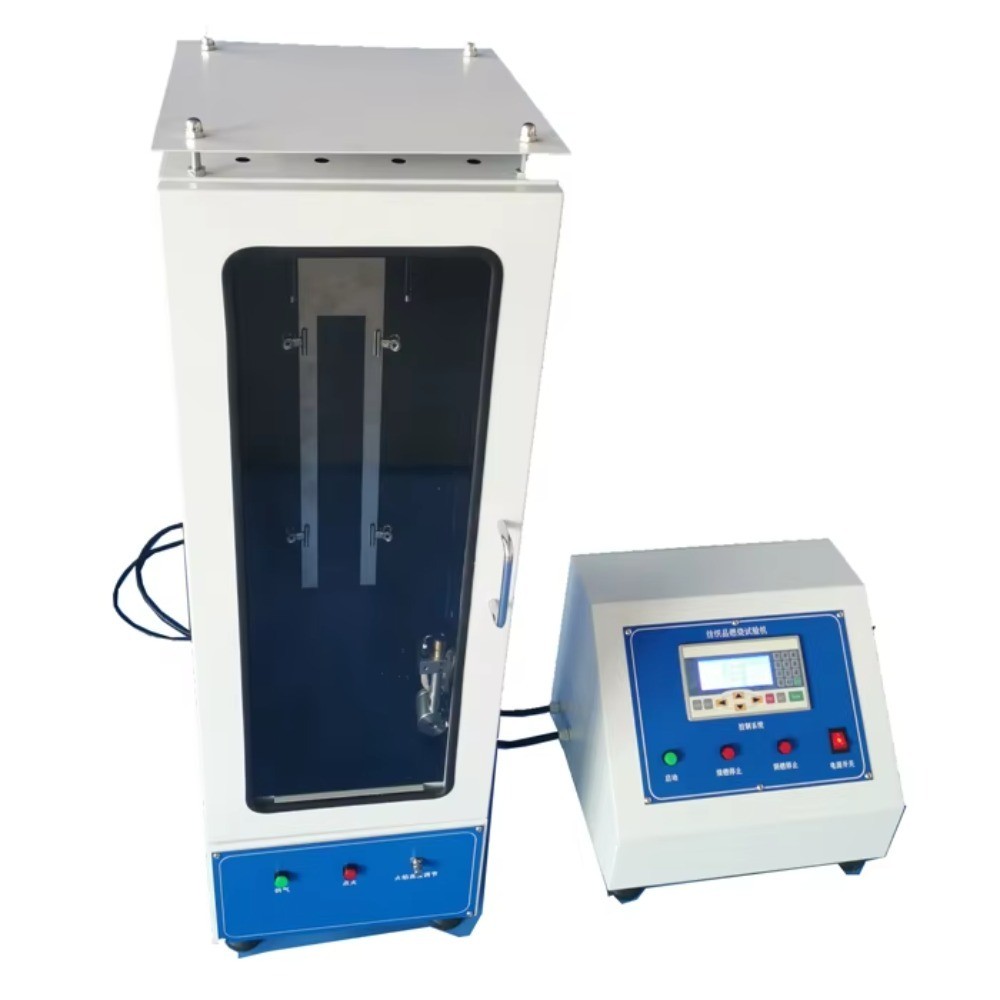

Flame Retardant Tester

Product Item : FRT-810
Category： Textile Testing Equipment
Flame Retardant Tester
Flame Retardant Test Machine
Fire Retardant Test
Flame Retardant Test Equipment
Product description：This testing machine is suitable for the determination of the flame retardant properties of various flame retardant textiles; According to the GB/T 545-1997 standard, it is designed to determine the c
INQUIRY

Product Introduction

This testing machine is suitable for the determination of the flame retardant properties of various flame retardant textiles; According to the GB/T 545-1997 standard, it is designed to determine the continuous combustion, flame retardant and carbonization trends of textiles. The instrument is easy to operate.

Standard

GB/T 5455-1997

Technical Data

Model	FRT-810
Combustion gas	Industrial propane or butane gas (product purity greater than 98%).
Time	You can set 0 ~ 99 minutes and 99 seconds
Rekindle time	You can set 0 ~ 99 minutes and 99 seconds
Smoldering time	You can set 0 ~ 99 minutes and 99 seconds
Burner nozzle diameter	Ø 11 mm
Combustion nozzle head and vertical angle	25o
Internal dimensions of the combustion chamber (LxWxH)	329 x 767 mm.
Roof vent dimensions	12.5 mm Ø, quantity: 16
Vent size box on both sides	12.5 mm Ø, quantity: Six on each side of the box
Sample clips	Two thick 2.0 mm thick, 422 mm long, 89 mm wide, U-shaped stainless steel plate, sample size: 356 x 51 mm
Weight weight	54.5g，113.4g，226.8g，340.2g，453.6g。

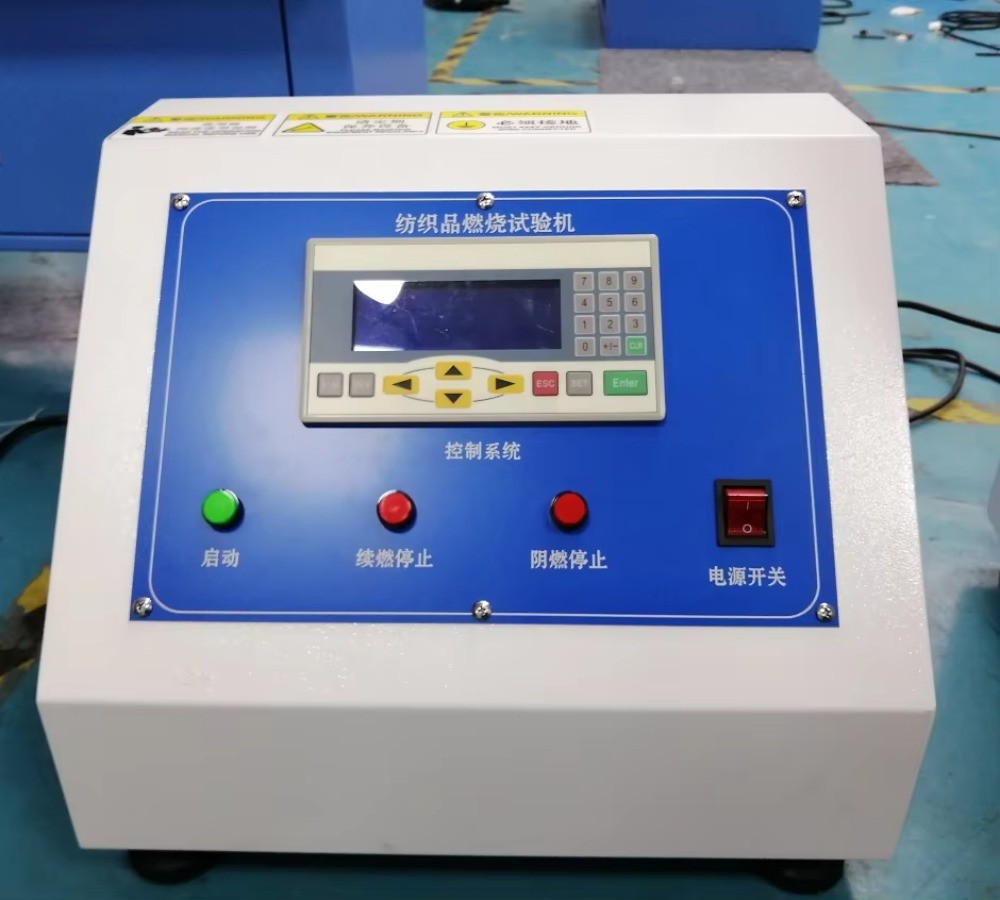

Product features:	The testing machine is composed of control box, combustion box, burner, PLC, LCD display, solenoid valve, high-pressure ignition, gas pipeline, pressure regulator and signal control line.
