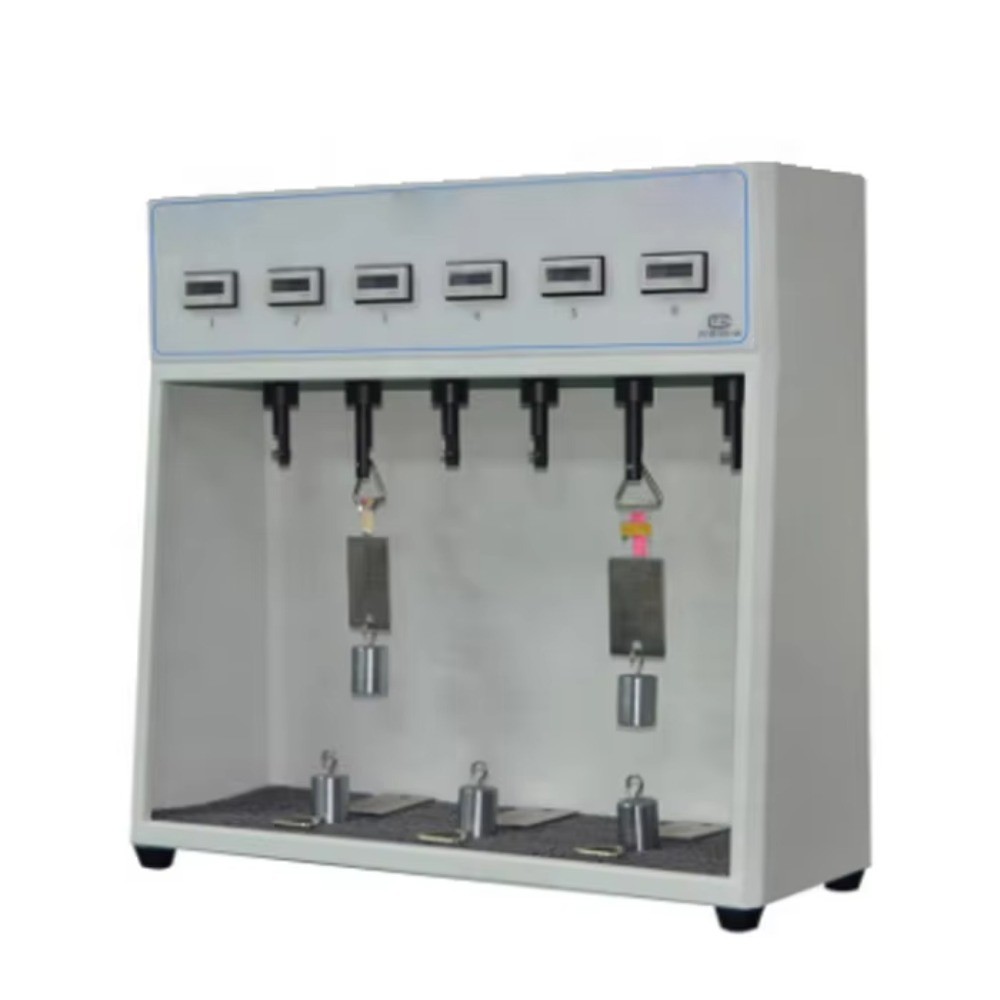

Tape Shear Adhesive Tester

Product Introduction

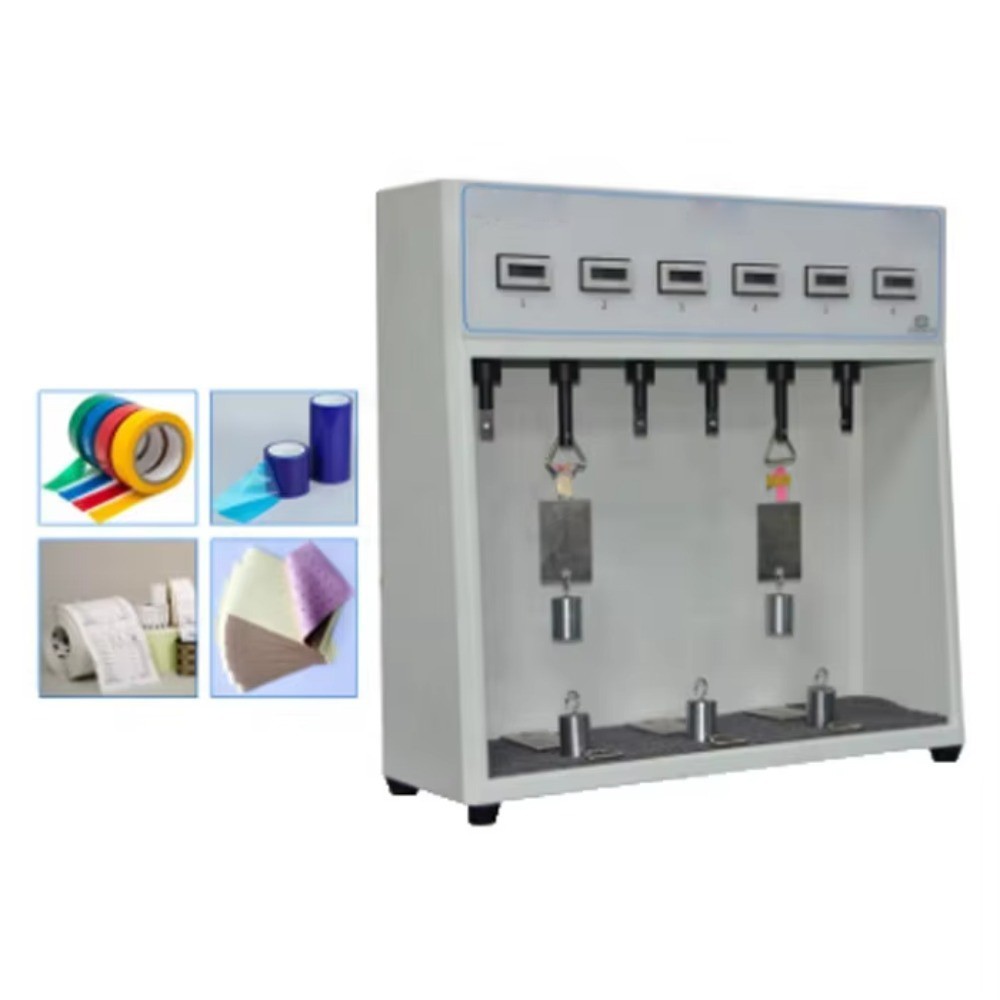

The tape shear adhesive tester is suitable for adhesive testing of adhesive tapes, protective films, labels, plasters and other products. The resistance of the adhesive sample to pull off can be expressed by the displacement of the adhesive sample or the time when the sample completely detaches after a certain amount of time.

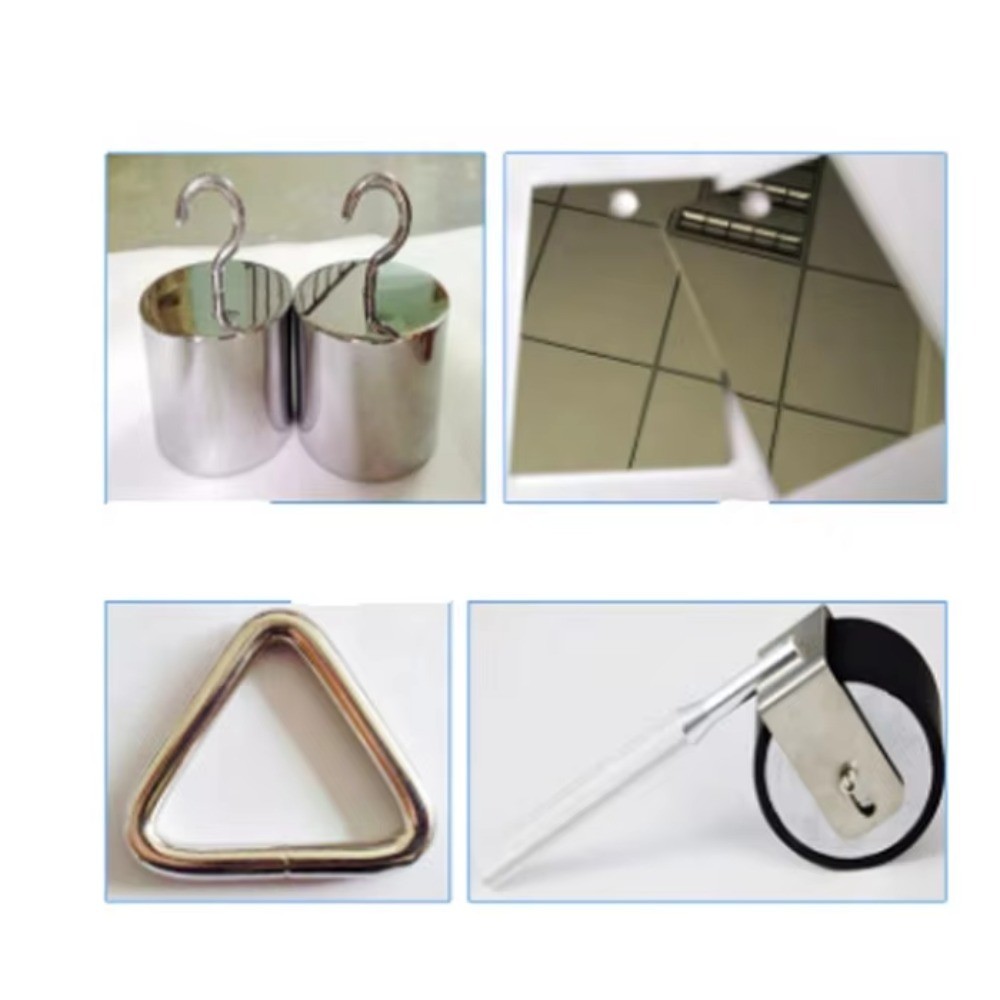

Under constant load conditions, temperature (23 +-1)C and relative humidity (50-5)C, the adhesiveness of the tape to the standard steel plate is measured by the failure time of the tape. Tackiness of Standard Steel Plates: Tape is applied to standard steel plates at a controlled rolling rate. The steel plate is mounted vertically or horizontally and a standard weight is hung at the free end of the tape to determine when the adhesive fails.

Note: The vertical method is used for viscous measurement with a failure time of less than 4 h, and the horizontal method is used for viscous measurement with a failure time greater than 4 h.

Features

1. The test plate and test weight are designed in strict accordance with the standard to ensure the accuracy of the test data.

2. Multiple sets of test items can be carried out at the same time over the test station.

3. Automatic timing, locking and other functions further ensure the high accuracy of the test results.

Standards

GB/T 4851-2014 Standard for test methods for adhesive adhesive tapes

ASTM D3654-2019 Standard Test Method for Shear Viscosity of Pressure-Sensitive Tapes

Z0237-2000 test method for JIS pressure-sensitive tape and pressure-sensitive film
