Free Fall Drop Tester

Product Item : FDT-2000
Category： Other
Drop Tester
Drop Test System
Drop testing machine
Free fall drop tester
Product description：This tester is used for testing the fastness of plastic, ceramics, glass fiber,etc. Uses certain weight steel ball and adjust to certain height to let it fall freely and impact test sample. Then check
INQUIRY

Product Description

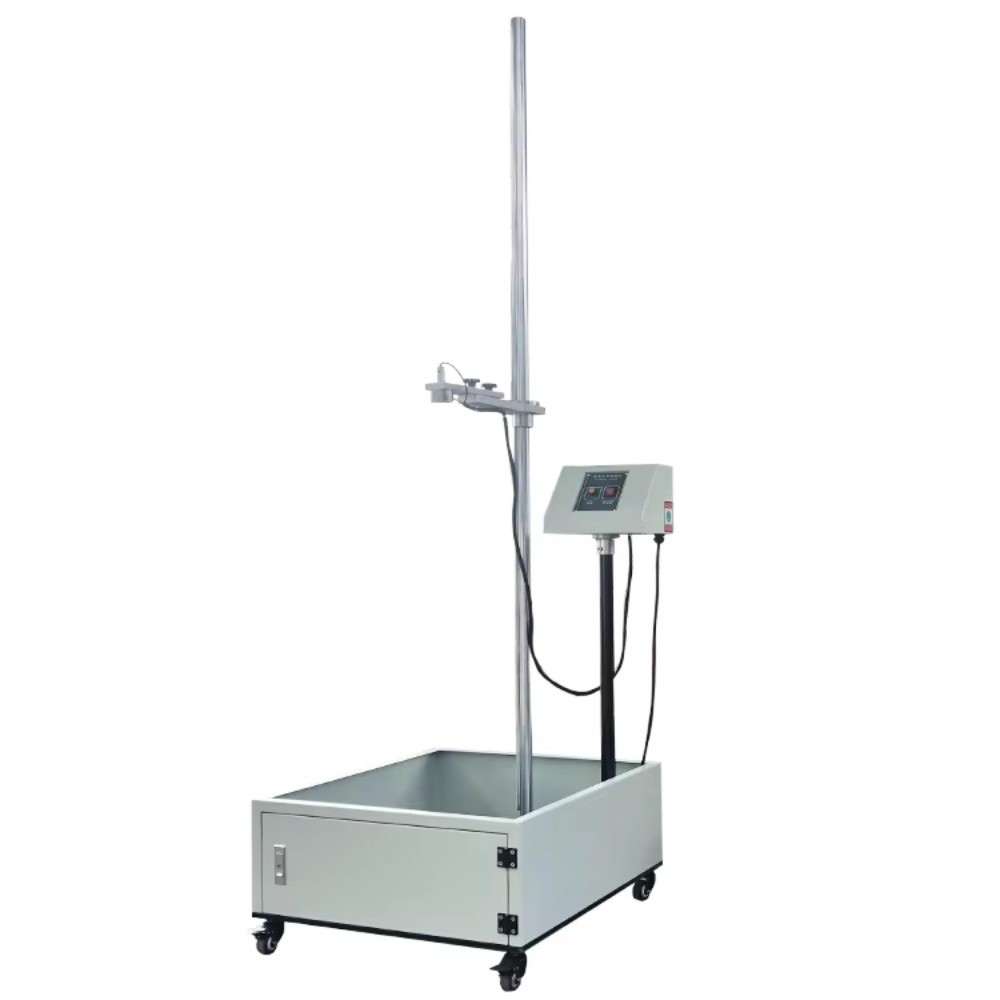

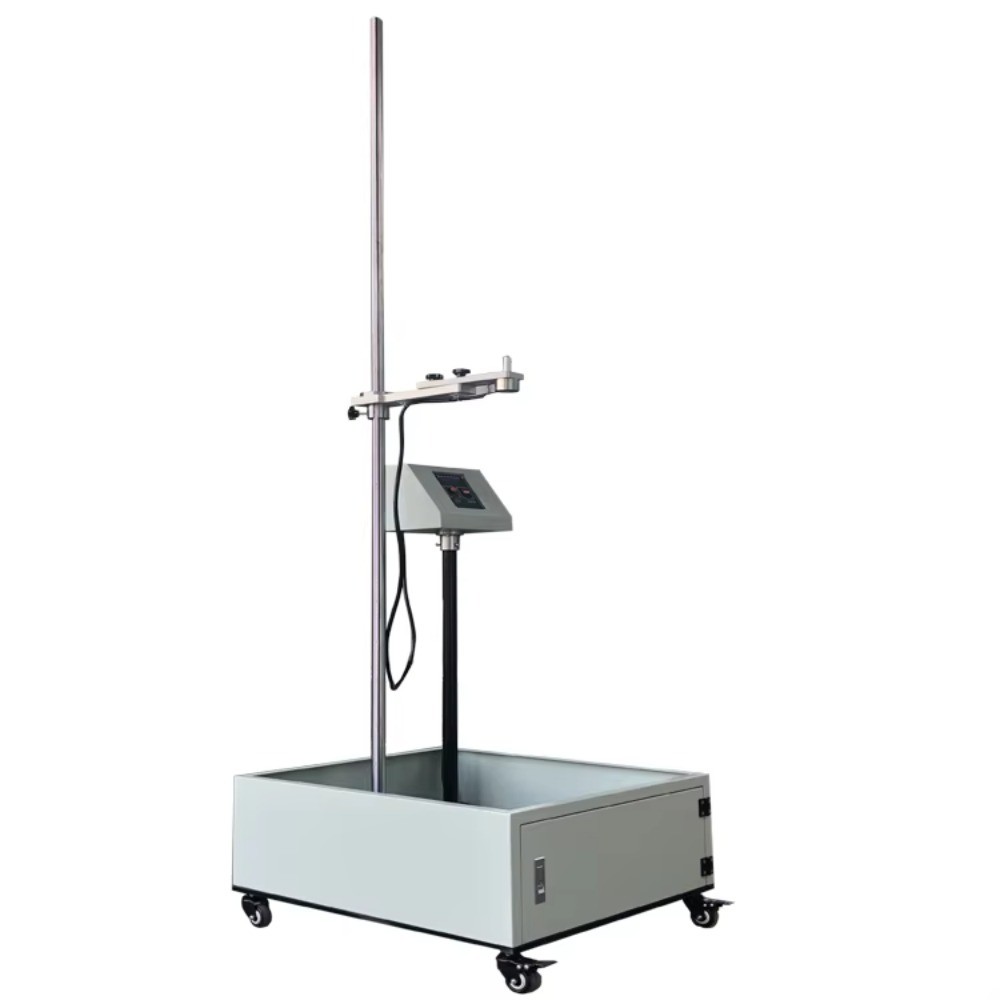

This tester is used for testing the fastness of plastic, ceramics, glass fiber,etc. Uses certain weight steel ball and adjust to certain height to let it fall freely and impact test sample. Then check the sample damage degree to judge the sample quality.

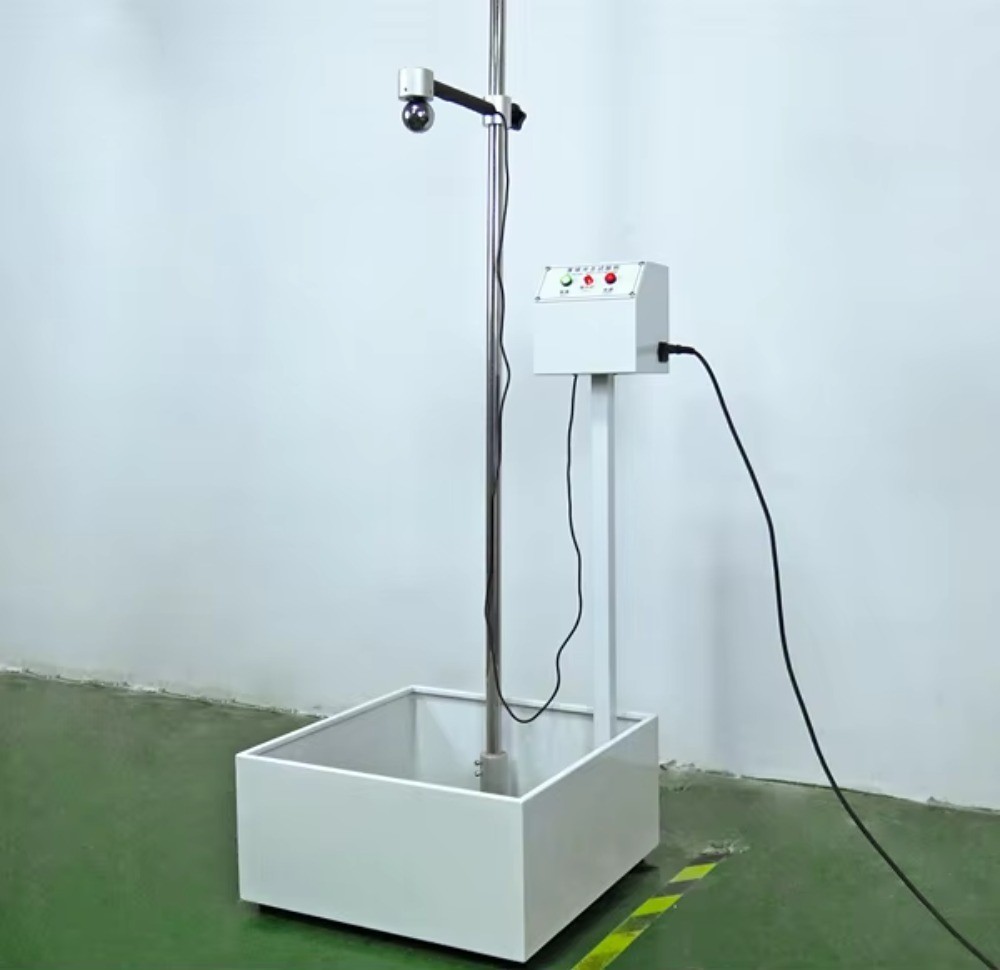

Electromagnetism sucker and the ball will be absorbed automatically. Press the dropping key, the steel ball will be released instantly and fall to impact the sample surface. The drop height can be adjusted and there are altitude scale to measure dropping height.

Technical Data

Max drop height	2m (or custom made)
Drop ball control mode	DC electromagnetic

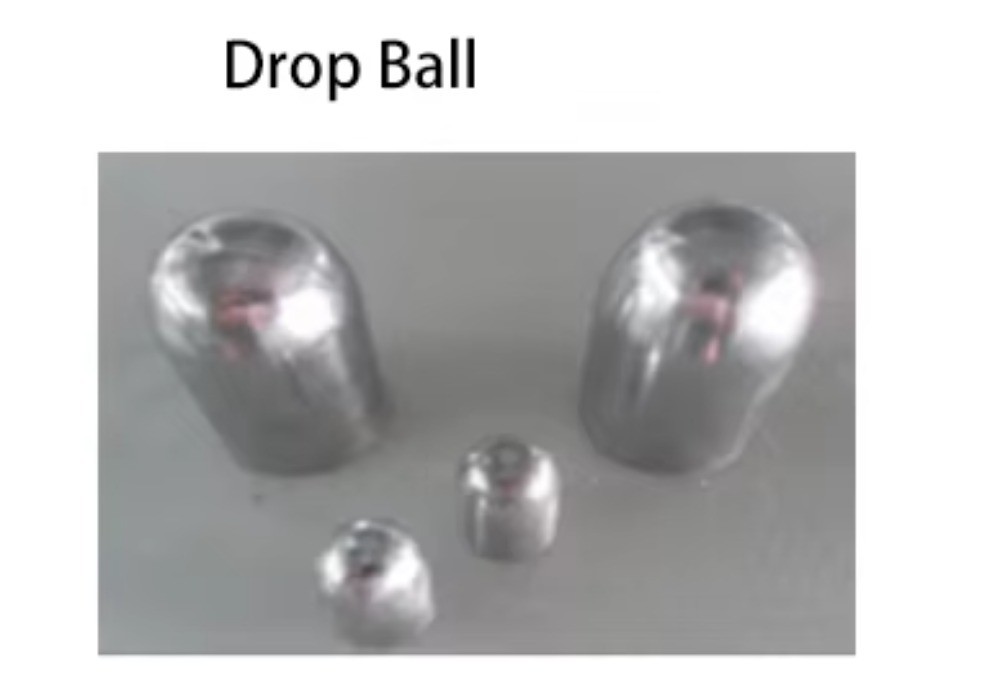

Steel ball weight	112, 198, 225, 357, 533, 1042, 2280g (or customized )
Drop height precision	1mm
Dropping rod shape	Square bar
Control and elevation ways	Circuit control electromagnet suction cups, manual lifting electromagnet fixed link
The sample size	≤280×100×40mm(LWH)
Farmar weight allowed error	±5g
Control cabinet	Surrounded by a protective box at the bottom
Dimension	About 5005002100mm
Power supply	220V 50Hz
