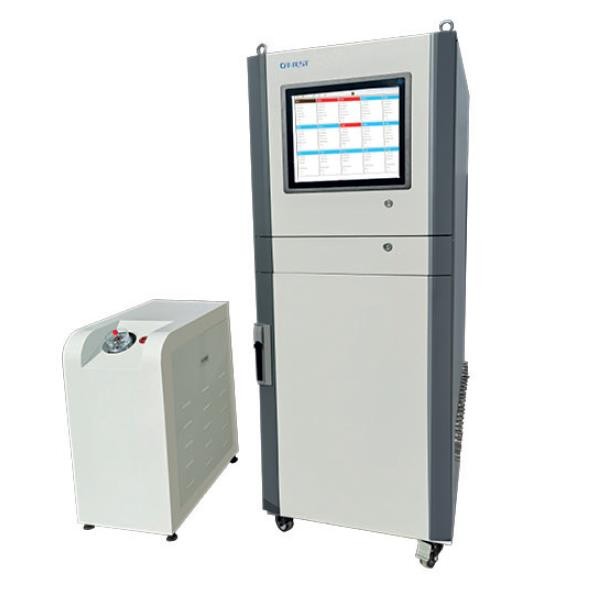

Hydrostatic Pressure Testing Machine for PE PVC PP Pipe

Hydrotstic Pressure Testing Equipment for PE PVC PPR Pipe and Fittings

Application

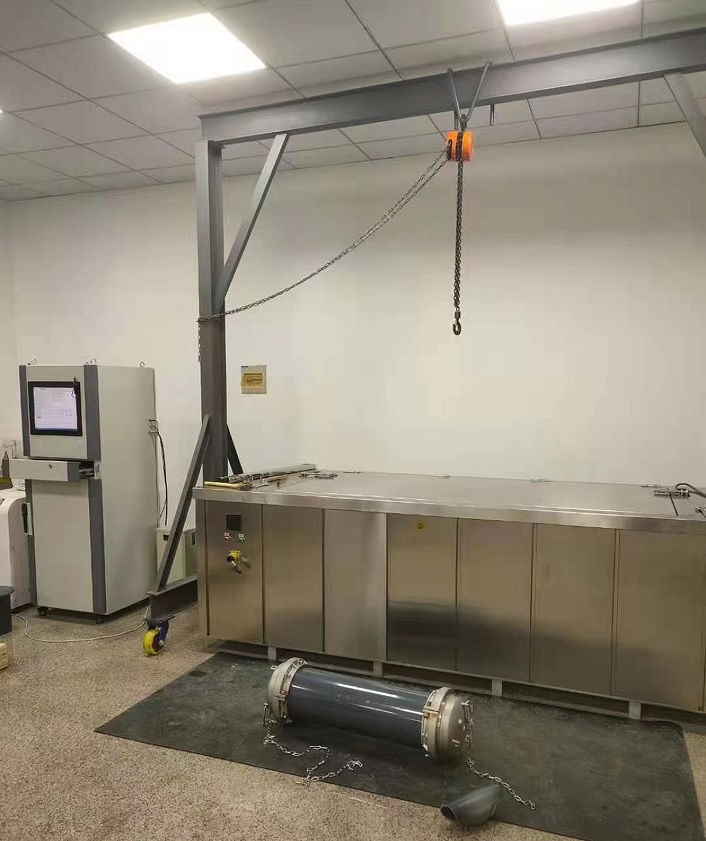

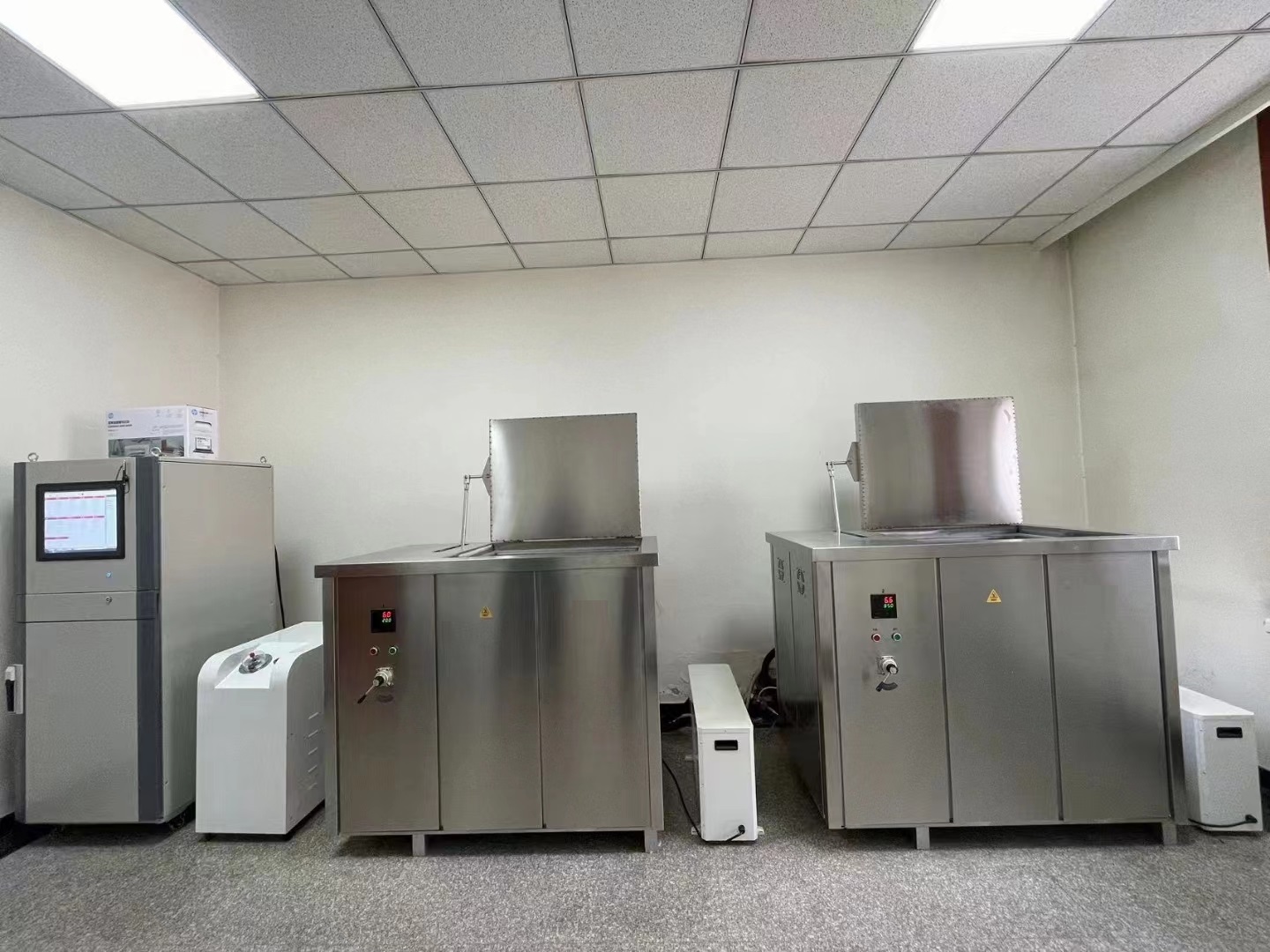

The internal pressure test is a test procedure for determining the strength of thermoplastic pipes to constant hydrostatic internal pressure at a constant temperature. The samples are tested either for a specified period or until they fail. The test duration is subject to the tension generated by the internal pressure and the temperature.

GT-HPS series is mainly used to determine the resistance of internal pressure and time-to-failure (short-time) burst pressure of both thermoplastic and reinforced thermosetting/resin pipe at constant water pressure at constant temperature.

Standards

• ISO 1167

• ASTM D 1598

• ASTM D 1599

Features

• With the advantage of pressure testing on large PE plastic pipes and fittings.

• The compact and modular design enables 20 independent pressure stations. A further significant advantage is the low energy consumption of this system.

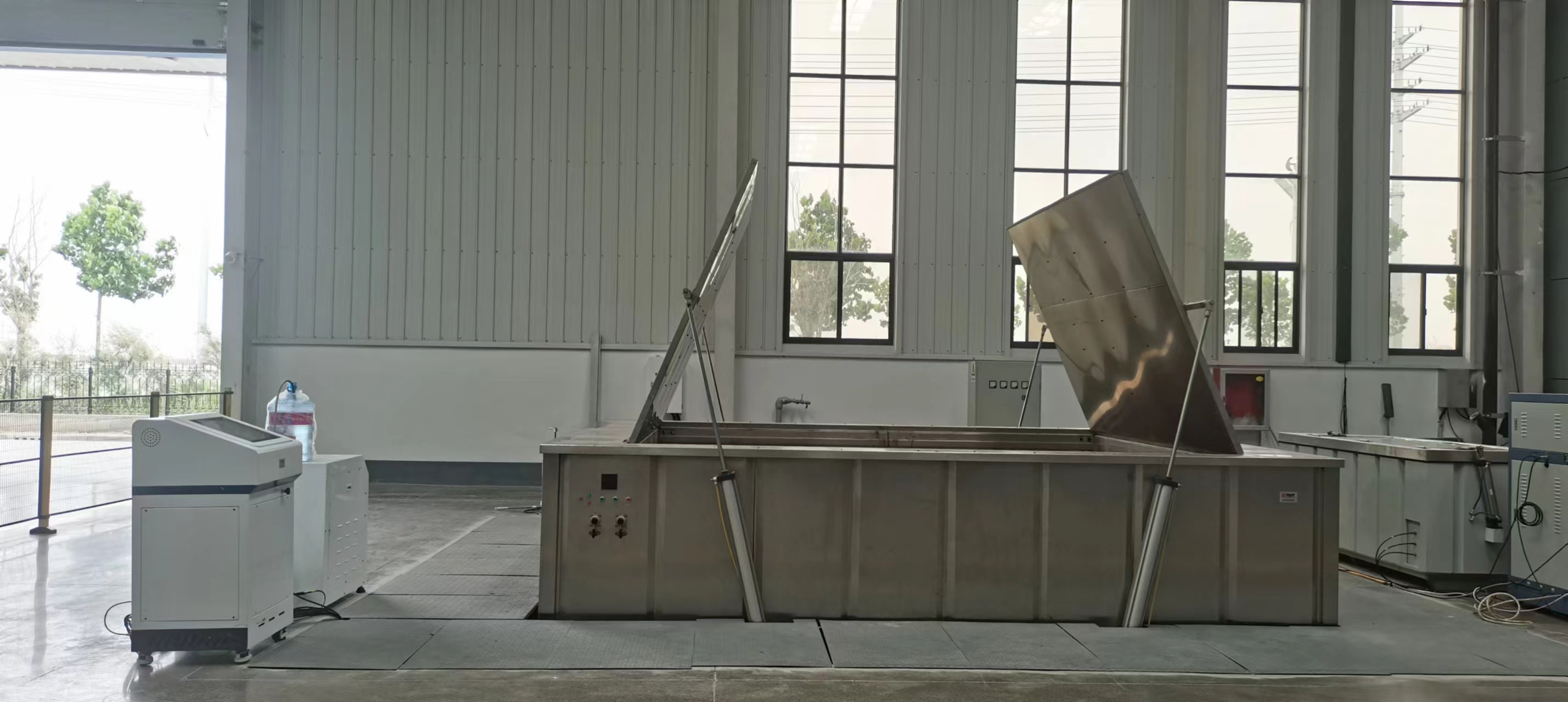

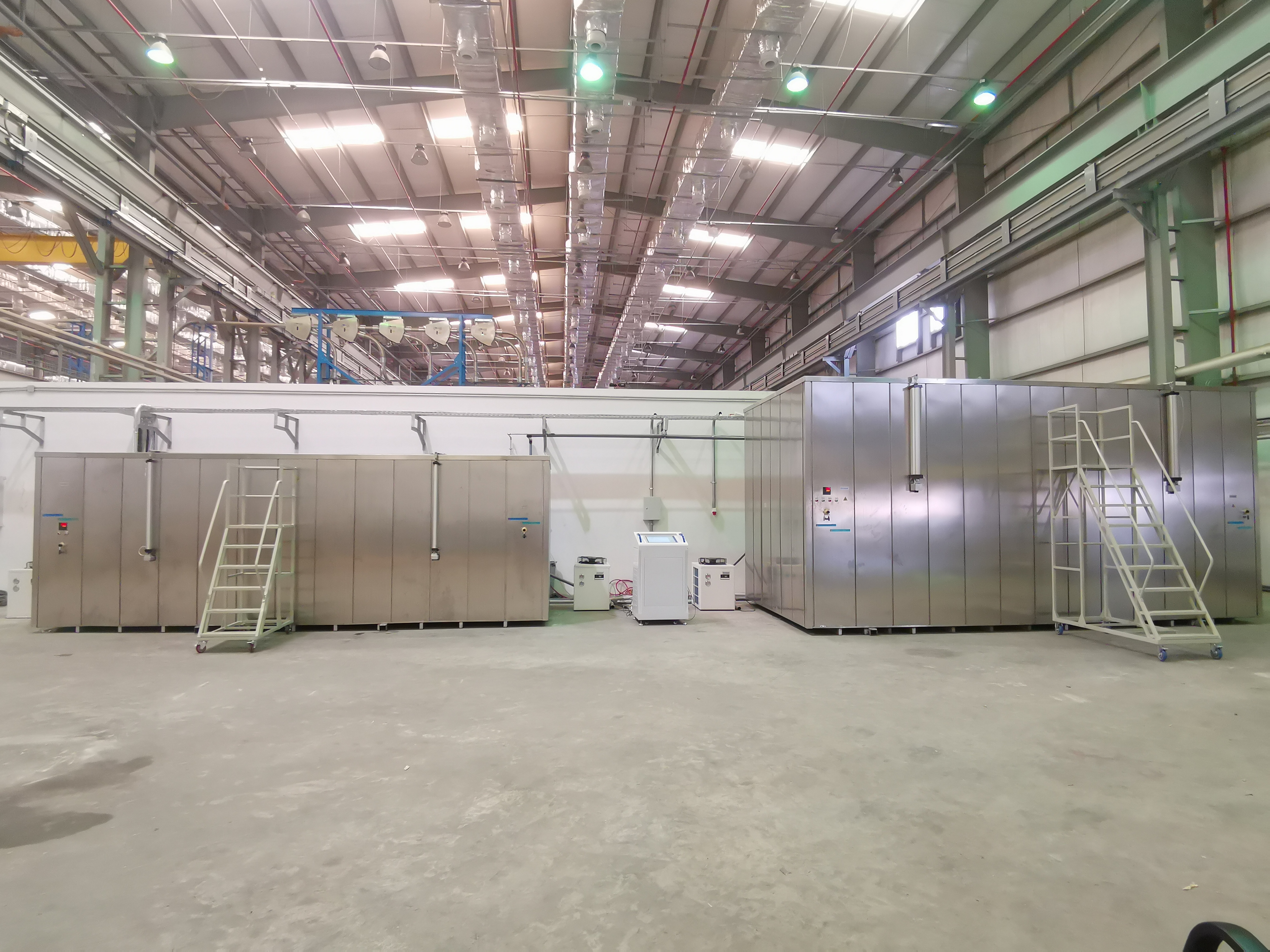

• Burst pressure test for pipes with large diameters is a further mile-stone for burst tests on large test samples.

• Suitable for not only plastic pipe, also cement pipe and other types of pipe & tube.

Software Features

• With the functions of specimen pre-treatment, real time monitoring, test data storage, data power-off protection (memory) , as well as automatic failure detection.

• For the pipes with big rate of expansion has the properties of rapid pressure rising rate and steady at constant pressure.

• Protective measures are from electric part, mechanical part as well as software.

Highlights

• Pressure testing for large PE pipe samples

• Burst tests finish within (60-70)s

• Convenient operation and clear visualization

• Automatic failure detection

• Online support via internet connection

Technical specifications

1. Max. pressuret:100bar/200bar/400bar

2. Capacity: (1 to 20) stations

3. Controlled by: computer

4. Pressure accuracy: -1%/+2%

5. Timing range: 1s to 1000h

6. Time resolution: 1s

7. Timing mode: count-up, counter-down
