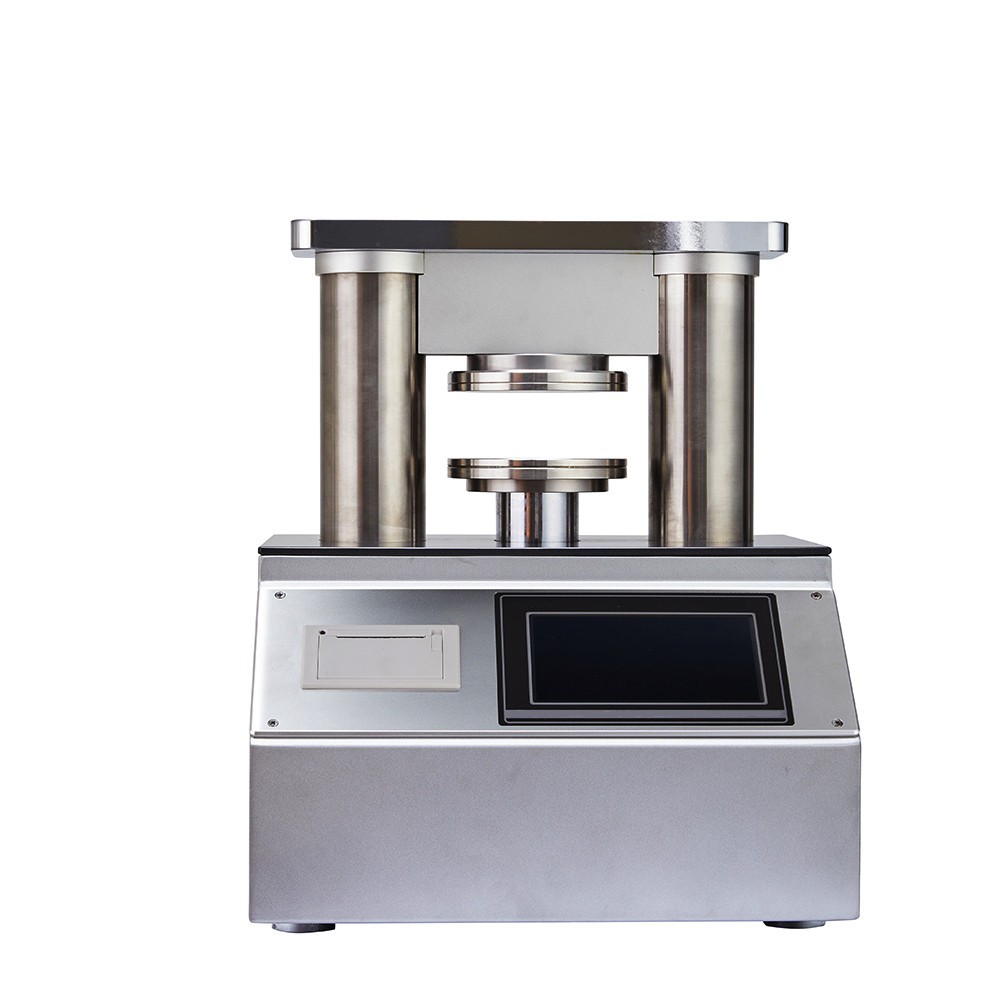

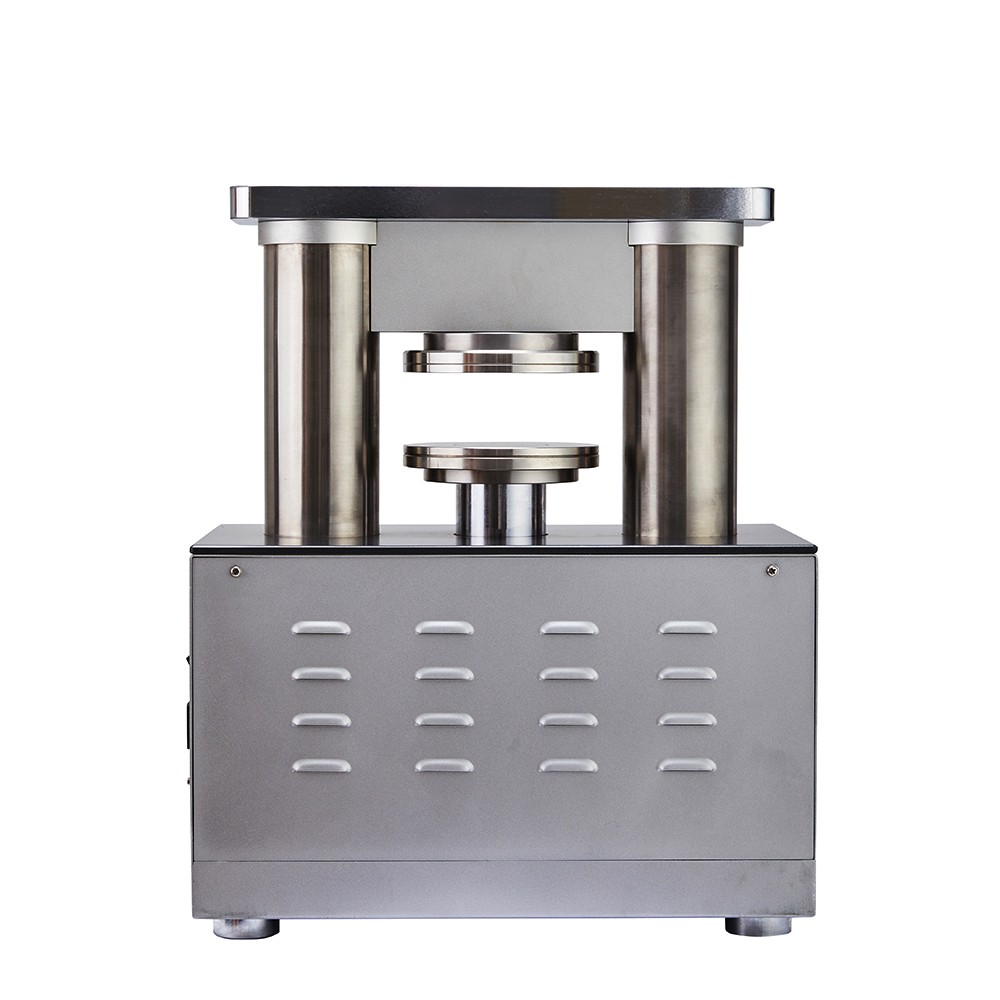

LCD Display Crush Tester

Category： Surface Performance
Brand :ZHIYI
Model:ZYCT-001A
Package :Wooden box
Delivery:5-7 days after payment received
Product description：Crush Tester,paper testing equipment,Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing
INQUIRY

Main Function :

● Measure corrugated base paper ring crush strength（RCT）

● Measure corrugated cardboard edgewise crush strength（ECT）

● Measure corrugated cardboard flat crysh strength（FCT）

● Measure corrugated cardboard pin adhesion（PAT）

● Measure corrugated base paper crush resistance strength（CMT）

● Measure corrugated base paper edgewise compression strength（CCT）

Main Features:

● High-precision load cell, ball screw drive, dual guide shafts

● ARM processor, 24-bit imported analog-to-digital converter, improve the response speed and test accuracy of the instrument.

● Real-time display of the pressure change curve during the test.

● Over-range automatic reset to protect the precision sensor.

● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.

● Cooperate with computer software for communication (purchased separately).

Executive Standard:

GBT 2679.8,GBT 6546, GBT 22874,GBT 6548, GBT_2679.6

ISO 12192,ISO 3037,ISO 3035,ISO 7263,ISO 16945

TAPPI T822,TAPPI T839,TAPPI T825,TAPPI T809,TAPPI-T843
