Coefficient of Friction Measuring Devices

Brief Introduction

This tester is mainly used to measure the static and kinetic coefficient of friction of sliding materials including plastic films & sheets, rubber, paper, paperboard, woven bags, textiles, composite metal tapes for communication cables & optical fibers, conveyor belts, wood, coated materials, brake pads, windshield wipers, shoe materials, tires, as well as daily chemical products such as cosmetics and eye drops.

Complying with national standard GB 10006, it evaluates the surface smoothness of materials to adjust production processes and quality indicators to meet product application requirements.

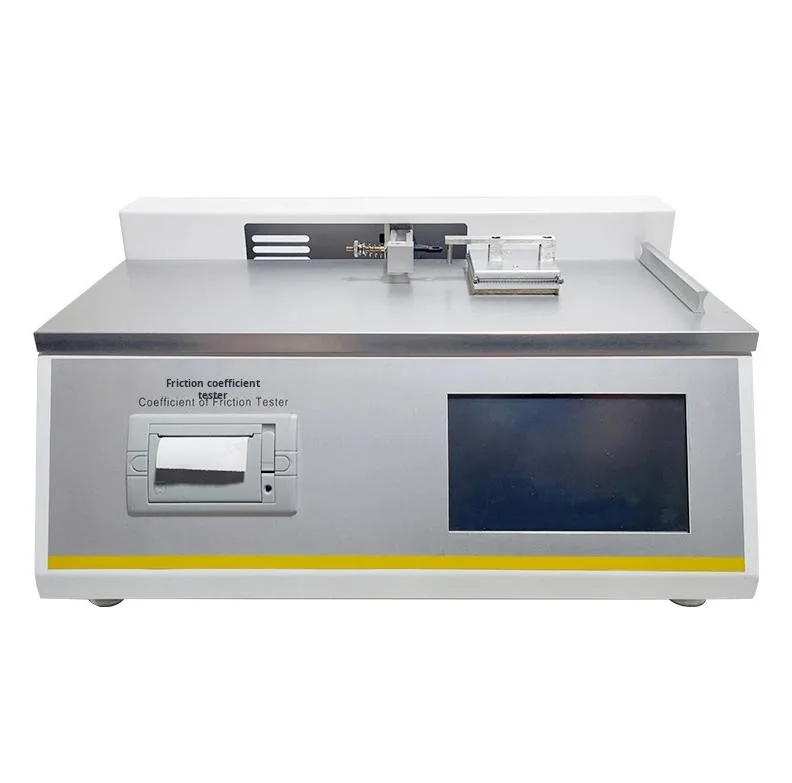

The equipment adopts microcomputer control for fully automatic testing. Equipped with a menu operation interface, PVC control panel and LCD screen, it facilitates test operation and data viewing. A built-in mini printer can automatically output test reports for single or batches of samples.

Compliance Standards

GB 10006, GB/T 17200, ISO 8295, ASTM D1894, TAPPI T816

Instrument Features

1. Microcomputer-controlled, fully automatic test procedure
2. Supports multiple standard test methods: GB 10006, ISO 8295, ASTM D1894, TAPPI T816, GB/T 2792, as well as customized non-standard tests
3. PVC control panel; LCD screen displays test results, parameters and real-time curves
4. High-precision imported load cell ensures high accuracy, excellent stability and repeatability of test data
5. Compatible with sliders of any custom mass
6. Standard test stroke: 150 mm
7. Test speed adjustable from 1 mm/min to 500 mm/min
8. Fully digital control without mechanical knobs
9. Specially designed drive system delivers smooth operation with zero vibration and low noise
10. Real-time force curve display during testing; simultaneously measures static and kinetic friction coefficients
11. Built-in mini printer for printing real-time and historical test reports
12. Test platform and standard slider undergo demagnetization and residual magnetism inspection to minimize system test errors
13. Standard RS232 serial port; dedicated PC software supports remote test control, data analysis and curve overlay

Technical Specifications

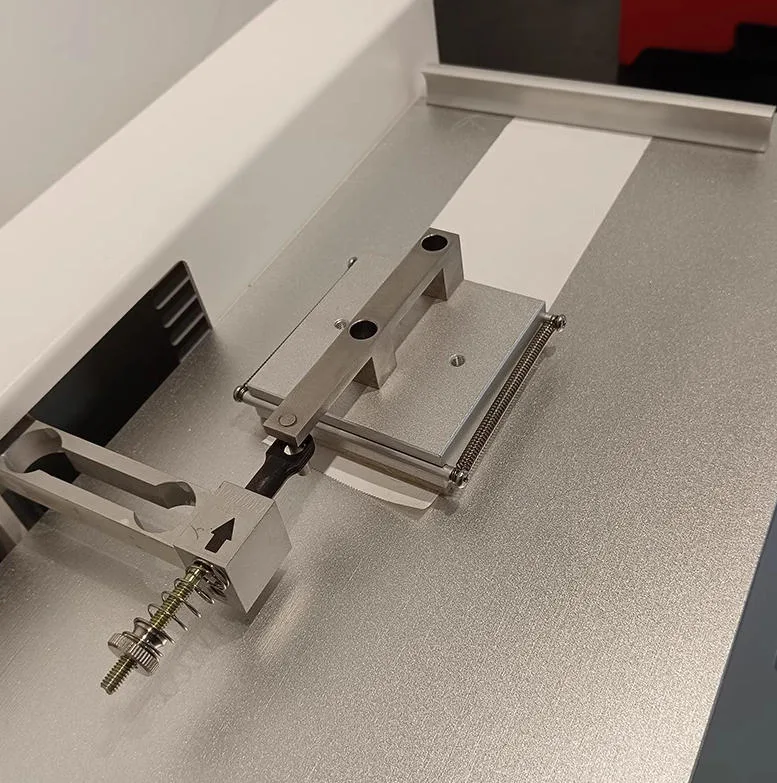

1. Standard slider size: 63×63 mm; standard slider mass: 200±2 g
2. Worktable dimension: 200×470 mm
3. Measurement accuracy: ±1%
4. Test stroke: 150 mm
5. Slider moving speed: 1~500 mm/min
6. Force measurement range: 0~5 N
7. Coefficient of friction measuring range: 0~2.5
8. Power supply: AC 220 V, 50 Hz
9. Overall dimension: 480 mm × 320 mm × 190 mm
10. Net weight: 20 kg
