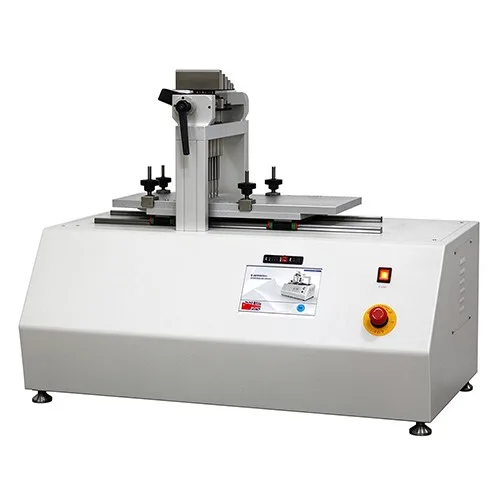

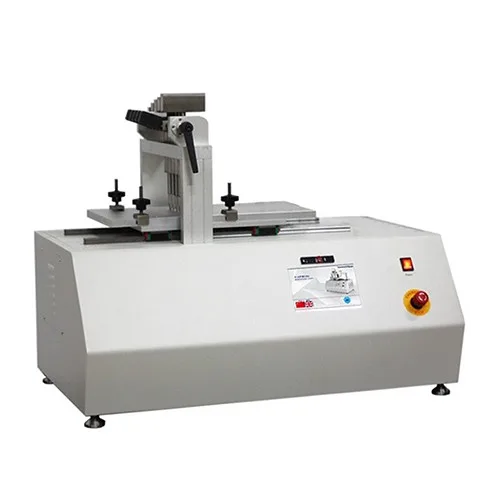

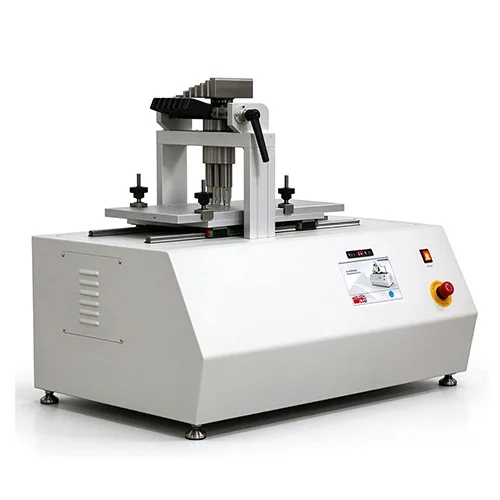

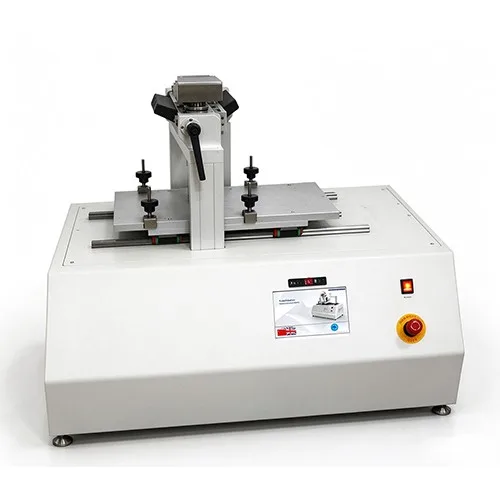

Multi Finger Scratcher / Five Finger Scratch Tester

Product Introduction

The sample is fixed on a compressed air driven test platform. Five independent shaft scraping fingers that can be replaced with different weights and optional scraping fingers, constant vertical acting on the test sample surface. The scraper is mounted on a hard bench, and the operator can hold the specified scraper in a balanced position by means of a bracket so that the irregularly sized sample can also be tested.

Applications

The instrument uses tungsten carbide as a scratch to accurately detect surface damage caused by unconventional physical forms (such as scraping, grasping, planning etc). It can be used to detect the wear resistance of plastic parts in automobile interior and exterior trim, and can also be used for the testing of hard material wear, paint, ink, soft metal, oil carpet and other materials.

Compliance Standards

Ford BN 108-13 Resistance to scratching General Motors DMN3943、Danmler-Chrysler LP-463DD-18-01

Technical Parameters

Standard configuration

Scraper components (5 pieces)

Scraping fingertips: diameter 1.0mm spherical scraping fingertips (5PCS)

Scratch fingertips: diameter 7.0mm spherical scraper tip (5PCS)

Weights set

Digital electronic timer

Adjustable sample holder (2PCS / set)

Standard Accessories

1. Pneumatic, mobile platform;

2. Regulator operation control

3. With the weights of the five shaft scraping fingers

4. Nine weight settings (2N, 3N, 4.5N, 5N, 6N, 7N, 10N, 15N, 20n)

5. Interchangeable scratches and scratches tool

6. A solid spring sample holder

7. Detachable inspection table protection board

8. Precise to 1/100 second electronic timer

9. Lubricant air conditioning controller with internal lubrication

Optional Accessories

1.0mm tungsten carbide scratch finger tips

7.0mm tungsten carbide scratch fingertips

But also in accordance with customer requirements special production

Weight optional accessories

Weight set: including 8N, 13N, 18N

Weight 25N
