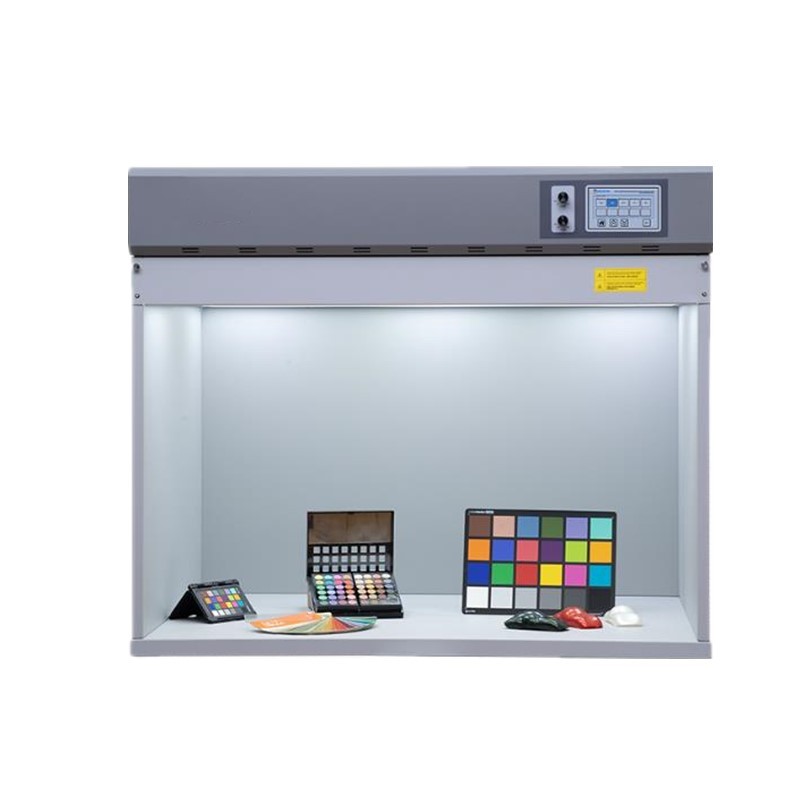

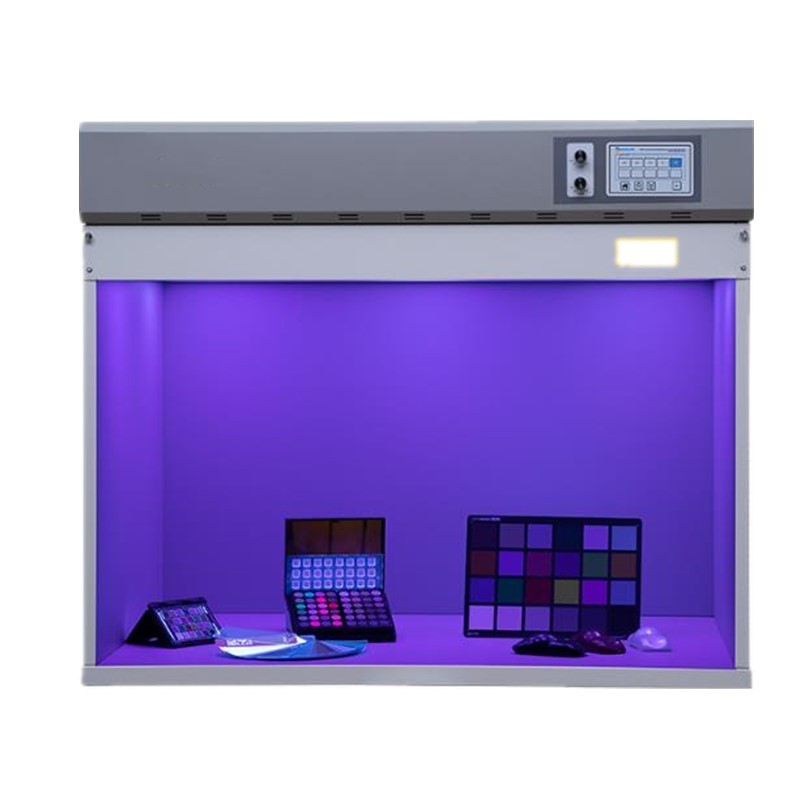

LED lighting cabinet

LE

ZHIYI - Portable V2

ZHIYI- STD

ZHIYI - C15

ZHIYI - I14

Digital driving channels

20

20

24

24

LED channels*1

14 channels

14 channels

15 channels

14 channels

Spectral range

350-730nm

380-730nm

350~700 nm

380~730 nm

LED channel drive method

Amplitude Modulation, AM(default) / Pulse-width modulation, PWM(customized) / AP*2

Resolution*3

10 bit (1024 steps dimmable for each channel)

Warm up time

No

Capacity

80 light sources

80 light source in LEDView hardware and can be switched via touch screen switch panel , unlimited in software

80 light source in LEDView hardware and can be switched via touch screen switch panel , unlimited in software

80 light source in LEDView hardware and can be switched via touch screen switch panel , unlimited in software

80 light source in LEDView hardware and can be switched via touch screen switch panel , unlimited in software

Predefined illuminants*4

Daylight Options:
CIE D50，CIE Ra > 98 MIvis: A （<0.25）
CIE D55，CIE Ra> 98 MIvis: A （<0.25）
CIE D65，CIE Ra > 98 MIvis: A （<0.25）
CIE D75，CIE Ra > 98 MIvis: A （<0.25）
Others:
A，CIE Ra>97
UV
or customer specify
Sources stored in the hardware can be reprogrammed or calibrated by Thouslite

Daylight Options (exclude UV):
CIE D50，CIE Ra > 98 MIvis: A （<0.25）
CIE D55，CIE Ra> 98 MIvis: A （<0.25）
CIE D65，CIE Ra > 98 MIvis: A （<0.25）
CIE D75，CIE Ra > 98 MIvis: A （<0.25）
Others:
A， CIE Ra>97
or customer specify
Sources stored in the hardware can be reprogrammed or calibrated by Thouslite

Daylight Options:
CIE D50，CIE Ra > 98 MIvis: A （<0.25）
CIE D55，CIE Ra> 98 MIvis: A （<0.25）
CIE D65，CIE Ra > 98 MIvis: A （<0.25）
CIE D75，CIE Ra > 98 MIvis: A （<0.25）
Others:
A， CIE Ra>97
UV
or customer specify
Sources stored in the hardware can be reprogrammed by software LEDNavigator-LV

Daylight Options (exclude UV):
CIE D50，CIE Ra > 98 MIvis: A （<0.25）
CIE D55，CIE Ra> 98 MIvis: A （<0.25）
CIE D65，CIE Ra > 98 MIvis: A （<0.25）
CIE D75，CIE Ra > 98 MIvis: A （<0.25）
Others:
A， CIE Ra>97
or customer specify
Sources stored in the hardware can be reprogrammed by software LEDNavigator-LV

Daylight Options (exclude UV):
CIE D50，CIE Ra > 98 MIvis: A （<0.25）
CIE D55，CIE Ra> 98 MIvis: A （<0.25）
CIE D65，CIE Ra > 98 MIvis: A （<0.25）
CIE D75，CIE Ra > 98 MIvis: A （<0.25）
Others:
customer specify
Sources stored in the hardware can be reprogrammed by software LEDNavigator-LV

Tunable range

-

CCT: 2000~20000K (Duv tolerance<±0.003)

Max illuminance

Default: 1500 lux or customized

Default: 1500 lux or customized

Default: 1500 lux
Further adjust via software. Max up to 2500lux, depending on the illuminant

Illuminance adjustable via software. Max up to 12000lux for D50-D65

Short-term stability*5

ΔCCT<±20K; ΔIlluminance <±1%

Long-term stability*6

ΔCCT<±50K; ΔIlluminance<±2%

Fluorescent light (optional)

-

CWF (Default)
TL84 (Default)
TL83

-

Fluorescent light tunable

-

Yes

-

Software instrument compatibility

-

-

Konica Minolta CL500A & CS-2000, THOUSLITE FS & FS-VIS-IR Spectrometer
Jeti Specbos 1211UV spectroradiometer

Uniformity*7

80%

85%

Interior color

Munsell N5
Munsell N7 (Default)

Electrical

100-240V  50/60Hz
54W (max)

100-240V 50/60Hz，300W (max)

100-240V 50/60Hz，360W (max)

Connection

Button switch panel

Touch screen switch panel

Touch screen switch panel, intensity dimmer for fluorescent, USB cable

Touch screen switch panel, USB cable

External dimensions(L/W/H)

470×410×450 mm

705×580×654 mm

1020×740×860 mm

520×520×850 mm

Viewing area(L/W/H)

465×300×310 mm

655×537×390 mm

970×700×585 mm

500×500×600 mm

Weight

10.5 Kg

36 Kg

60 Kg

40 Kg

Scope of delivery

Light source, diffuser, power cord, power adapter, SOP, accessories

Overhead luminarie, viewing cabinet, diffuser, power cord, power adapter, SOP, accessories

Overhead luminarie, viewing cabinet, diffuser, power cord, USB cable, software LEDNavigator-LV with dongle (optional), THOUSLITE FS spectrometer (optional) , USB storage(SOP, SDK*8 available on request), accessories

Software

-

-

Modules in software LEDNavigator-LV:
1. Blackbody locus simulator
2. SPD Match
3. Single channel control
4. Dynamic lighting
5. Fast & accurate feedback*9
