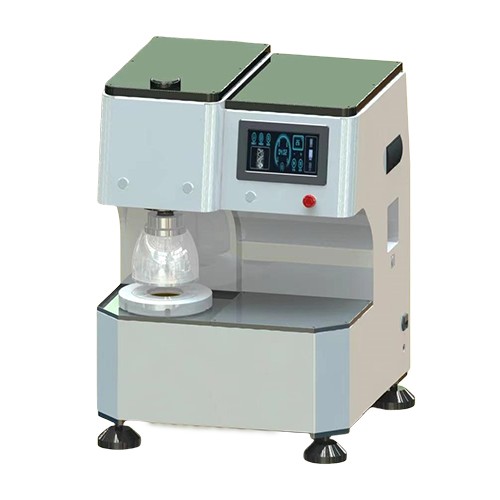

Electronic Bursting Machine

It is widely used in various textiles, non-woven fabrics, leather and other materials, when the warp and weft and all directions are stressed simultaneously, the expansion force and expansion performance measurement. (Hydraulic elastic diaphragm method)

Test Mode: A sample of a certain area is covered on an elastic diaphragm and clamped with a ring fixture. The fluid pressure is gradually increased under the elastic diaphragm to make the sample rupture within a certain time range. The maximum liquid pressure value measured minus the elastic diaphragm correction number is the bursting strength value of the tested sample. The laser sensor completes the accurate height measurement.

Product Feature

1. High-definition color touchscreen interface

2. Standalone operation or computer connection

3. Test platen and collection tray made of corrosion-resistant materials

4. Test shield made of imported, highly translucent POM material with built-in LED lighting, allowing for full visibility of the specimen during testing

5. 32-bit processor; 24-bit high-speed analog-to-digital converter chip

6. Laser displacement sensor for measuring displacement changes

7. Waste liquid collection device to prevent leakage and contamination

8. Overload protection and automatic sensor burst system, sensitive and reliable, with over-range and over-expansion protection features

9. Built-in thermal printer

International Standards

ISO2960, ISO13938.1-04, ASTMD3786, JIS1018.6.17

Technical Data

1. Measuring range: 0.001-6 MPa ±1%

2. Diaphragm dimensions: Outer diameter φ80, φ140 mm; thickness ≤ 2 mm

3. Test area: 7.3 cm² (φ30.5 ±0.05 mm) and 50 cm² (φ79.8 ±0.05 mm)

(10 cm² and 100 cm² areas can be customized)

4. Maximum expansion: 70 ±0.5 mm

5. Pressurization rate: (100-500) ml/min, digitally adjustable

6. Hydraulic fluid: 85% glycerin (propylene glycol) or other non-corrosive liquid

7. Operating air source ≥ 0.5 MPa

8. Output: Print, display, online communication

9. Power supply: 300W, AC220V ±10%, 50Hz

10. Dimensions: 690mm × 480mm × 700mm (L × W × H)

11. Weight: Approximately 125kg
