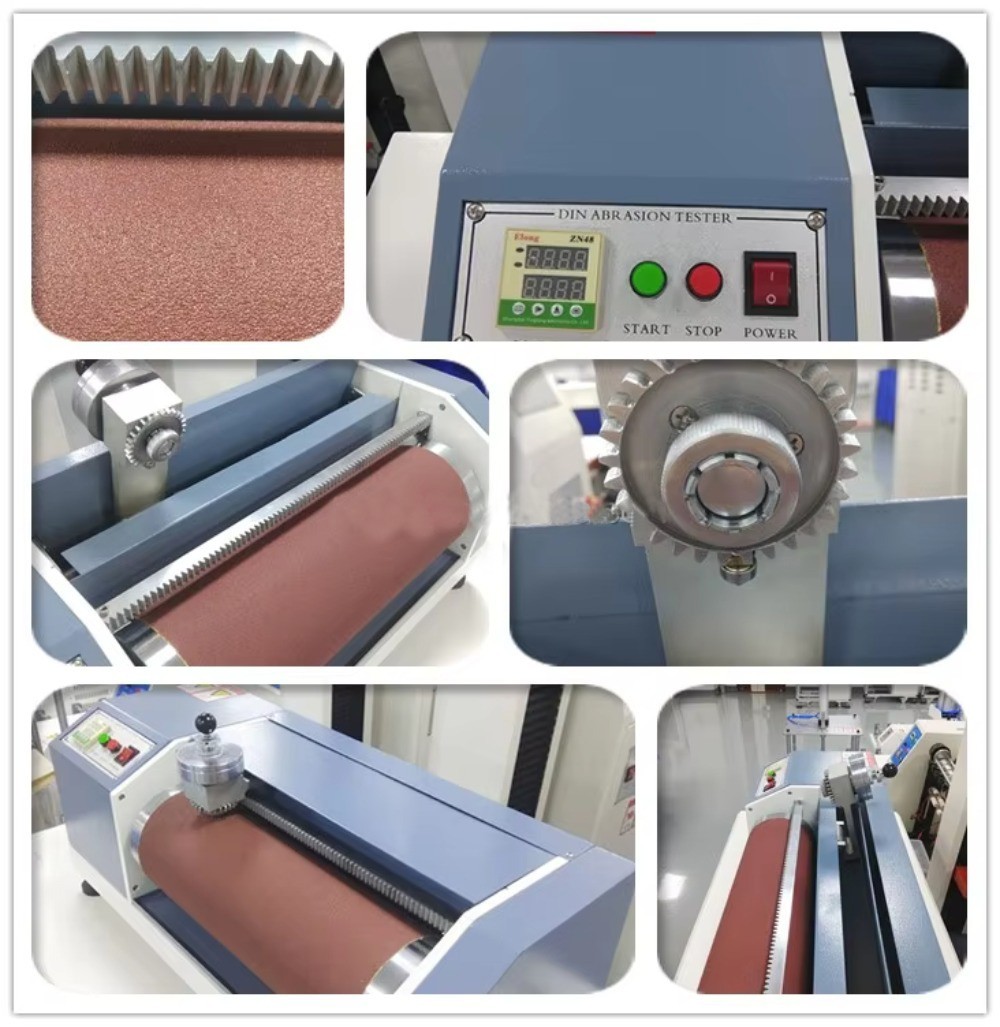

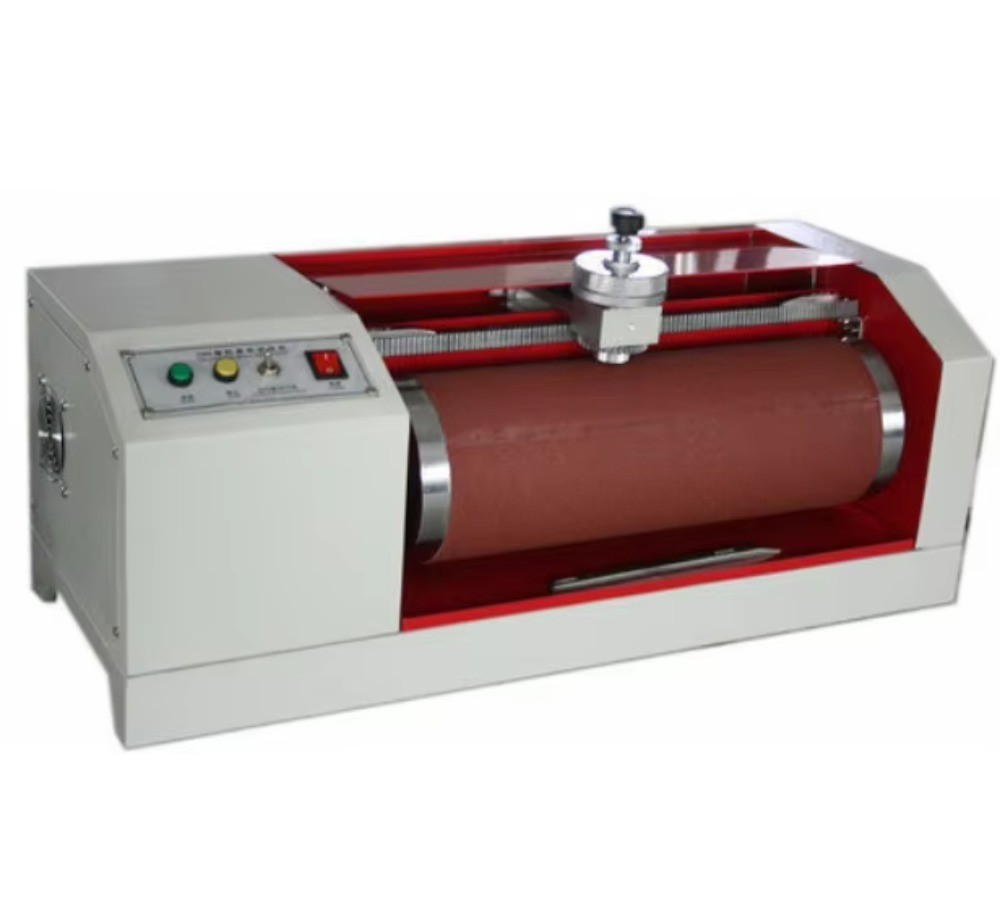

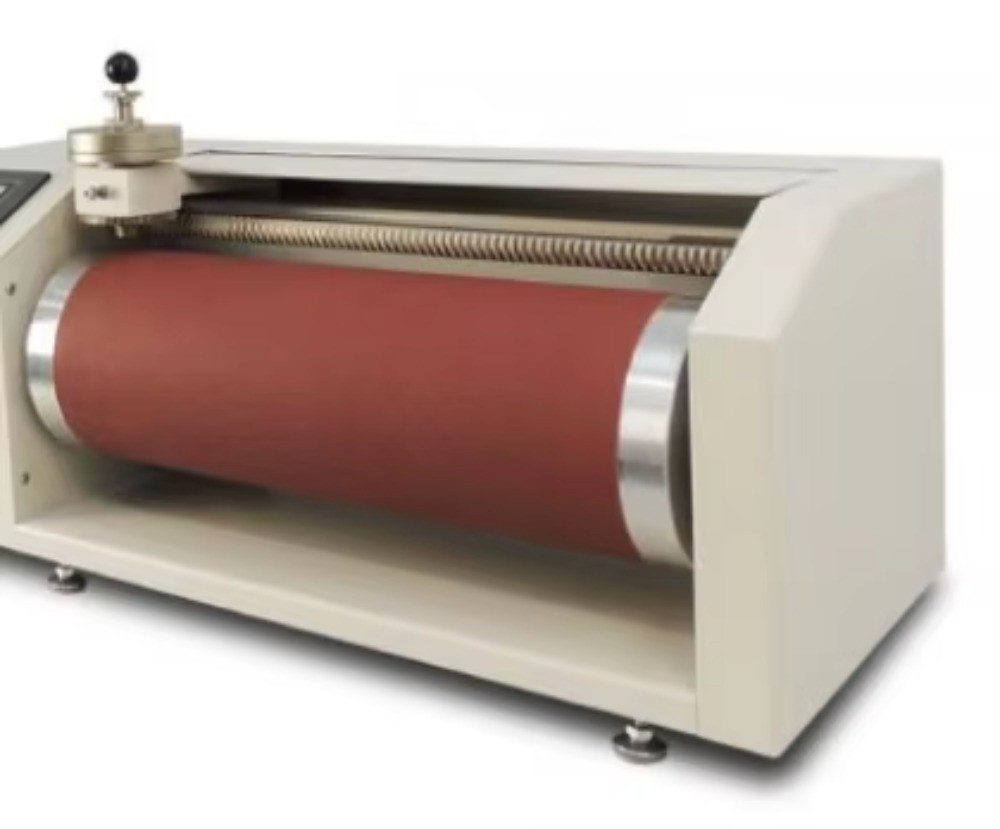

DIN Abrasion Tester

Product Item : ZYAT-460
Category： Other
Abrasion Tester
DIN Abrasion Tester
DIN Abrasion Testing
Rubber Abrasion Testing
Product description：DIN Type Abrasion Tester is to measure the abrasion resistance of rubbers (vulcanized thermoset rubbers and thermoplastic elastomers) that are subject to abrasive/frictional wear in their actual servi
INQUIRY

Application:

DIN Type Abrasion Tester is to measure the abrasion resistance of rubbers (vulcanized thermoset rubbers and thermoplastic elastomers) that are subject to abrasive/frictional wear in their actual service, such as tires, conveyor drive belts, and shoe soles.

Standard:

ASTM D5963: Standard Test Method for Rubber Property—Abrasion Resistance (Rotary Drum Abrader)

Standard features:

Item	Specification
Specimens size	16mm, 6-15mm (D)
Fixture load	2.5N
Weight load	2.5N,5N
Fixture lateral displacement	4.2mm/hoop each lap
Wheel diameter	150mm
Wheel length	460mm
Wheel rotate speed	40rpm
Abrasion speed	0.32m/sec
Dip angle	3°the angle of the specimen back shaft with vertical roller face
