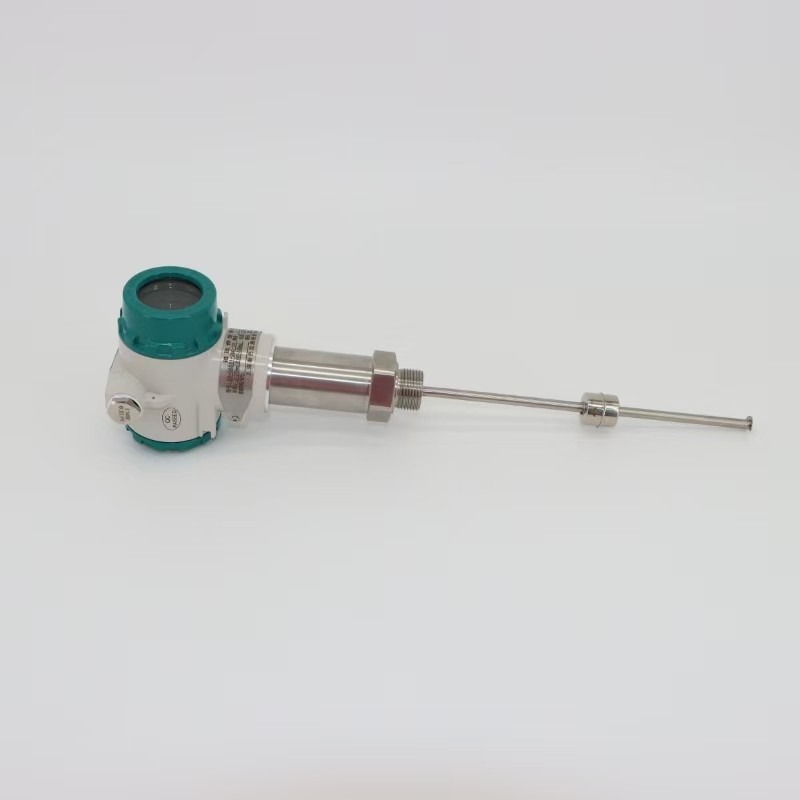

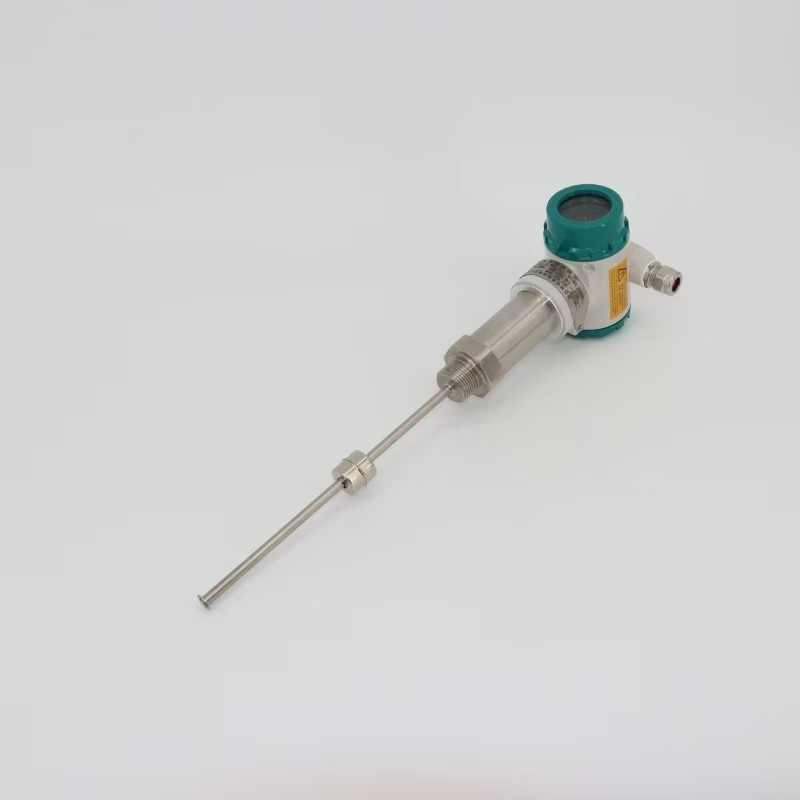

Magnetostrictive Level Transmitter

Product Item : ML-20
Category： Other
Magnetostrictive Level Transmitter
Product description：This magnetostrictive liquid level gauge is an electrical device specially used in explosive gas environments. In order to work safely, reliably, stably and accurately, the following items should be p
INQUIRY

Magnetostrictive Level Transmitter Introduction

This magnetostrictive liquid level gauge is an electrical device specially used in explosive gas environments. In order to work safely, reliably, stably and accurately, the following items should be paid attention to during installation and use.

The magnetostrictive liquid level gauge is a new type of explosion-proof liquid level gauge developed based on the Weidmann effect of magnetostrictive materials. It can provide high-speed, reliable, accurate and continuous position signals in explosive gas environments. The liquid level gauge can measure the absolute position of one or more floating balls at the same time, and output in the form of analog or digital, and the analog output is two-wire 4-20mA+Hart; the digital output adopts RS485 (Modbus protocol) serial communication.

Liquid level gauges allow one or more floats to measure simultaneously. The floating ball can be suspended on the liquid-gas interface and liquid-liquid interface in the liquid tank respectively, and move with the interface, so as to realize the real-time detection of the liquid-gas or oil-water interface and the water level in the tank.

The measuring rod part of the magnetostrictive liquid level gauge includes rigid measuring rod, flexible measuring rod and other types of measuring rods, which can meet the requirements of harsh chemical industry environments such as volatile and corrosive. The liquid level gauge has multi-liquid level (interface) synchronous detection capability, and has great advantages in chemical reaction kettles, tanks, oil depots, oil tanks and other occasions with multi-liquid level interfaces.

Magnetostrictive Level Transmitter Features

1. Support multi-level synchronous detection, high precision and high repeatability 2. Continuous measurement, absolute position output, no need to return to zero when restarting
3. Supports 5-point temperature measurement
4. On-site display for easy maintenance
5. Easy to use, with a variety of output methods
6. Long service life, stable and reliable performance
7. Low power consumption design, effectively reducing system heat
8. Electrical for explosive gas atmospheres

Magnetostrictive Level Transmitter Technical Data

Output	2-wire 4-20mA+Hart	Modbus
Output parameters	Liquid level, interface, temperature, liquid level difference
Effective range	Hard rod: 100~6000mm; flexible rod: 1000~22000mm
Number of measurement points	1, 2	3
Resolution	16-bit D/A	Up to 0.1mm
Non-linear error	≤ ±0.05% of full scale
Repeatability	≤ ±0.01% of full scale
Value error	≤ ±0.1% of full scale
Temperature performance	≤100ppm/℃
Response time	100ms
Working voltage	Rated working voltage: 24Vdc; normal working voltage: 10~30Vdc
Operating current	<25mA (varies with range size)	<50mA (varies with range size)
Load characteristics	power supply 24V, current output Maximum load 500Ω	-
Protection class	IP67
Measurement blind zone	Upper blind zone can be none; lower blind zone minimum 20mm; blind zone of float height
Temperature	Ambient temperature: -40℃～+70 ℃. Medium temperature: -40℃～+70℃ (common type); -40℃～+200℃ (high temperature type)
Electronic bin material	Aluminum alloy, stainless steel 304
Medium density	≥500kg/m3
Material of measuring rod	Stainless steel 304, 316, other materials can be customized
Pressure-bearing characteristics	Rated 1.6mpa, can be customized
Process interface	Thread or Flange
Electrical interface	2pcs M20*1.5
Operating environment	Outdoor, indoor
Overpressure protection	36V
Polarity protection	Diode in series
Electromagnetic compatibility	Comply with GB 21117-2007-T
Insulation resistance	20M（100V）
Dielectric strength	500V
Other functions	5-point temperature measurement; with field display and setting function
Explosion-proof mark	Ex d ⅡB T6 Gb
