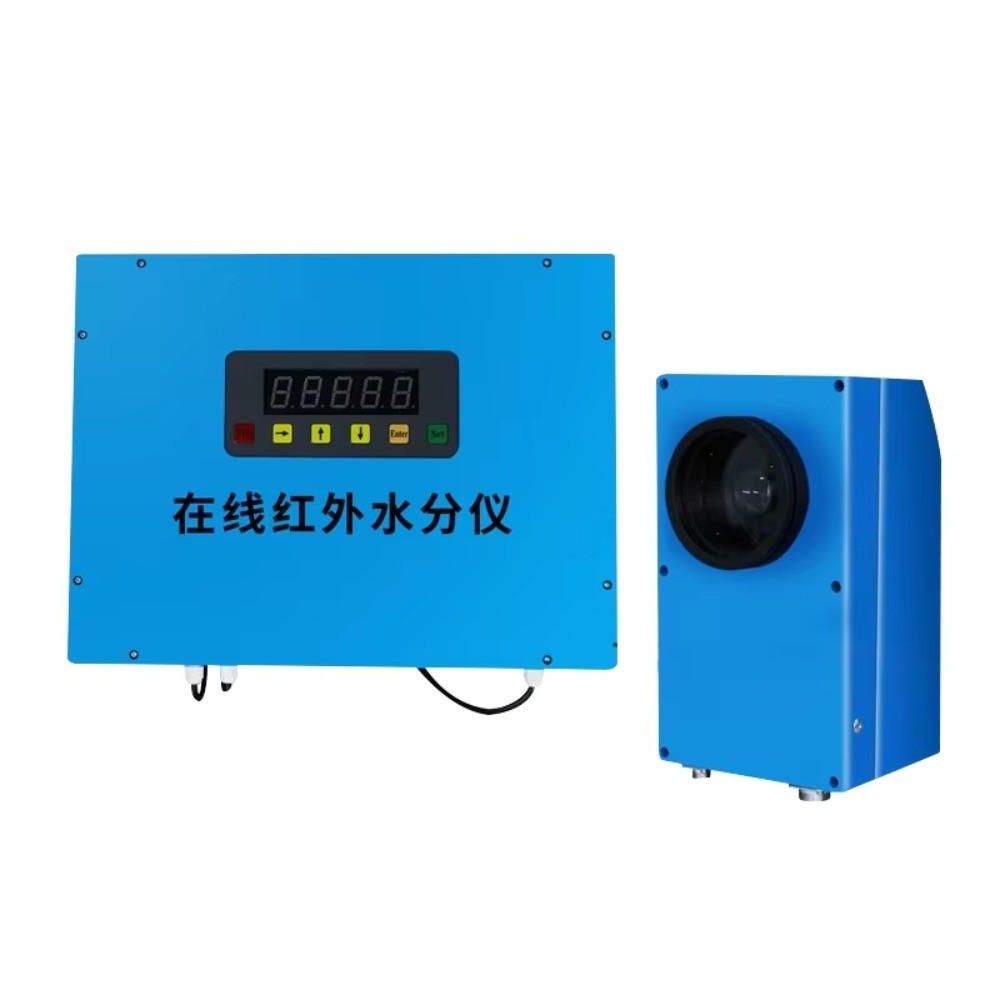

NIR Online Moisture Tester

Product Introduction

Hydrogen and oxygen bonds in water molecules absorb specific wavelengths of near-infrared. At a given wavelength, the reflected NIR energy is inversely proportional to the NIR energy absorbed by the water molecules in the material. The volume is calculated based on energy loss. Moisture content of the material.

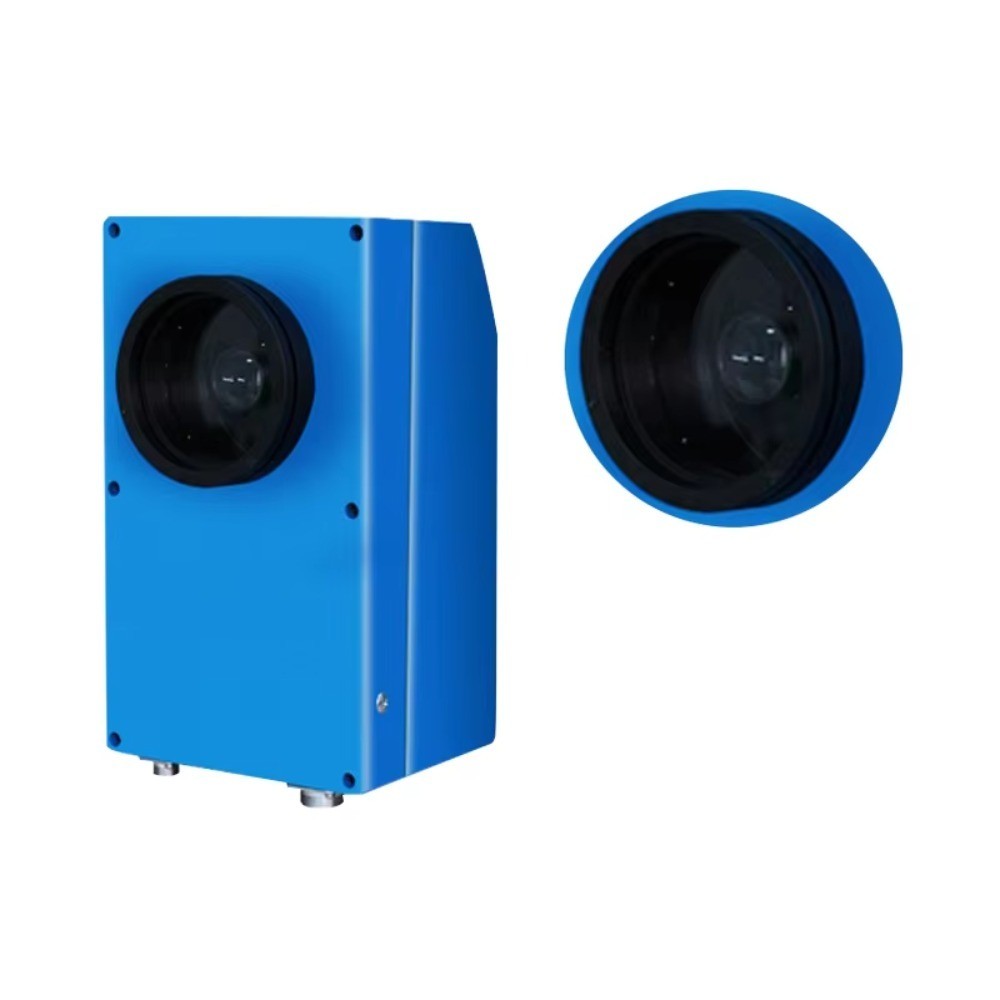

The device probe is an intelligent component that performs all system measurement and processing functions in-house and outputs calibrated measurements directly. It can also generate display content on microcomputers and touch computers.

Technical Data

1. Measuring range: 0 -- 1%

2. Accuracy: ≤ ± 0.001%

3. Distance between test equipment and material: 250 ± 100 mm

4. Ambient temperature: -30~50 °C

5. Working humidity: 5-90%

6. Repeatability: 0.1%

7. Response time: 0.3-30 seconds (adjustable)

8. Filtration range: 0-2.5%

9. Power supply: AC 220 volts 50 Hz

10. Device power: 150W

11. Light interference: Changes in ambient light intensity do not affect the measurement results

12. Temperature effect: Automatic temperature compensation.

13. Dimension: 44 x 34 x 29 cm
