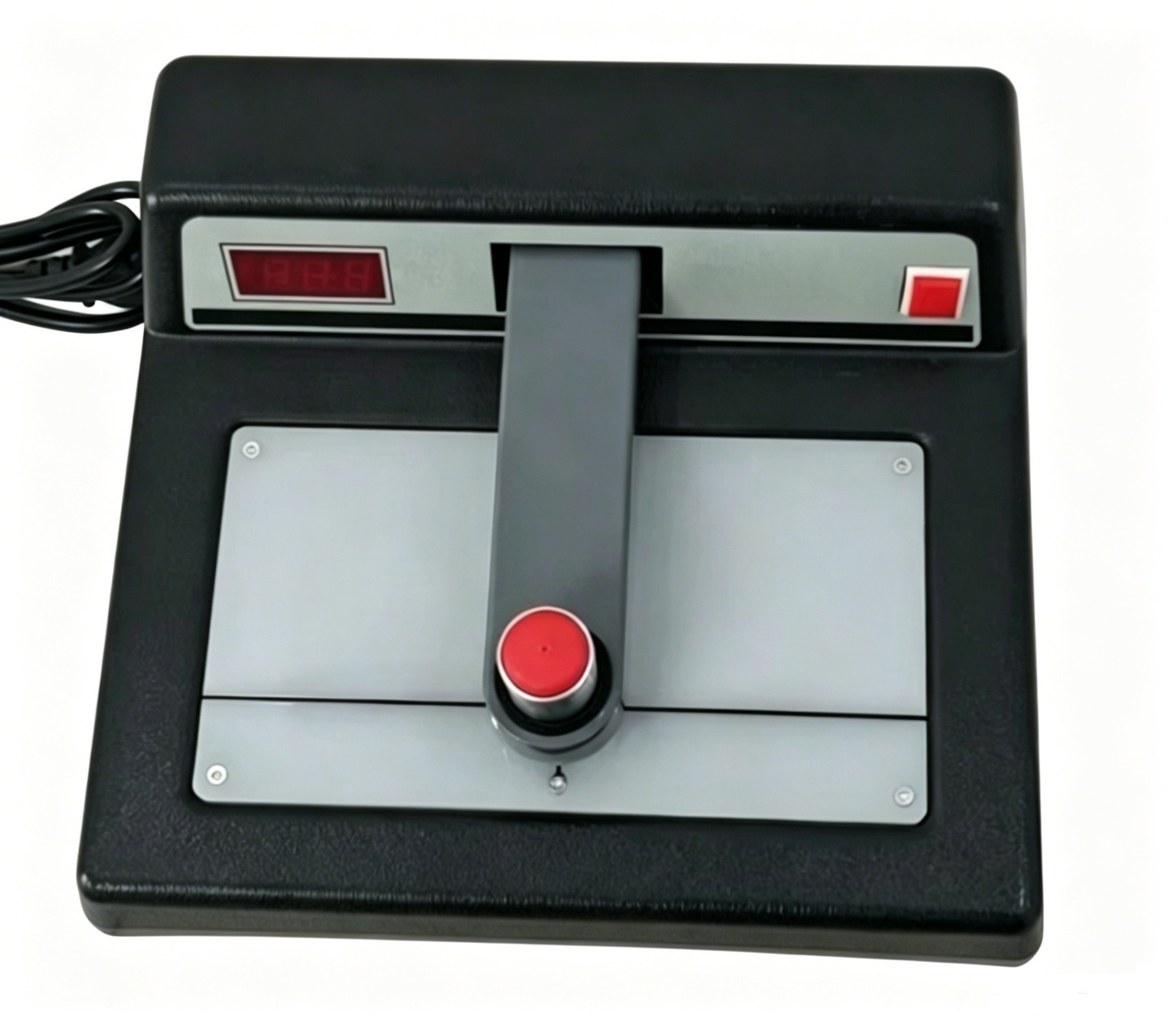

Optical Densitometer Transmission Density Measurement

Product Item : ZY-3012
Category： Film Physical Performance
Transmittance Densitometer
Densitometer
transmission densitometer
Product description：ZY-3012 Transmission densitometer has a series of advantages such as accurate reading, good stability and convenient operation. It can be widely used in nondestructive testing, photosensitive material
INQUIRY

ZY-3012 Transmission densitometer has a series of advantages such as accurate reading, good stability and convenient operation. It can be widely used in nondestructive testing, photosensitive materials, film, printing, medical treatment and other industries. Every instrument has passed the factory inspection of the standard densitometer provided by the Chinese Academy of metrology. Every instrument is equipped with a standard densitometer to verify the accuracy of the instrument.

Its design and technical standard specifications comply with the provisions of GB / T 11500-2008 / ISO 5-2:2001 (photographic density measurement part II geometric conditions of transmission density), GB / t11501-2008 / iso5-3:1995 (photographic density measurement part III spectral conditions) and ASTM E 1079-05. It is an optical density testing instrument in accordance with ISO and ASTM standard. Each instrument can be equipped with a calibration density film, and its value can be derived from the National Visual diffuse transmission density standard.

Technical Data

No	Parameter	Value
1	Density range	D = 0.00 ~ 6.0D
2	Aperture size	Φ 2.0mm
5	Reading stability	± 0.02
6	Inaccuracy	0.03d
7	Medium thickness	0-10mm
8	Weight	2kg
9	Display mode	three-digit display
10	Sampling time	0.05s
11	Working environment	temperature 0-40 ℃, relative humidity ≤ 85%
12	Power supply	50-60Hz 220V ± 10%
13	Power	About 25W
14	Size	300 × 270 × 140mm （L ×W × H)
