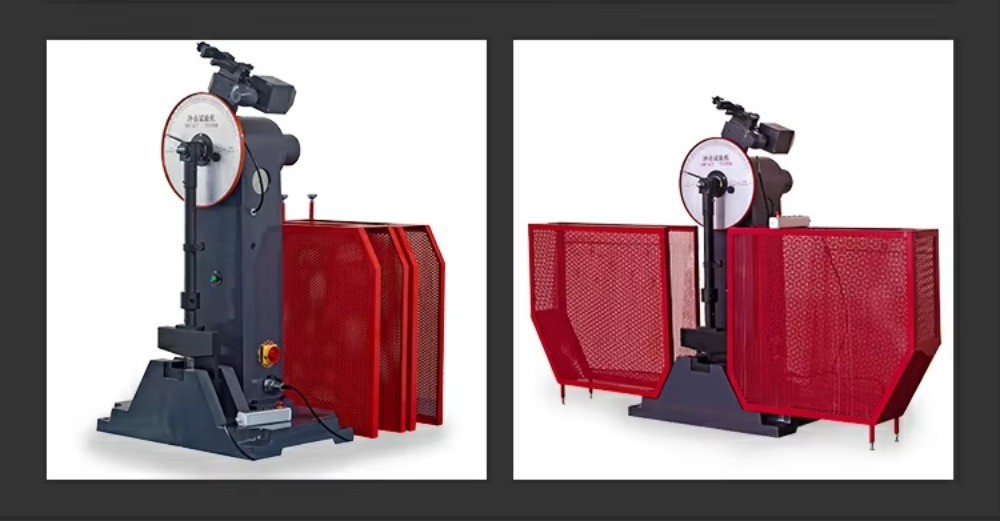

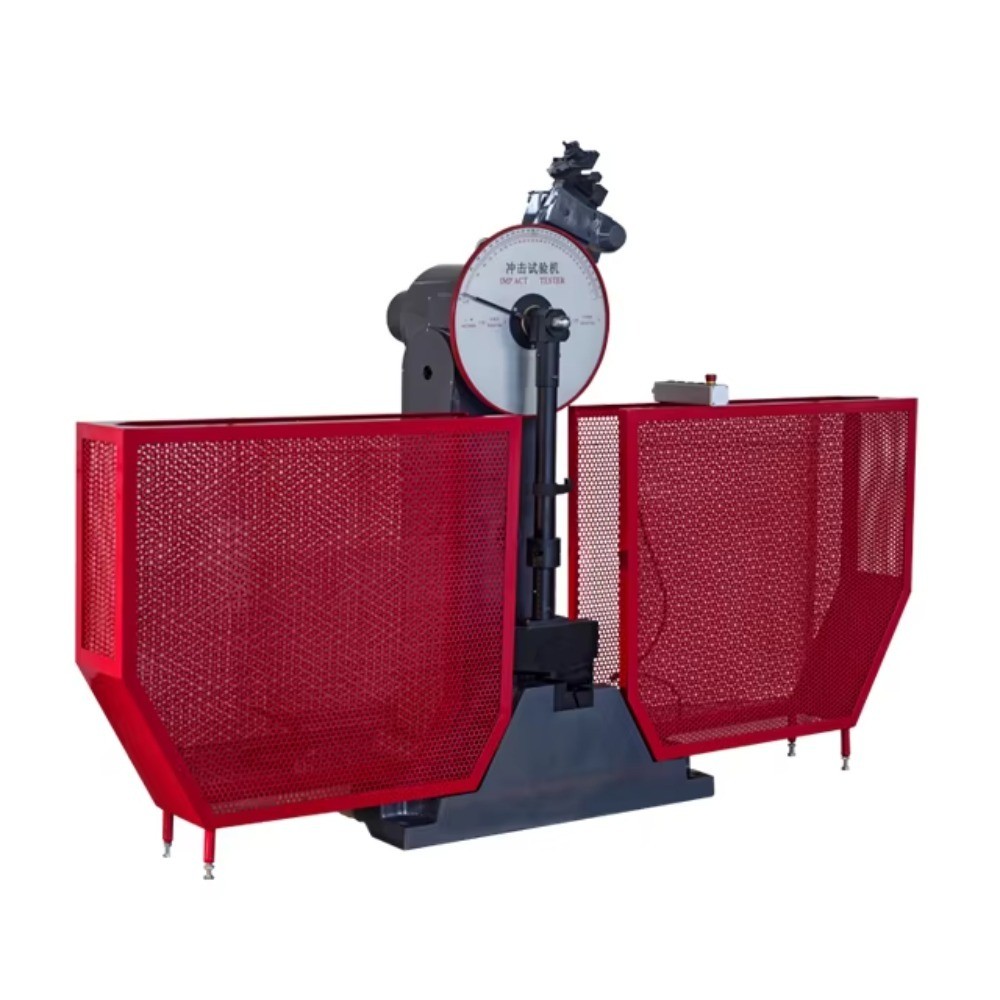

Pendulum Impact Testing Machine

Product Item : PT-300
Category： Other
Impact Testing Systems
Impact Testing Machine
Impact testers
Pendulum Impact Testing Machine
Product description：This impact tester is an instrument for testing the impact resistance of metal materials under dynamic loads. It can continuously conduct a large number of metal impact tests. It adopts full automatic
INQUIRY

Product Introduction and Application

This impact tester is an instrument for testing the impact resistance of metal materials under dynamic loads. It can continuously conduct a large number of metal impact tests. It adopts full automatic control. The control system uses programmable logic controller (PLC) to control the whole process of swing taking and impact test through computer software program. Show the impact absorbing power, the rotation angle of the pendulum and print the test report. By equipping cryogenic tank, the test can be carried out at room temperature to - 60 degrees. It is an indispensable test instrument for metallurgical, mechanical manufacturing and other units, as well as for the research of new materials in scientific research units.

Related standards: ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007, ASTM E23-07a, GB/T 18658-2002, JJG 145-2007 etc.

Technical Data

Model	PT-300	PT-500	PT-800
impact energy	150/300J	250/500J	500/800J
The distance between the pendulum shaft and impact point	750mm	850mm	800mm
Impact speed	5.2m/s	5.4 m/s	5.9m/s
Pre-rising angle of the pendulum	150°
Specimen bearer span	40+0.2mm
Round angle of the jaw	R1-1.5mm
Round angle of impact edge	R2-2.5mm,R8±0.05mm
Angle accuracy	0.1°

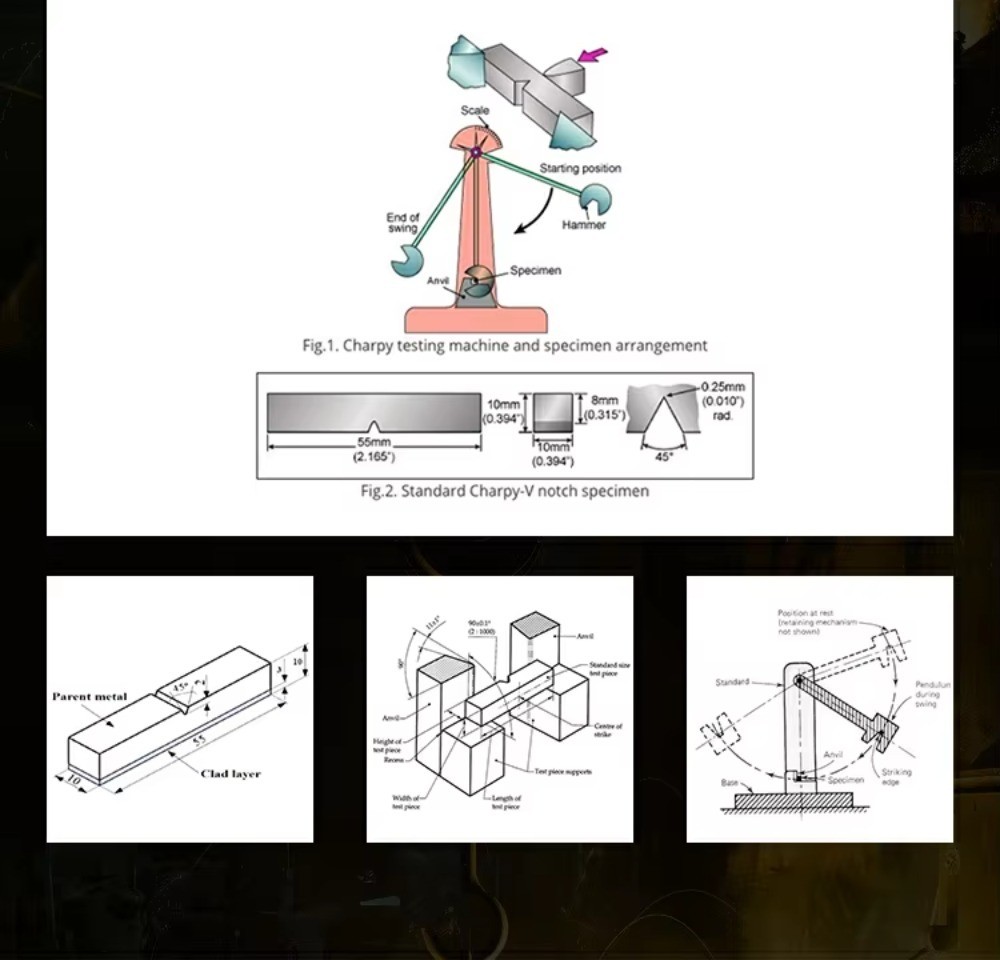

Standard specimen dimension	10mm×10(7.5/5)mm×55mm
Power supply	3phs, 380V, 50Hz Or 220V,60Hz
Dimensions (mm)	2124 x 600 x 1340	2200 ×650 ×1960	2450 x 1200 x 2455
Net Weight (kg)	450	650	2300
