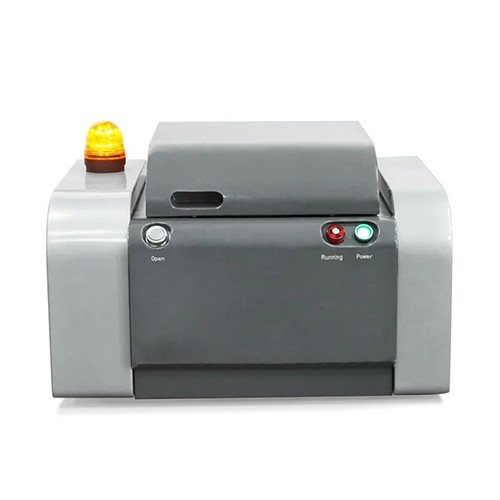

ROHS X-ray Fluorescence Machine

Product Item : ZY-XF
Category： UV Spectrophotometer & Spectrometer
X-ray Fluorescence Machine
ROHS machine
ROHS testing machine
ROHS testing machine price
Product description：Unique Rohs Machine can complete the detection and analysis of harmful elements on site. Minimization brings about environmental pollution and health hazards. The analyzer ensures no radioactivity and
INQUIRY

Unique Rohs Machine is currently the world's smallest volume, identify the fastest, most functional, most accurate, RoHS and harmful elements of the reliability of identification (PMI) and validation of the multi-purpose X-ray fluorescence Analyzer.

The Rohs X-ray Fluorescence analyzer not only shortens the testing time, but also reduces the cost of analysis.
Unique Rohs Machine can complete the detection and analysis of harmful elements on site. Minimization brings about environmental pollution and health hazards. The analyzer ensures no radioactivity and a variety of selectable filters. Instant transmission and readings, the main components of which are a tiny X-ray tube and a high-resolution detector. In order to ensure the quality of analytical inspection, the test time can be completed in 20 seconds.

Usage

Lement measuring range is from Na to U, which can test Pb, Cd, Hg and PBB in the RoHS regulations; Br in PBDE; Cr in Cr6+; Cl and Br in the Halogen-free regulations. It can completely meet the control demand of RoHS/WEEE/Halogen-free.

Technical Data

Item	Parameter
Sample cavity size	30030080mm
Element range	S-U
Measuring scope	1ppm-99.99%
RoHS test limit	Pb≤5ppm,Cd/Cr/Hg/Br≤2ppm,Cl≤50ppm
Sample type	Solid, powder and liquid
Measuring time	120-400s ( software auto adjustment )
Collimator	Φ2mm,Φ5mm
Filter sheet	8 compound filter sheet switch automatically
CCD observation	1.30 Million pixel HD CCD
Sample micro scope	XY8mm
Stability	Repeatability error＜0.1% for multi-measurement
Input power	1-PH, AC220V～240V，50/60Hz
Rated power	350W
Weight	approx 48Kg
Instrument size	640(W)x450(D)x412(H)mm
