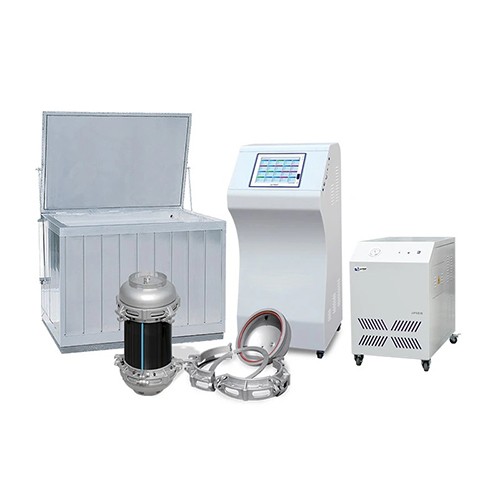

Pipeline Hydrostatic Pressure Tester

Product Item : ZY-HPT901
Category： Plastic tester machine
Pipeline hydro testing
Pipeline Hydrostatic Testing
Pipeline Hydrostatic Pressure Tester
Hydrostatic Pressure Tester
Product description：Hydrostatic Pressure Tester is mainly used to determine the resistance of thermoplastics pipes and short-time hydraulic burst to constant internal water pressure at constant temperature.
INQUIRY

Pipeline hydrostatic pressure tester is mainly used to determine the resistance of thermoplastics pipes and short-time hydraulic burst to constant internal water pressure at constant temperature. It is applicable to thermoplastic pipes intended for the conveyance of fluids. It is suited to various pipe specimens.

Test standard

ISO1167, ASTM D1598, ASTM D1599, ISO10508 and the equivalent.

Technical Data

Max. pressure (A)	0: 10Mpa, 1: 16Mpa , 2: 20Mpa , 3: 25Mpa … Max. pressure can up to 200Mpa
Test stations (BB)	03: 3 stations, 05: 5 stations, 10: 10 stations, 15: 15stations … Max. test stations number can up to 100 stations
Pipe diameter range	Φ2-Φ2000mm
Pressure resolution	0.001Mpa (0.01bar or 1PSI)
Timing range	0-10000h
Time resolution	1s
Timing mode	Counter-up, counter-down
Control method	LED + PC	Touch screen (Industrial PC)
Test result storage	Storage and print through PC	Data exported to USB, then print by another PC
Pressure supply unit	Select suitable pressure supply unit for different models of pressure control unit.
	1. With the property of high pressure and capacity;
	2. Automatic water compensation to avoid the pump being damage due to lack of water;
	3. Low noise;
	4. Protection system for electricity leakage or water shortage.
Power supply	Pressure control unit: (220-15%～220+10%)VAC 50Hz 0.5KW
	Pressure supply unit: (380-15%～380+10%)VAC 50Hz 5.0Kw Three phase five wire
