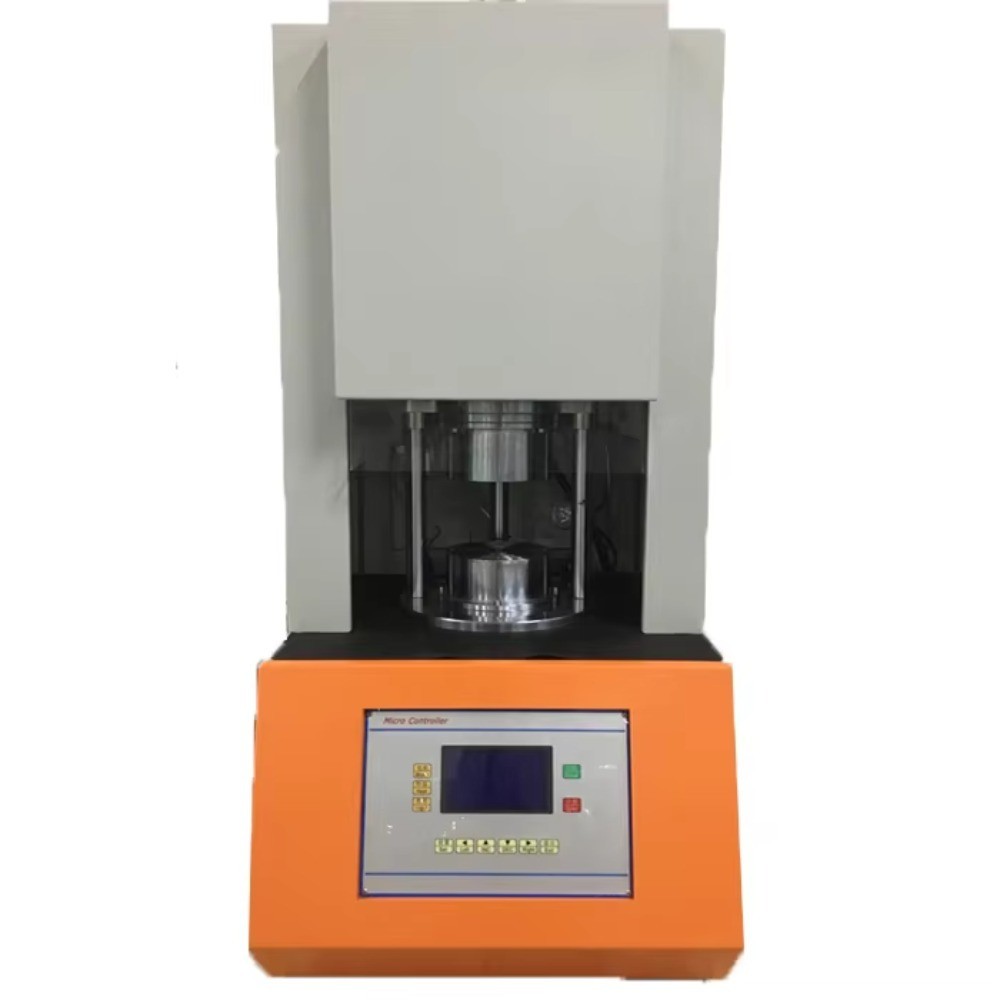

Rubber Viscosity Tester

Product Item : RVT-3020
Category： Viscosity
viscosity tester
rubber viscosity tester
Product description：It is designed to determine the viscosity, coking and vulcanization index of raw rubber or rubber. Computer control, data display, automatic calibration, is an ideal experimental equipment for rubber
INQUIRY

Product Introduction

It is designed to determine the viscosity, coking and vulcanization index of raw rubber or rubber. Computer control, data display, automatic calibration, is an ideal experimental equipment for rubber industry and scientific research units. Imported intelligent digital temperature controller, simple adjustment and setting, wide temperature range. The microcomputer adopts imported chips, which have high reliability, and all data can be automatically calculated and printed.

Technical Data

Model	RVT-3020	RVT -3021
Temperature fluctuations in the mold	Room temperature ~ 200 °C
Temperature fluctuations in the mold	±0.5℃	±0.1℃
Temperature display resolution	0.1℃
Rate of temperature rise	Room temperature ~ 100 °C for about 6-10 minutes	Room temperature ~ 100 °C for 6-10 minutes
Torque measurement range	0-200 MV
Mooney test accuracy	± 0.5MV	± 0.2MV
Torque resolution	0.1MV
Rotor frequency	2 ± 0.02 rpm
Temperature PID control	± 0.1 °C
upper and lower parts	Separator plate temperature control
power supply	220 V, 1 phase, 50Hz 680W
size	5605801160 mm
weight	About 300 kg
