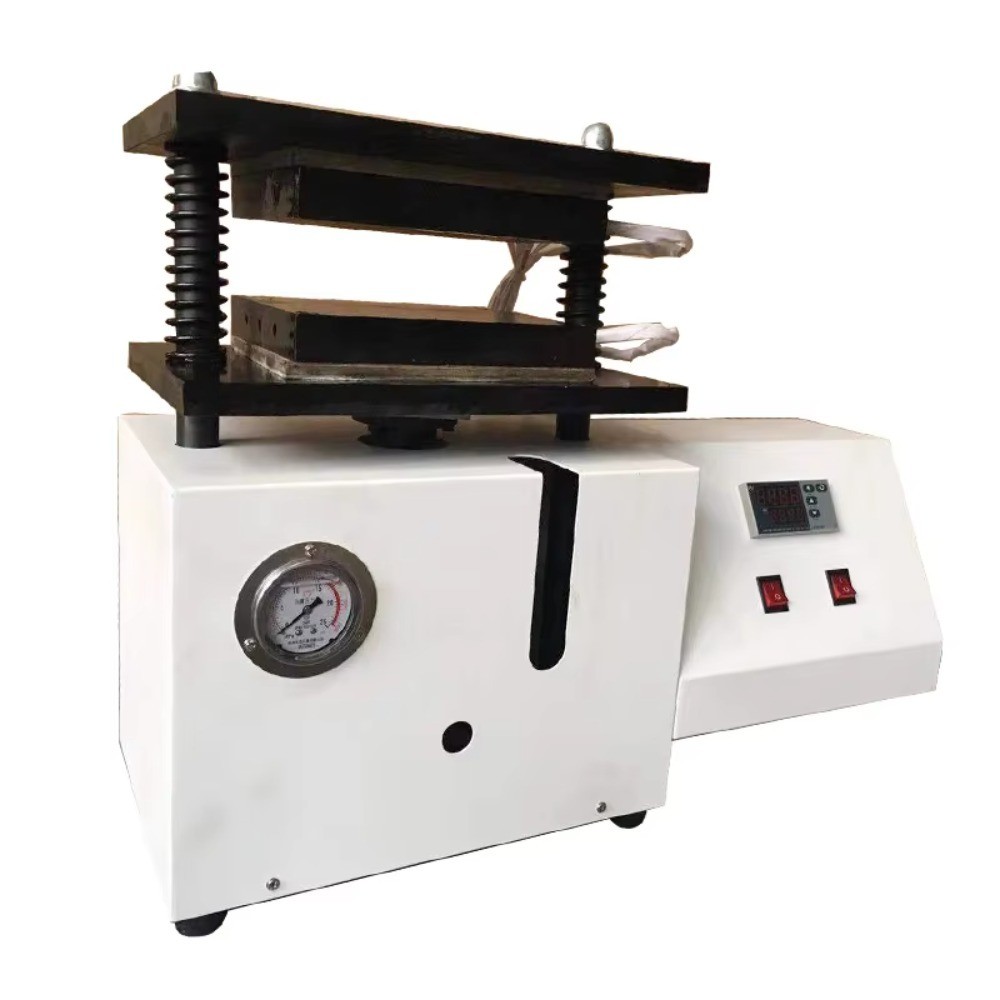

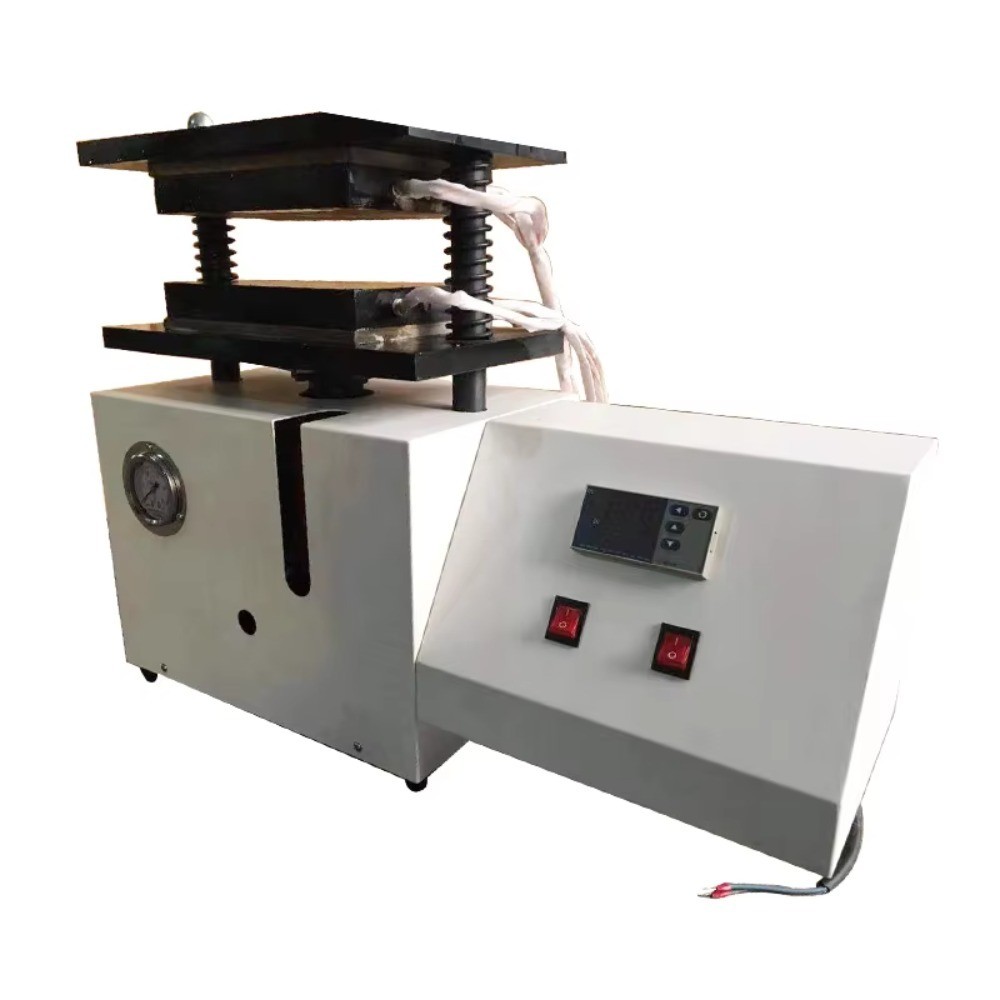

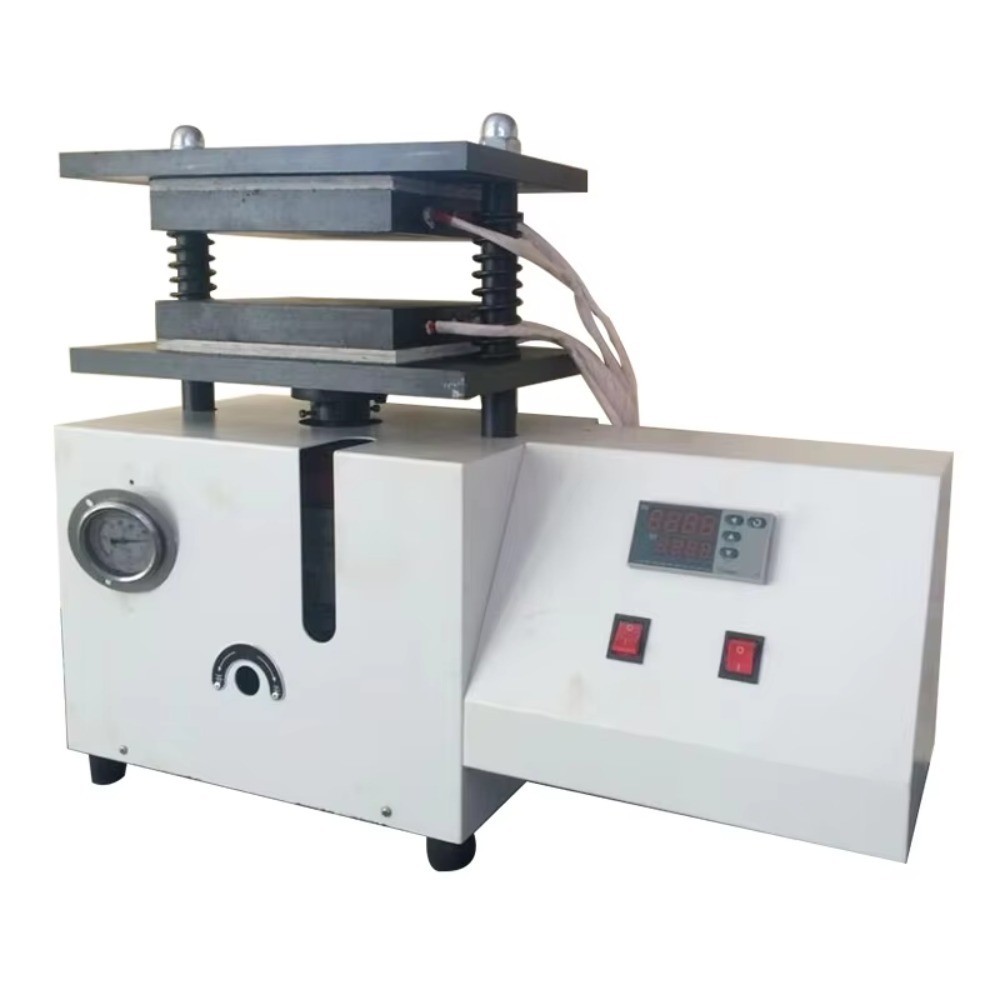

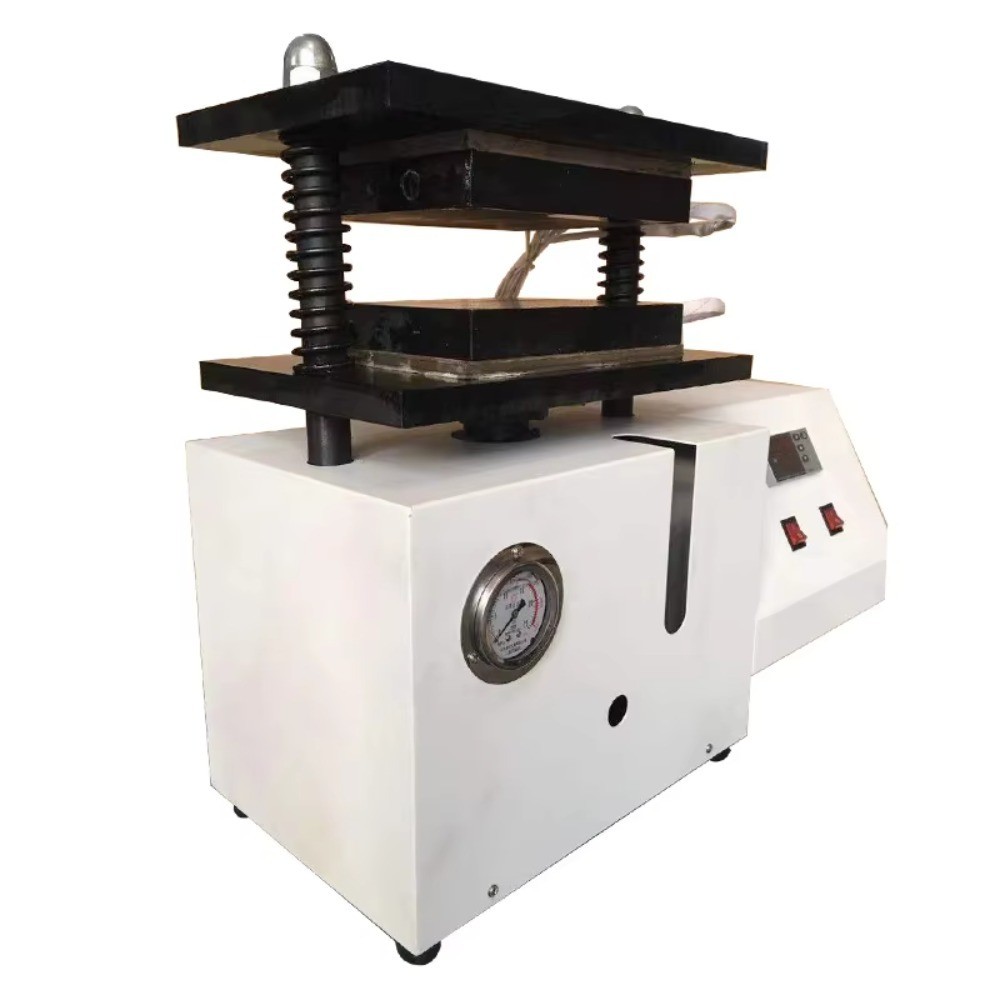

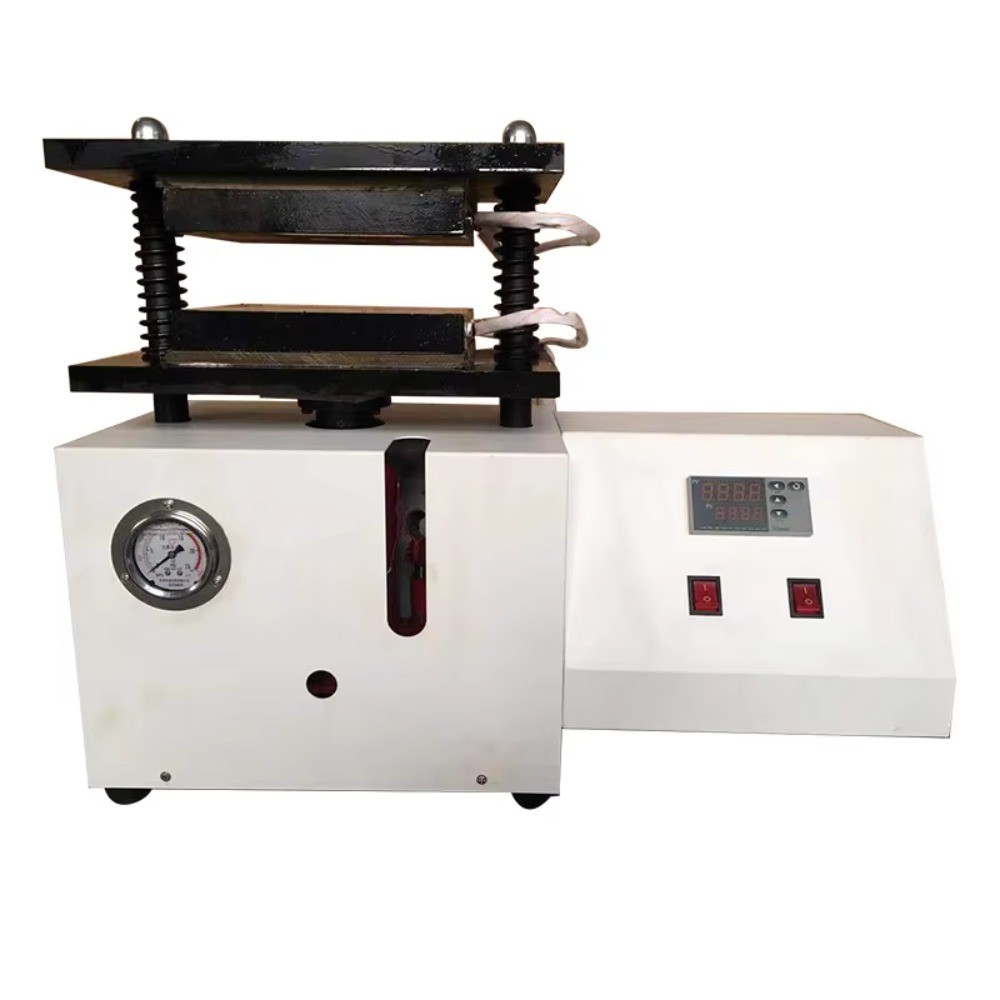

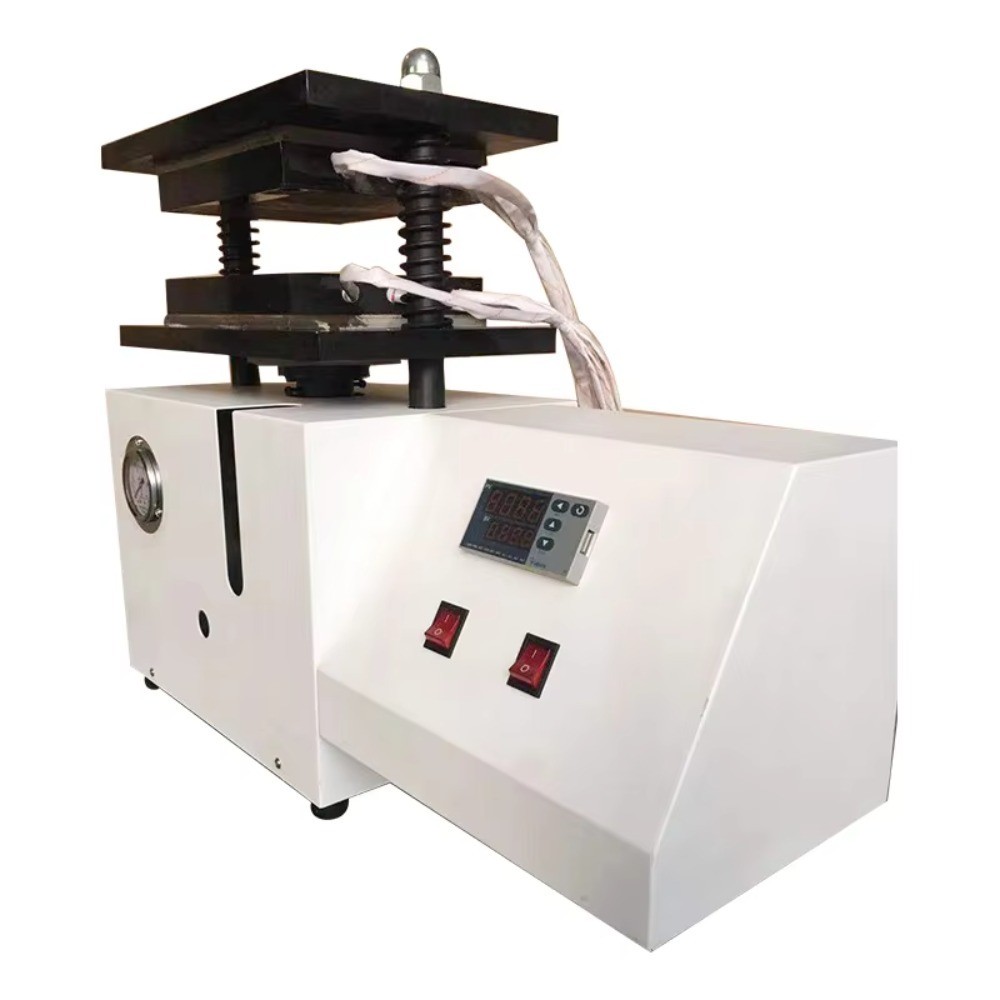

Rubber Vulcanizing Machine

Product Introduction

The vulcanizing machine is a relatively advanced pressure forming equipment, which is suitable for the pressing of various plastic products, especially the pressing of raw materials and returned materials.

This machine has the following features:

1. The electric heating is controlled by the temperature indicator regulator, the temperature control accuracy is high, the temperature display is intuitive, and the adjustment is convenient.

2. Manual hydraulic device is used to ensure the rapid rise of the hot plate and save energy.

3. Convenient, safe and fast sampling

The main engine is composed of three parts: fuselage, hydraulic device and electrical control.

Product Structures

1. The fuselage assembly is made of a base, hot plate, etc., and two columns bear 12t pulling force.

2. Manual hydraulic device controls the movement of the hot plate, such as rising and falling, and keeps the pressure constant.

3. Electrical System and Flat Panel Heating System: Used for heating and temperature control

Technical Data

1. Hydraulic system pressure: 15Mpa

2. Plunger Max Stroke: 100mm

3. Hot plate size 150 × 150 mm

4. Number of hot plates: 2pcs

5. Distance between hot plates: 50 mm

6. Total electric heating power: 3.0Kw

7. Maximum operating temperature: 300°C

8. Net weight: about 60 kg
