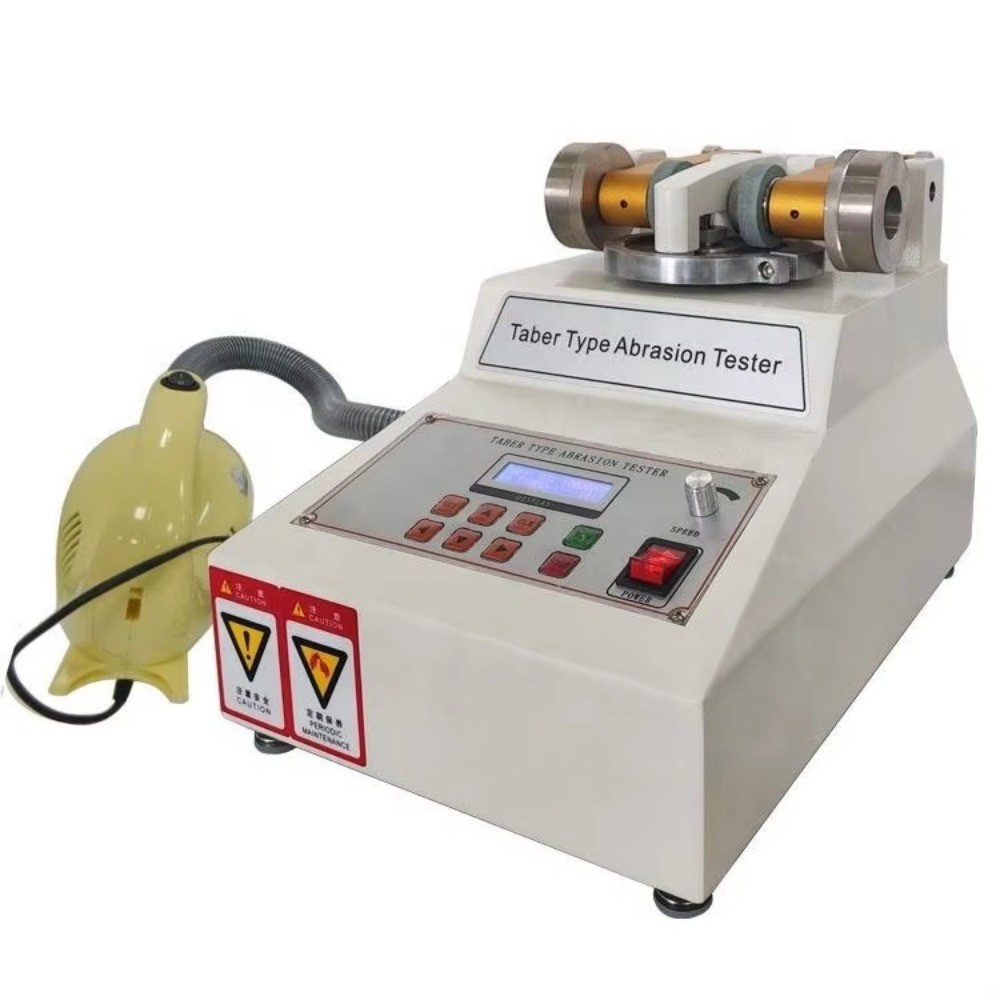

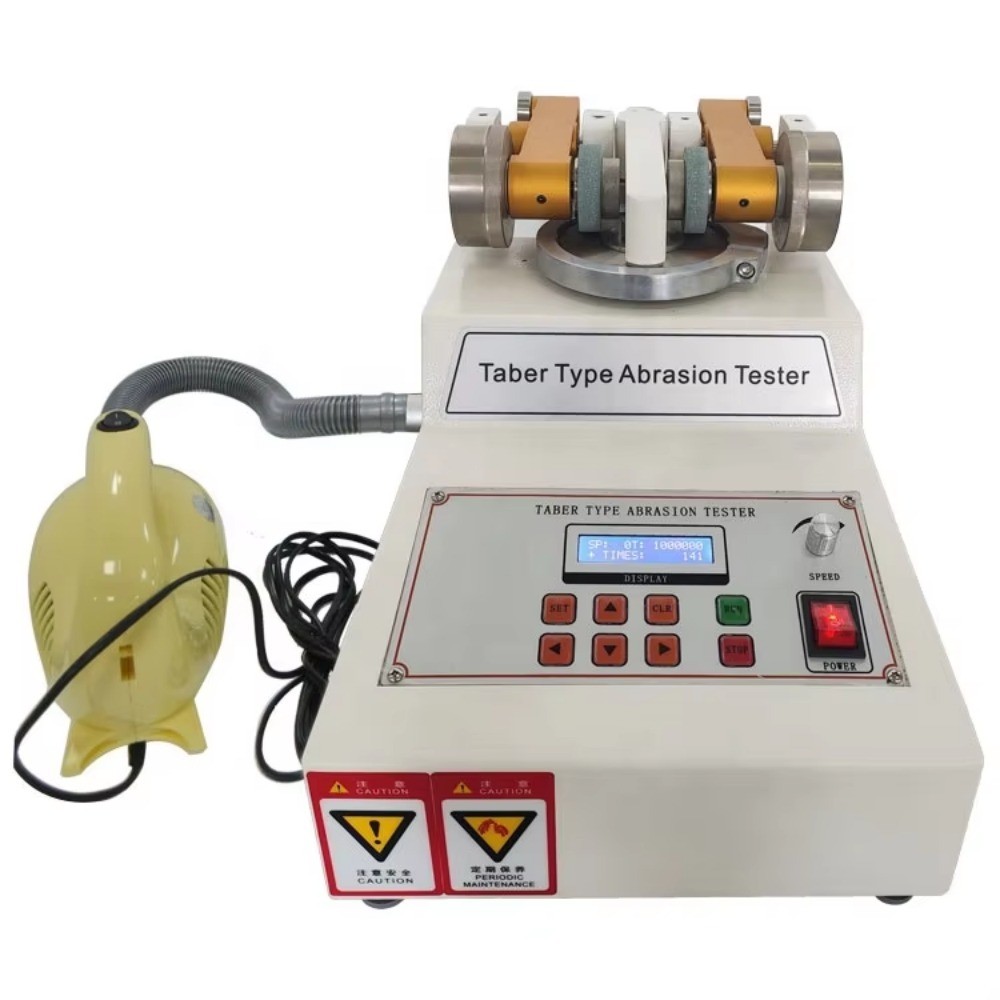

Taber Abrasion Tester

Product Item : ZYTA-1000
Category： Textile Testing Equipment
Taber Abrasion Tester
Taber Wear & Abrasion Testers
Taber Abrasion Machine
Taber Abrasion Tester Price
Product description：It is used for testing the wear-resistance of skin, leather, cloth, paint, paper, flooring, plywood, glass, and natural rubber. The method is using the standard knife to cut the specimen, and then usi
INQUIRY

Product Introduction

It is used for testing the wear-resistance of skin, leather, cloth, paint, paper, flooring, plywood, glass, and natural rubber. The method is using the standard knife to cut the specimen, and then using the regulated models of grinding wheel with loading weight to be abrased. Remove the specimen after rotation to reach a certain number, and then observe the condition of the specimen or compare the weight with the previous materials.

Technical Data

Grinding wheel model	H18, H22, CS10, CS17, S32, S33
Abrasion wheel Center distance	63.5mm
Abrasion wheel and specimen distance	37, 38 mm
Test Speed	60 R.P.M
Test Load	250g, 500g, 750g, 1000g
Times setting	0 ~ 999999 times setting automatically shut down
Auxiliary accessories	specimen cutters, grinding wheels, pre-sanding paper, and vacuum cleaners.
Dimension	533231cm
Weight	20 kg
Power	AC 110V / 60Hz or 220V / 50Hz 2A
