Softening Point Test Machine

Product Item : ZYSP-300
Category： Other

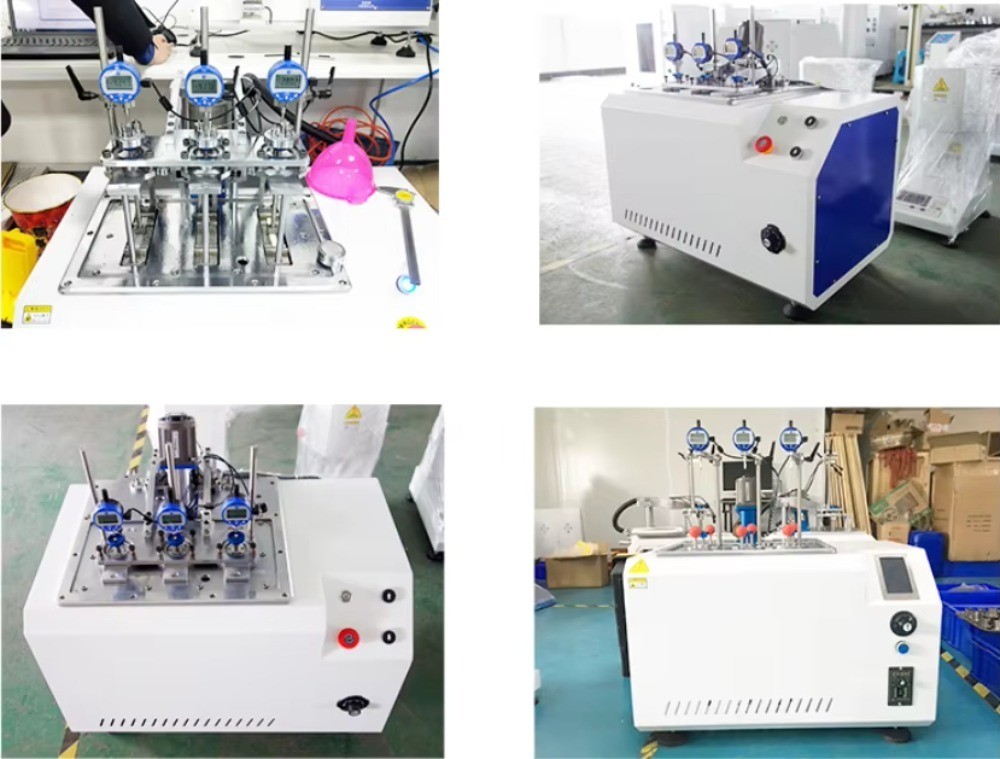

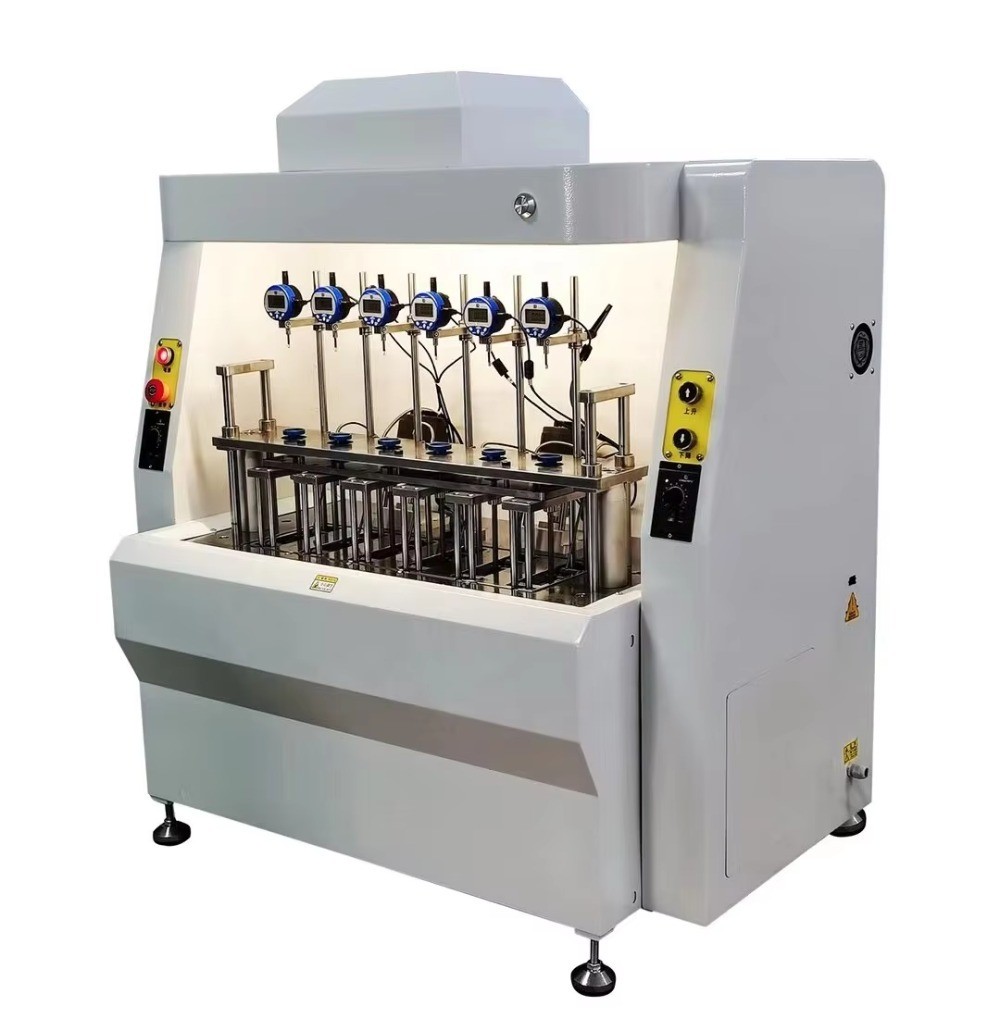

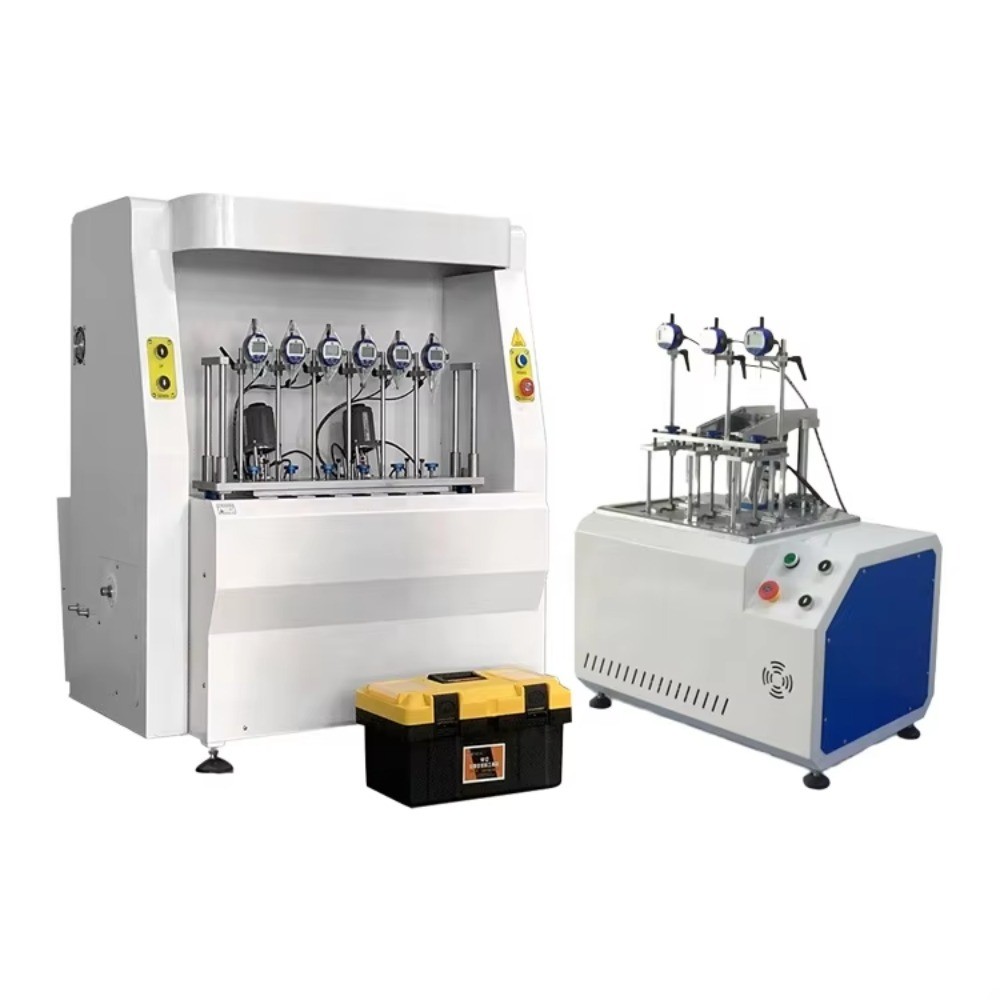

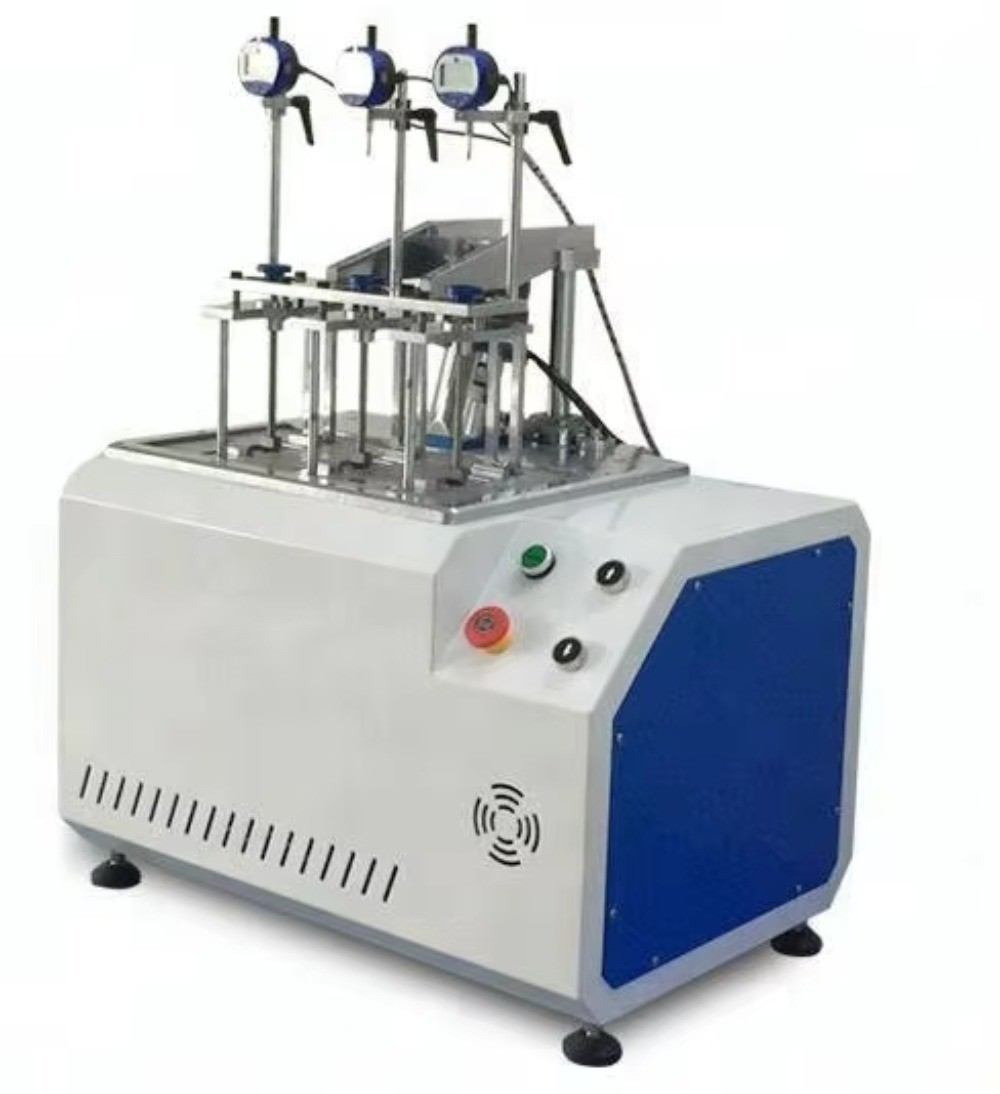

Softening Point Test Machine
Softening Point Tester
Product description：It is mainly used for non-metallic materials such as plastics, rubber, nylon, etc., which has the function of lifting or lowering the test frame at the beginning or end of the test. Determination of t
INQUIRY

Product Introduction and Application

It is mainly used for non-metallic materials such as plastics, rubber, nylon, etc., which has the function of lifting or lowering the test frame at the beginning or end of the test. Determination of thermal deformation temperature and Vicat softening point temperature of electrical insulating materials.

Technical Data

Temperature range	Room Temperature to 300℃
Maximum temperature indication error	0.1℃
Temperature indication precision	±0.5℃
Maximum deformation indication error	±0.001mm
Deformation measurement range	0—10mm
Sample holder number	3 sets, 6 sets
Weight of load bar and tray	68g
Test span range	According to Standard (64 or 100mm)
Heating medium	Methyl silicone oil or transformer oil (The conventional flash point is 260 ℃, the high-temperature type needs to be provided by the customer).
Cooling method	More than 150 ℃(natural cooling) less than 150℃ (water or natural cooling)
