Variable Pressure Block Tester

Variable Pressure Block Tester Introduction

The Variable Pressure Block Tester VPT-80 is a benchtop manual compression test instrument, widely used for compression resistance, spring load test, material compression deformation test, pellet pressing, small sample pressure test in laboratories, new material R&D, rubber & plastic, composite materials, pharmacy and new energy industries.

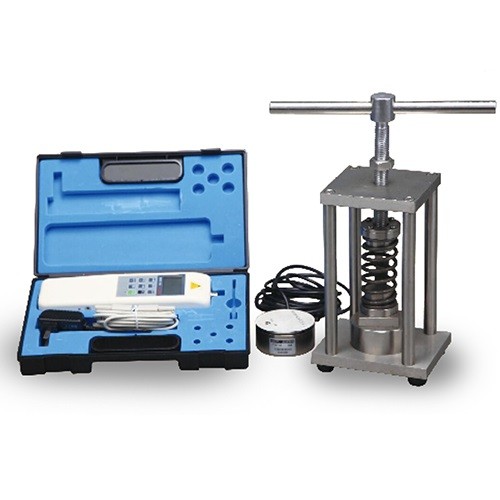

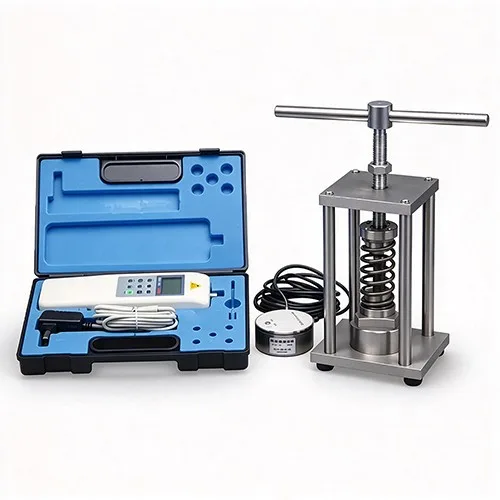

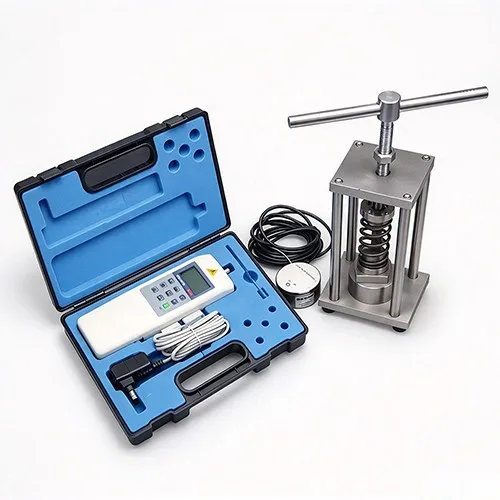

It adopts manual screw loading structure, matched with a high-precision digital force gauge and circular pressure sensor, enabling stable, controllable and real-time pressure reading. Compact structure, easy operation, no air source or hydraulic station required, ideal for small-batch sample testing and laboratory routine quality inspection.

Variable Pressure Block Tester Working Principle

Place the test sample between the upper and lower pressure plates. Rotate the T-shaped handwheel to drive the lead screw downwards to apply compression force on the sample. The ring pressure sensor collects pressure signal and transmits to the digital force gauge, which instantly shows the force value and captures the peak breaking force automatically. Users can record load value, compression deformation and failure status for further analysis.

Variable Pressure Block Tester Application

This instrument is applied on pressure tests on ink, coating and other materials. It is also applicable on reinforcements of glue attachments.

1. Spring compression load and deformation test

2. Rubber, elastomer compression set and compression resistance test

3. Plastic, composite small sample compression performance test

4. Pharmaceutical tablet hardness & compression test

5. Powder material manual pre-pressing / small briquetting

6. Small hardware, new energy material compression destructive test

7. R&D laboratory, incoming inspection, QC quality control

Variable Pressure Block Tester Product Features

1. Manual Screw Loading Mechanism

T-shaped handwheel for manual pressurization; the lead screw transmits force evenly, loading speed can be adjusted manually, stable pressure output, no impact on test samples.

2. High Precision Digital Force Measuring System

Equipped with external ring-type pressure sensor, connected to digital force indicator. Real-time display of test force (N, kgf, lbf switchable); support peak value hold, data storage, unit conversion.

3. Stainless Steel Frame Structure

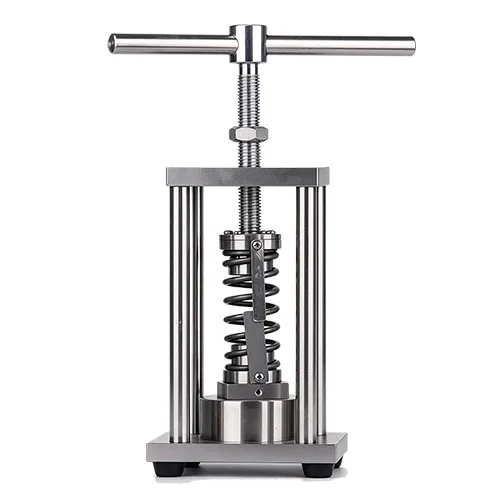

Four-column rigid support frame, high rigidity, small deformation under load, ensure test accuracy; anti-slip rubber foot pads at the bottom, prevent sliding during testing.

4. Wide Compatibility

Suitable for springs, rubber blocks, plastic samples, tablets, powder compacts, small finished parts; replaceable pressure heads to meet different sample size requirements.

5. Portable & Maintenance-friendly

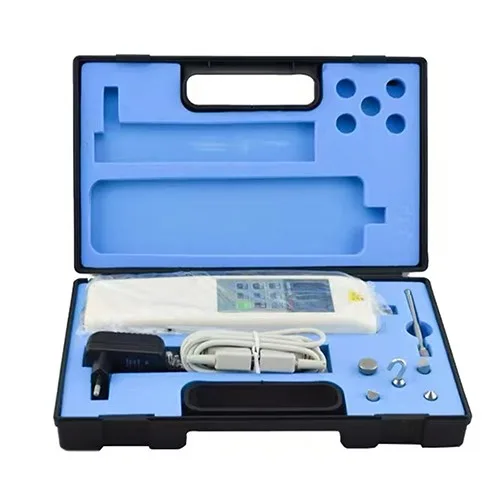

Integrated carrying case for force gauge, sensor and accessories; no hydraulic oil, no air compressor, low failure rate, convenient for lab transfer.

6. Customizable Travel & Pressure Range

The standard model VPT-80 supports customized pressure range and piston travel according to customer test requirements.

Variable Pressure Block Tester Technical Data

Variable Pressure Block Tester Packing List
