Offset Printing Prepress DOT Densitometer for CTP Plate

Product Item : DOT Densitometer
Category： Printability
DOT Densitometer
Offset Printing DOT Densitometer
Offset print DOT Densitometer
printing DOT Densitometer
Product description：In the printing process, dots are mainly used to express the color and level of the image.Changes in dots will cause changes in the clarity and subtle levels of printed products, changes in colors, an
INQUIRY

Offset Printing Prepress DOT Densitometer Introduction

In the printing process, dots are mainly used to express the color and level of the image. Dots are the basis for the reproduction and color reproduction of printed products. They are responsible for transmitting the tone and level of the original manuscript. They are the smallest unit for absorbing ink in offset printing and are the true reflection of the gradation, level and color reproduction of printed products. Changes in dots will cause changes in the clarity and subtle levels of printed products, changes in colors, and convenient problems such as contrast, ink tone, ink density and black overprinting.

Using REPLATE's most advanced dot measurement technology can help you control the dot quality of printing plates and printed products. Support all current screening technologies, including amplitude modulation, frequency modulation, special screening and mixed screening.

Offset Printing Prepress DOT Densitometer Feature

1. Measurement software APP: Advanced image processing technology ensures the accuracy of plate measurement data. It has up to 8 built-in measurement tools. In addition to meeting the daily calculation of dot percentage and screen line number, it can also measure the length, angle, area, etc. of dots and lines.

2. Android operating system: 720P capacitive touch screen, with shooting and saving, measurement data saving, and wireless network transmission functions.

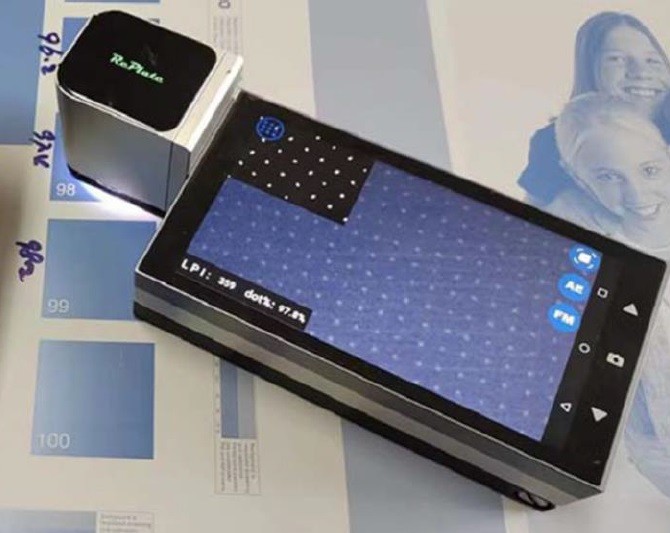

3. Real-time HD shooting: Real-time HD shooting of dot microscopic images, showing the quality of dot restoration in detail.

4. Electric fine focus: Use micro motor to adjust the lens, which facilitates the clear focus of the instrument to ensure accurate measurement.

5. Convenient data archiving: The screen has a built-in one-button shooting button for convenient measurement data storage

Offset Printing Prepress DOT Densitometer Technical Data

Item	Specification
Sensor	CMOS 1.3MP color
Magnification	Supports 5-200 times (corresponding to 17-inch screens)
Screen	720P HD LCD touch screen
Storage	8GB
Image Size	1280 × 720 pixels
Instrument Size	85 × 70 × 55 mm (length, width, height)
Battery Capacity	5000mAh
Data Interface	Micro USB2.0, HDMI
Battery Consumption	3 hours (Continuously)
Network Interface	WIFI
Operating System	Android
Measurement Accuracy	Dot% less than 0.5%
Image Format	BMP
Lighting Source	LED
Body Weight	450g
Body Memory	2GB ROM
