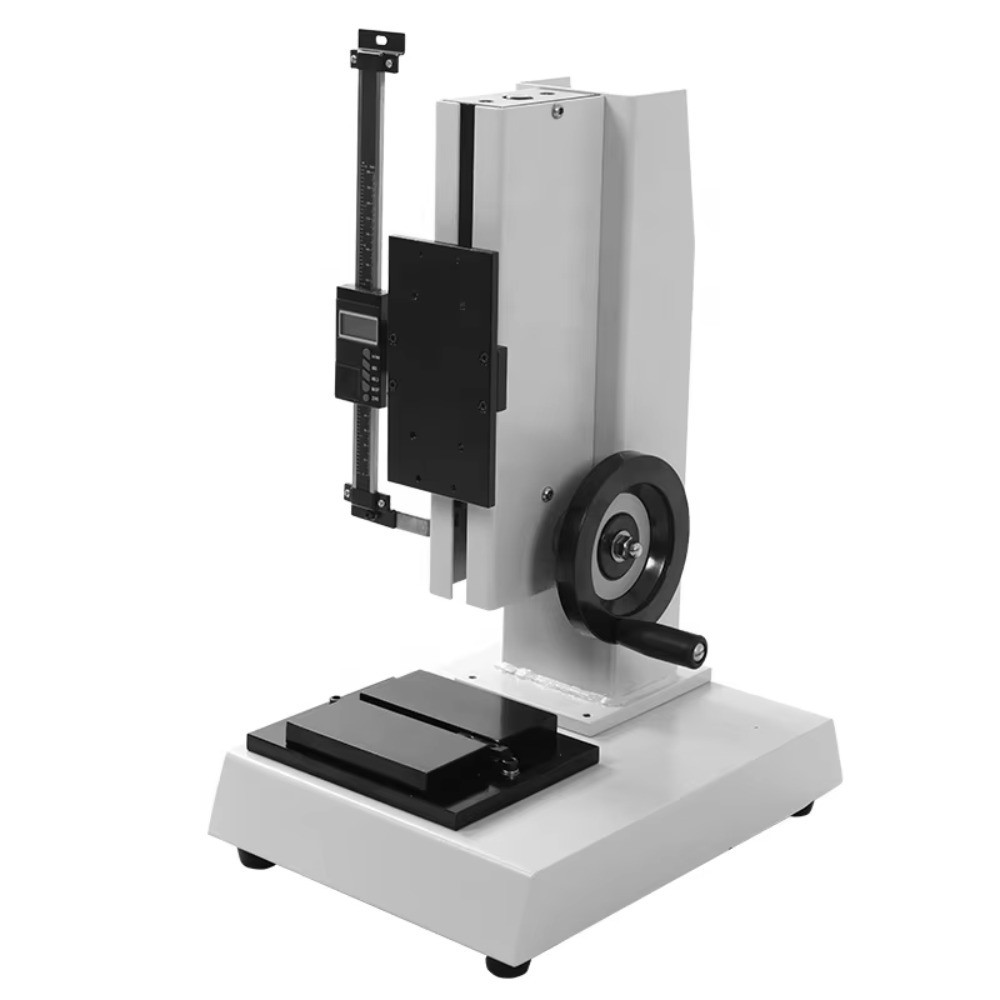

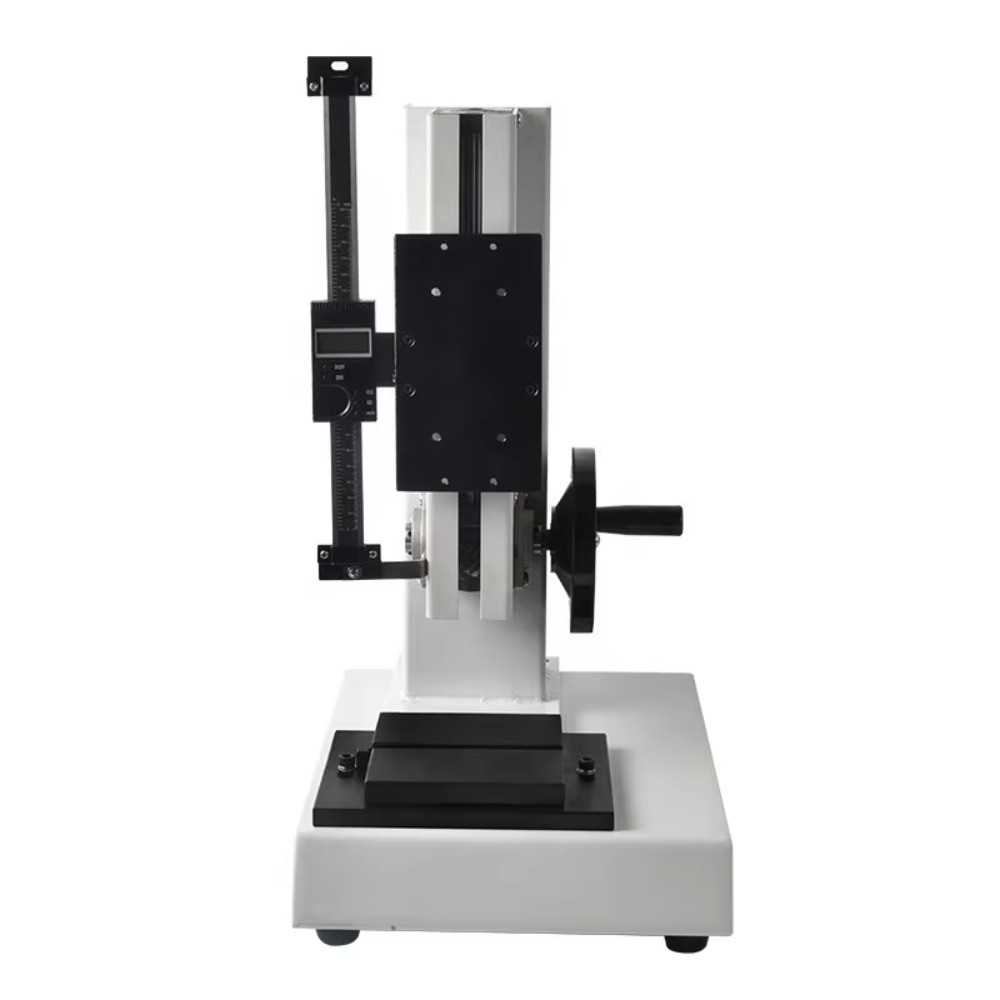

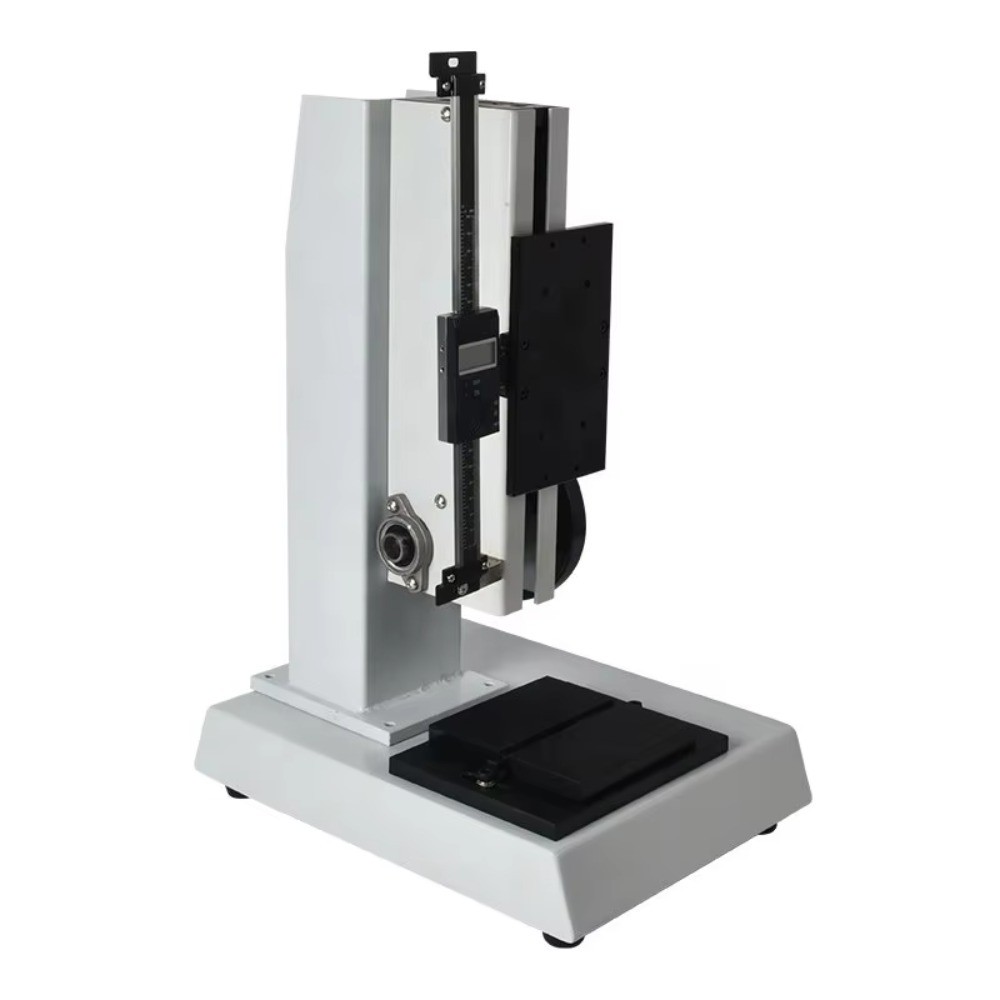

Vibration Dynamometer

Product Introduction

The vibration dynamometer is specially equipped with HF series and NK series thrust and pull gauge, which can be combined into test benches for different applications, which can be used for various tests such as insertion and removal force, holding force, failure test and other tests. It can not only display the force value, but also install a digital measuring stick at the same time to display the displacement and conduct comparative tests of different parts under the same displacement.

Features

1. The machine stand base is large and stable, suitable for indoor testing on the desktop.

2, It is driven by a screw, its table head displacement is accurate, with side handwheel loading, simple and stable operation.

3. The base moving platform with standard layout can realize left, right, front, and rear movement, and the clamping is convenient and accurate.

4, The machine bracket can be installed on the table (table) for use, with a more sturdy machine frame.

As shown in Figure 5, it is equipped with a digital gauge that allows it to collect travel data collection (ESC-S) when necessary.

Technical Data
