Video Measurement System

Product Item : VMS1510
Category： Other
Vision Measuring System
Optical Measurement System

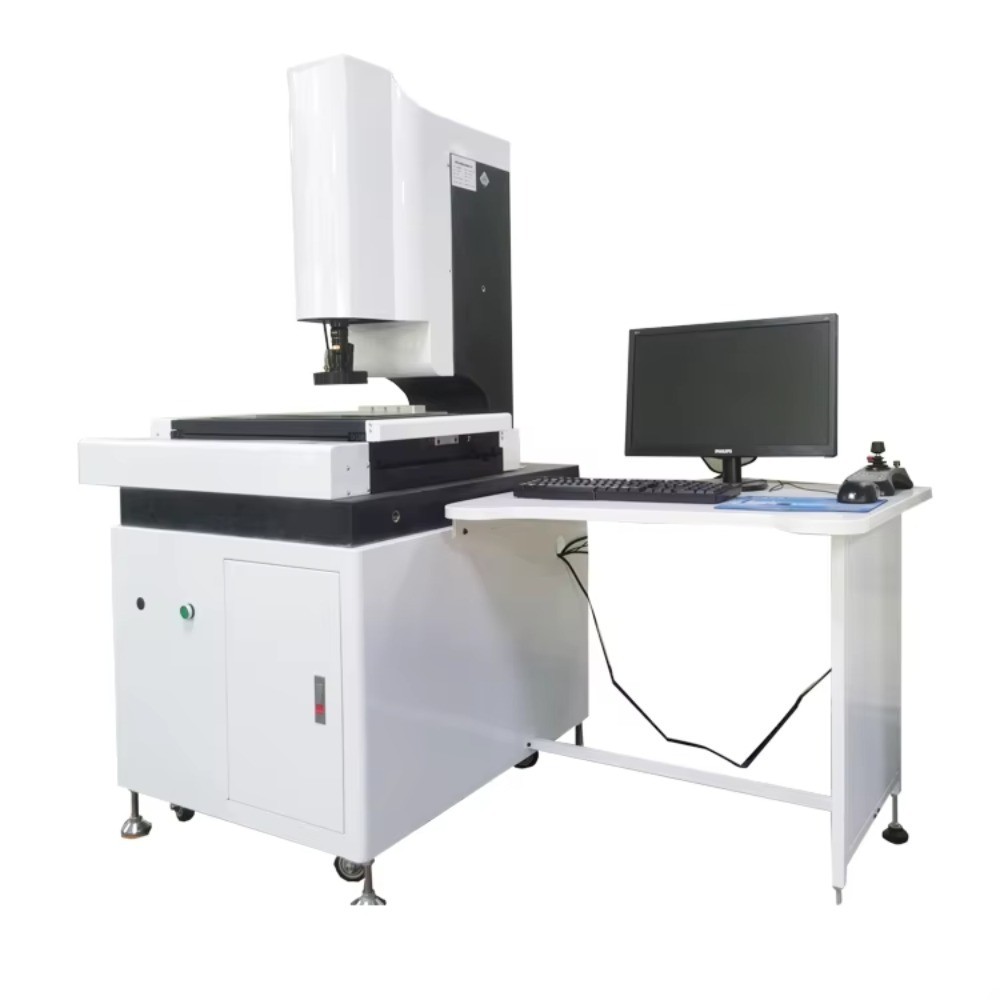

Product description：Video Measurement Systems, also sometimes known as optical co-ordinate measuring machines, are specially designed for precision dimensional measurements of small parts. The system enables 3D dimension
INQUIRY

Product Introduction

Video Measurement Systems, also sometimes known as optical co-ordinate measuring machines, are specially designed for precision dimensional measurements of small parts.

The system enables 3D dimensional measurements of small parts by using a video camera and lens system to optically magnify the part image and then identifying the edges using a metrology software so as to measure dimensions with the help of glass scales and encoders.

Working Principle

Video Measuring Systems don’t directly measure the parts but instead measure the images of the part. This necessitates a precise reproduction of the part to an image using state-of-art optics and lighting. Also, these systems use motion for measurements i.e the part is placed on a stage which can move in X-Y directions and the displacement is measured using glass scales and encoders.

Technical Data

Model	VMS-1510M	VMS-2010M	VMS-3020M	VMS-4030M
Main Sizes	700560850mm	700560850mm	850600900 mm	970670940 mm
Metal platform size	345*250 mm	345*250mm	450*350mm	650*350mm
Glass platform size	220*150mm	220*150mm	340*240 mm	480*370 mm
Real impulsive stroke	150100120 mm	200100130mm	300200150mm	400300150mm
weight	130 kg	140 kg	200 kg	250 kg
Machine bottom	Grade 00 granite
Linear accuracy	(3 + L/75)& micro; m
Surface lighting	Light emitting diode rings form an ultra-bright cold light source (brightness adjustable)
The silhouette is shiny	LED Super Bright Round Light (Brightness Adjustable)
Calculation, calculation function	REICA 2.5D Precision Measurement System software
Analytical skills	0.001 mm
Repeatability	0.002 mm
CCD	SONYchip1/3 color charge-coupled device
eyepiece	0.5x (1x, 2x)
Object glass	0.7X ~ 4.5X amplification factor 20X ~ 120X
power supply	AC90 ~ 264V 50/60Hz
load	30 kg
