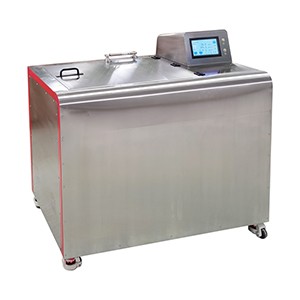

Washing Color Fastness Tester (Larger Capacity)

Product Item : ZHIYI-20A
Category： Textile Testing Equipment
Washing Color Fastness Tester
Color Fastness Tester
Washing Color Fastness test
Product description：Washing color fastness tester ZHIYI-20A is designed for determining the color fastness to washing and dry cleaning of textiles. Standards GB/T3921.1～GB/T3921.5, ISO105 D01, ISO105 C01～ISO105 C05, IS
INQUIRY

Product Introduction

Washing color fastness tester ZHIYI-20A is designed for determining the color fastness to washing and dry cleaning of textiles.

Standards

GB/T3921.1～GB/T3921.5, ISO105 D01, ISO105 C01～ISO105 C05, ISO105 D01, ISO105 C06, GB/T5711, JIS L 0844, JIS L 0860, AATCC 61, GB/T5711, etc.

Product Features

1. The entire instrument is made of 304 stainless steel brushed plate, and the test cups are fixed by a rotating locking mechanism;

2. The test cups must have good sealing performance. An empty test cup, when sealed tightly at room temperature and placed in water above 95℃, should not have any bubbles overflowing within 1 minute;

3. The test chamber door adopts a side-opening structure and an imported stainless steel gas spring for labor-saving operation;

4. It has a water level protection function to prevent dry burning; and a protection function to prevent the test rack from rotating after the test chamber lid is opened;

5. Equipped with a large-screen color touch screen operation, with Chinese and English menu operation modes;

6. The water temperature is adjusted by PID three-phase heating; the thermostat has a temperature compensation adjustment function;

Technical Data

Item No.	Technical Specification	Detailed Parameters
1	Stainless Steel Test Cup	550ml capacity; Diameter: 75±5mm, Height: 125±10mm
2	Shaft to Cup Bottom Distance	45±10mm (from rotating shaft center of specimen holder to test cup bottom)
3	Loaded Rotation Speed	40±2 r/min (specimen holder)
4	Water Heating Time	Room Temp. ~ 60℃: ≤12min; 61℃ ~ 95℃: ≤24min
5	Temperature Control	Range: Water Temp. ~ 95℃; Display resolution: 0.1℃; Control accuracy: ±1℃
6	Timer Setting	Range: 1 ~ 99999.9min; Timing error: ≤±1min
7	Water Inlet	1 set
8	Overall Dimensions (L×W×H)	1110mm × 750mm × 1050mm
9	Power Supply	AC 380V, 50Hz, 8KW
10	Net Weight	150kg

Packing List for Standard Accessories

Item No.	Description	Quantity	Unit
1	Main Unit (Host Machine)	1	Set
2	550ml Stainless Steel Test Cup	20	Pcs
3	Stainless Steel Rotating Rack	1	Set
4	Imported Sealing Ring	40	Pcs
5	Corrosion-resistant Stainless Steel Ball (Diameter 6mm)	1	Pack
6	100ml Measuring Cup	1	Pc
7	Steel Ball Spoon	1	Pc
8	Rubber Gloves	1	Pair
9	Product Quality Certificate	1	Copy
10	Product Operation Manual	1	Copy
11	Product Brochure	1	Copy

Optional Accessories

Item No.	Description	Specification
1	Stainless Steel Test Cup	1200ml capacity
2	Rubber Sealing Ring	Dry cleaning resistant, Diameter 75mm
3	Steel Sheet	Diameter 30mm, Thickness 3mm
