  • 300kn ZHIYI-300d Hydraulic Servo Universal Testing Machine
  • 300kn ZHIYI-300d Hydraulic Servo Universal Testing Machine
300kn ZHIYI-300d Hydraulic Servo Universal Testing Machine300kn ZHIYI-300d Hydraulic Servo Universal Testing Machine

300kn ZHIYI-300d Hydraulic Servo Universal Testing Machine

  • Product Item : ZHIYI-300d
  • Category: Other
  • Product description:300kn ZHIYI-300d Hydraulic Servo Universal Testing Machine
  • INQUIRY

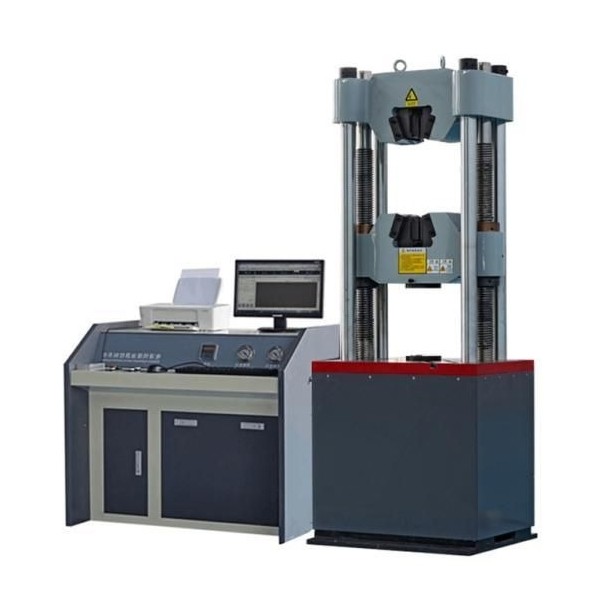

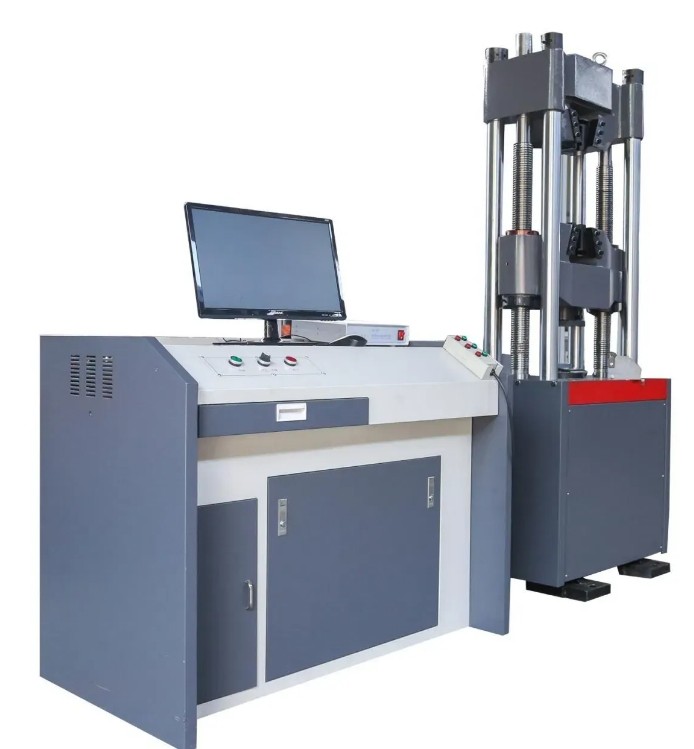

ZHIYI-300D hydraulic universal testing machine main machine adopts the structure of oil cylinder down type main machine, mainly used for the mechanical properties test of metal materials, non-metal materials, product parts, components, structural parts, standard parts and so on. 2.This series of testing machine can also do the material stretching, compression and bending test under the environment if it is equipped with environmental device.For example: high temperature tensile, low temperature tensile, compression and other tests.
It meets the requirements of the national standard GB/T228.1-2010 "Metal Material Tensile Test Method at Room Temperature", GB/T7314-2005 "Metal Compression Test Method", and complies with the data processing of GB, ISO, ASTM, DIN and other standards. It can meet the requirements of users and the standards provided.





Display Mode

Full Computer Control and Display

Model

ZHIYI-300B

ZHIYI-300D

Structure

2 Columns

4 Columns

2 Screws

2 Screws

Max.Load Force

300kn

300kn

Test Range

2%-100%FS

Displacement Resolution(mm)

0.01

Clamping Method

Manual clamping or Hydraulic clamping

Piston Stroke(Customizable)(mm)

150

Tensile Space(mm)

580

Compression Space(mm)

500

Round Specimen Clamping Range(mm)

Φ4-32

Flat Specimen Clamping Range(mm)

0-30

Compression Plate(mm)


Φ160
