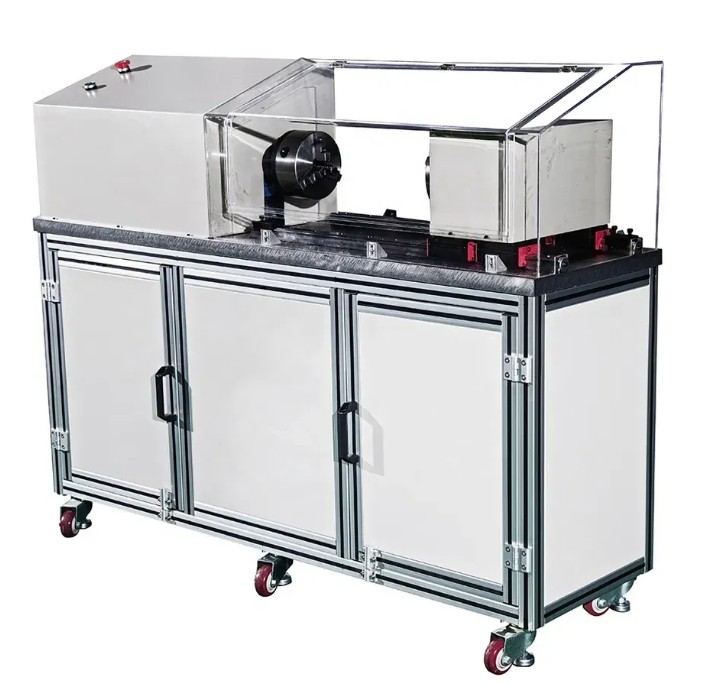

Computer-Controlled Wire Torsion Testing Machine

Product Item : ZHIYI-1207
Category： Other
Product description：ZHIYI-1207 computer controlled torsion testing machine is composed of loading system, transmission system, data acquisition and processing system and computer display system. It is applicable to metal
INQUIRY

1. Application
ZHIYI-1207 computer controlled torsion testing machine is composed of loading system, transmission system, data acquisition and processing system and computer display system. It is applicable to metal materials, non-materials and various components such as transmission shafts, wind blades, double metal material bimetal parts, joints, etc. static torsional mechanics performance test. This machine adopts vertical structure, computer screen real-time display torque and torque angle, digital data acquisition control system, adopts planetary cycloid reducer transmission, with features of uniform loading, stability, no impact phenomenon, accurate data acquisition control. It is specially researched and designed for medical bone screw torsion test.

2. Standard
ISO 6475:1989Implants for surgery-Metal bone screws with asymmetrical thread and spherical under-surface-Mechanical requirements and test methods ASTM F543-02 Standard Specification Test Methods for Metallic Medical Bone Screws

3. Technical Parameters

Model	ZHIYI-1207
Max torque	500 Nm
Test Range	10 ~ 500 Nm
Test class	Class 1
Control method	Computer control
Torque value relative error	±1%
Torque repeatability error	±1%
Torque effective test range(F·S)	2%~100%F·S (4~500Nm)
Torque resolution	0.02 Nm
Effective distance between two chucks (moving space between two chucks)	0-500mm
Concentricity accuracy between two clamps	0-500mm
Torsion angle value relative error	≤ Φ 0.2mm, in the range of 1000mm
Torsion angle display range	≤±1%
Torsion angle display range	Unlimited (or 99999°)
Torque angle resolution(°)	0.1°
Torque angle resolution(°)	0.05-800
Torsion speed	1-720°/min Stepless speed
Torsion speed relative error	≤±1% of setting vlaue
Power Supply	AC 220V±10%,50Hz
Test rotating direction	Two ways: forward & reversal
Main Host weight	350kg
