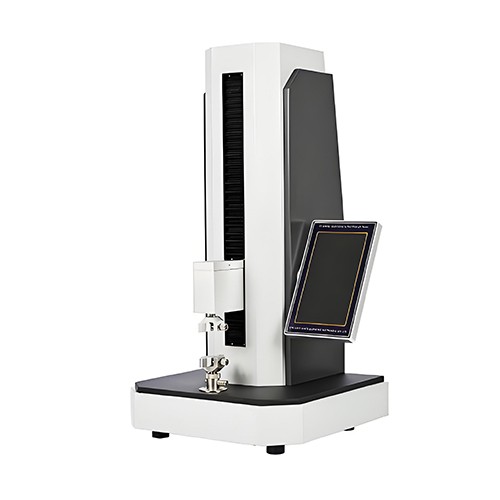

Back Adhesive Peel Strength Tester

Product Item : PST-300
Category： Tensile Testing Machine
peel strength tester
peel strength test
adhesive peel strength tester
Product description：Measure peel strength of sanitary napkins
INQUIRY

Back Adhesive Peel Strength Tester Application

Measure the adhesive peel strength of sanitary napkins and pads

Back Adhesive Peel Strength Tester Product Features

● Ball screw, three guide shaft, smooth and accurate transmission.

● ARM processor, imported 24-bit analog-to-digital converter, fast control, accurate and fast calculation data.

● Has data memory and overload protection functions.

● Cotex-M4 ARM processor

● Test data can be exported from USB flash drive.

● The system and screen software can be upgraded through the network or USB flash drive.

● Supports a variety of communication methods, online software (purchased separately) can be WIFI or USB communication.

● Test data can be uploaded to the cloud server, and cooperate with the QMS paper quality management system (purchased separately) to monitor the paper test data in real time.

Back Adhesive Peel Strength Tester Standards

GB/T 12914，GB/T 2792，GB/T 24218.3，GB/T 1040，TAPPI T 494，GB/T8939-2018

Back Adhesive Peel Strength Tester Technical Data

NO.	Parameter items	Technical Indicators
1	Power supply	AC(100～240)V，(50/60)Hz，100W
2	Working environment	Temperature: (10~35)°C, relative humidity ≤85%
3	Display	10-inch color touch screen with 1024*600 resolution capacitive touch
4	Measuring range	(0.3~30)N
5	Resolution	0.001N
6	Indication error	±1%(Range5%~100%)
7	Work Capacity	(35~300)mm( adjustable)
8	Specimen width	80mm
9	Test speed	(1~500)mm/min(adjustable)
10	Data storage	50 test data
11	Data export	Export data to USB flash drive
12	Print	Built-in thermal printer
13	Communication interface	USB、WIFI(2.4G)
14	Dimensions	400×320×900 mm
15	Net weight	71 kg
