Battery Explosion-Proof Chamber

Product Item : ZYEP-900
Category： Other

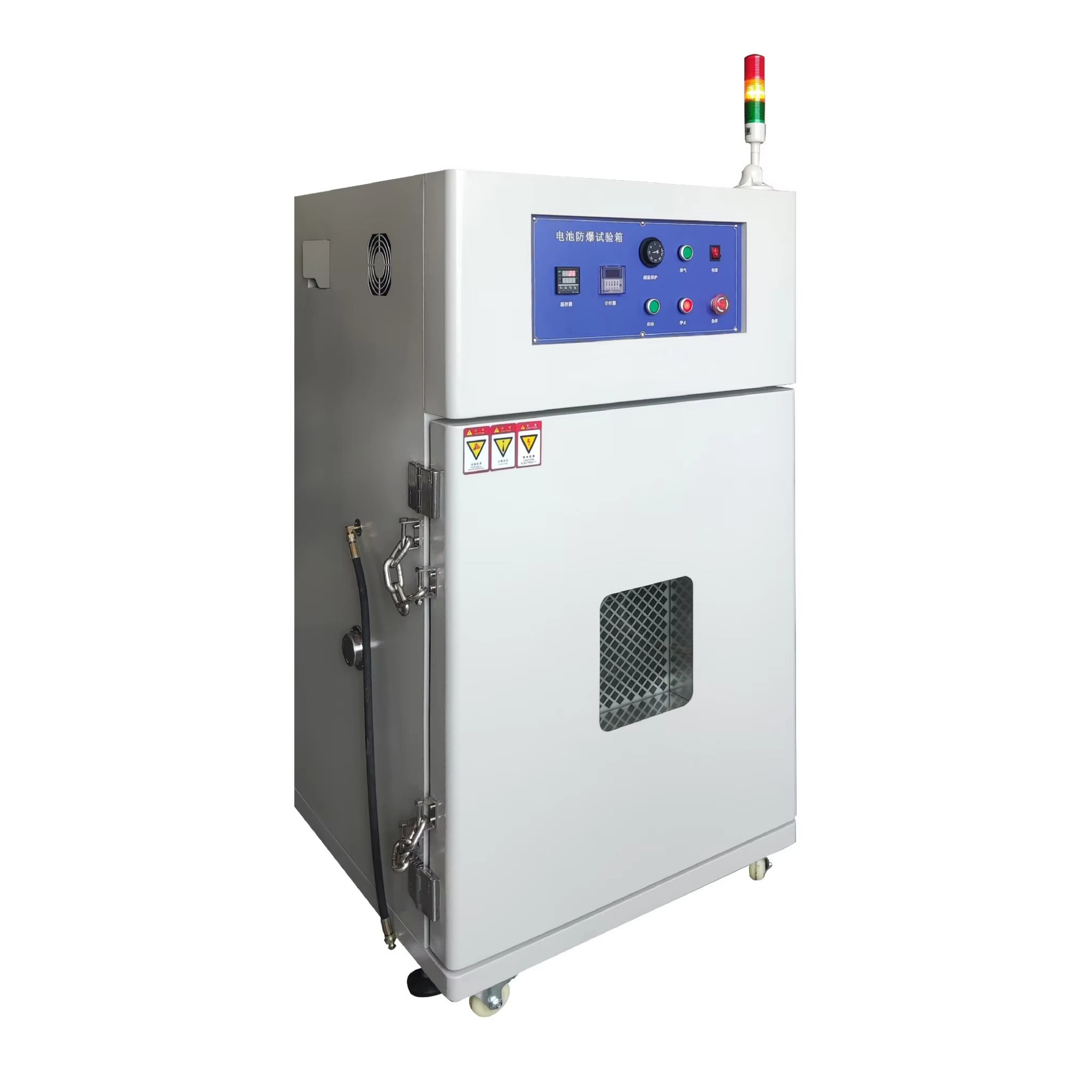

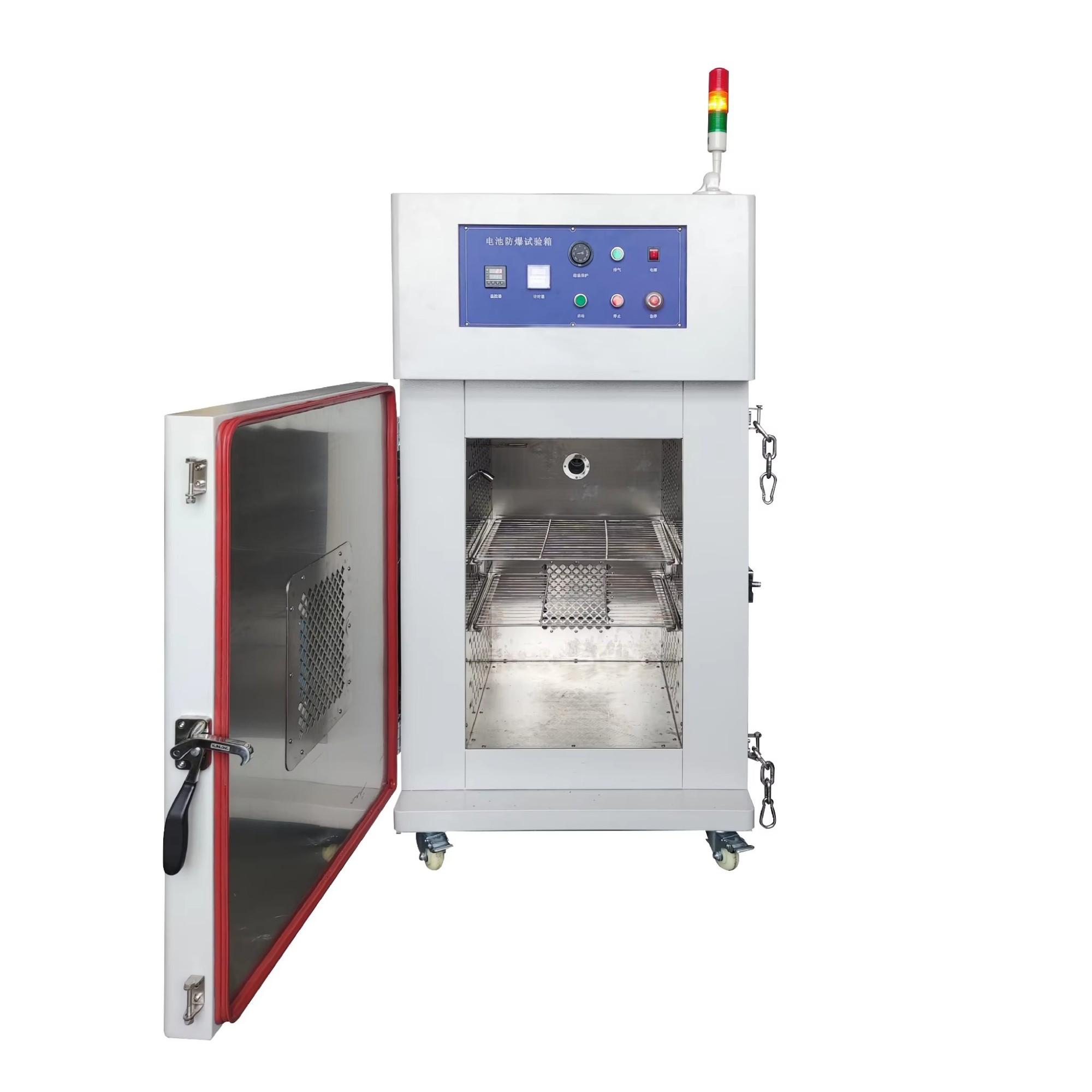

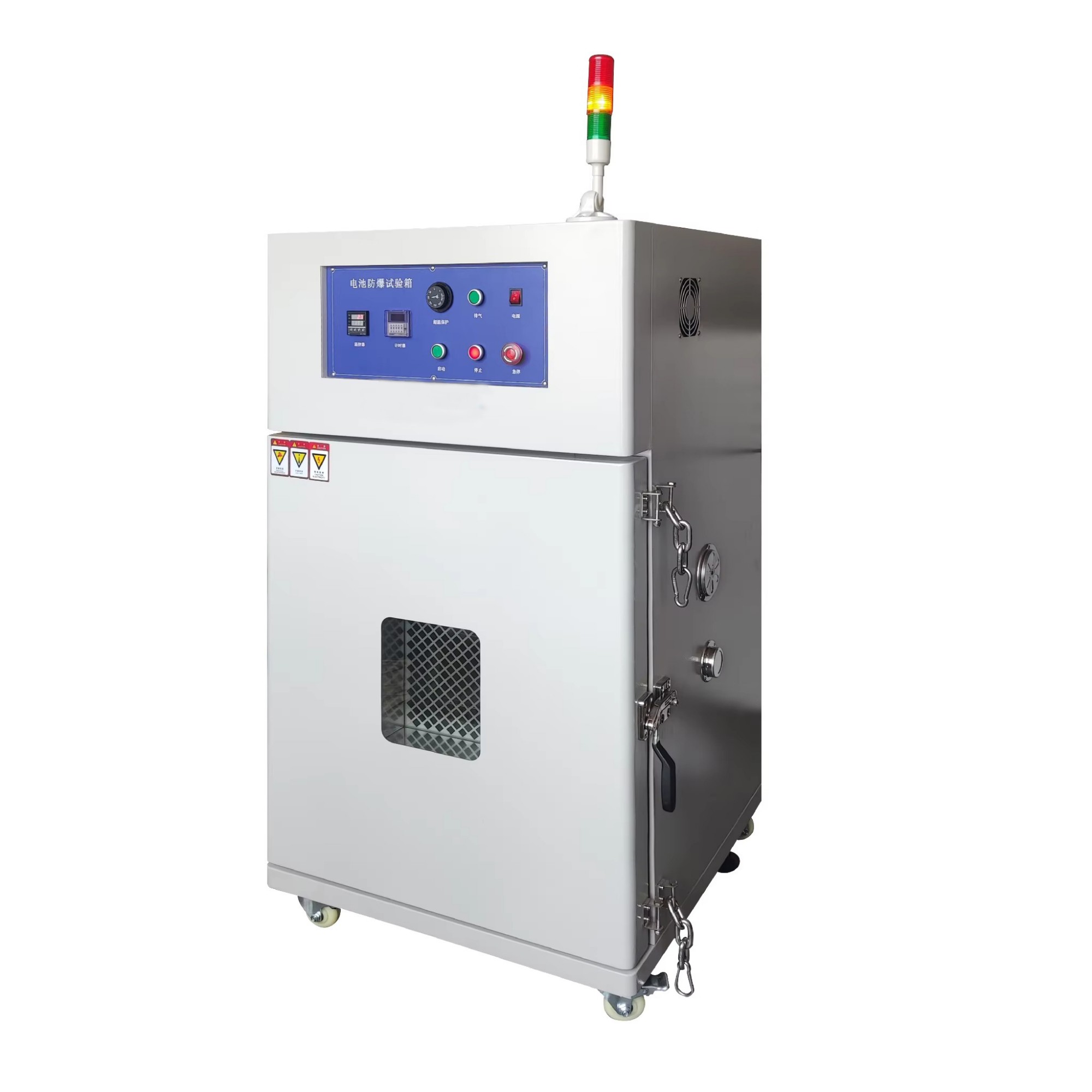

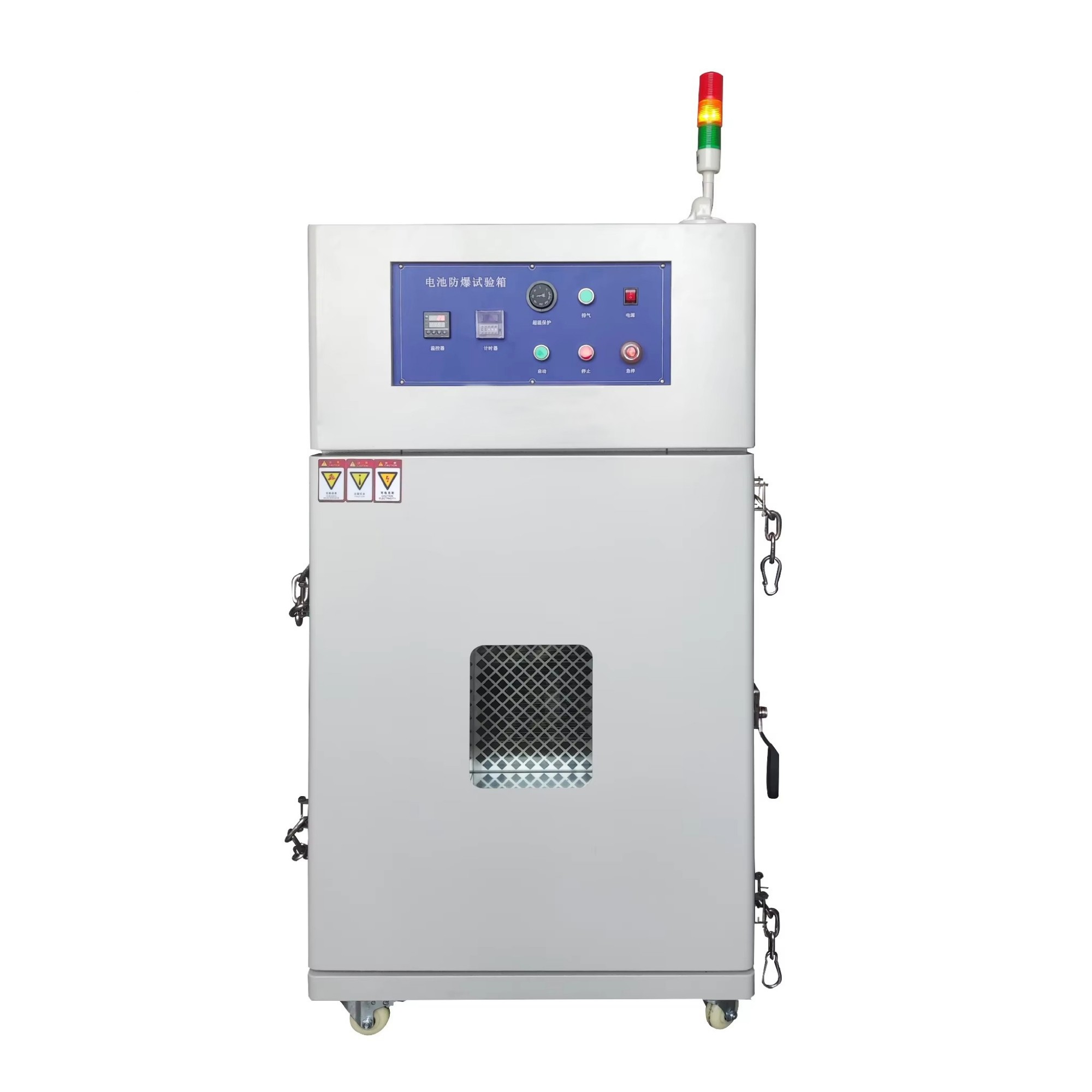

Battery Explosion-Proof Chamber
Product description：This testing machine is mainly used for overcharging and discharging batteries. During charge and discharge tests, the battery is placed in an explosion-proof box and connected to an external charge-d
INQUIRY

Product Introduction

This testing machine is mainly used for overcharging and discharging batteries. During charge and discharge tests, the battery is placed in an explosion-proof box and connected to an external charge-discharge tester to protect the operator and the instrument. It can also be used for storage and storage of batteries. The test chamber of this machine can be customized according to the test requirements.

Technical Data

Control Panel	Controls located in the upper part of the machine

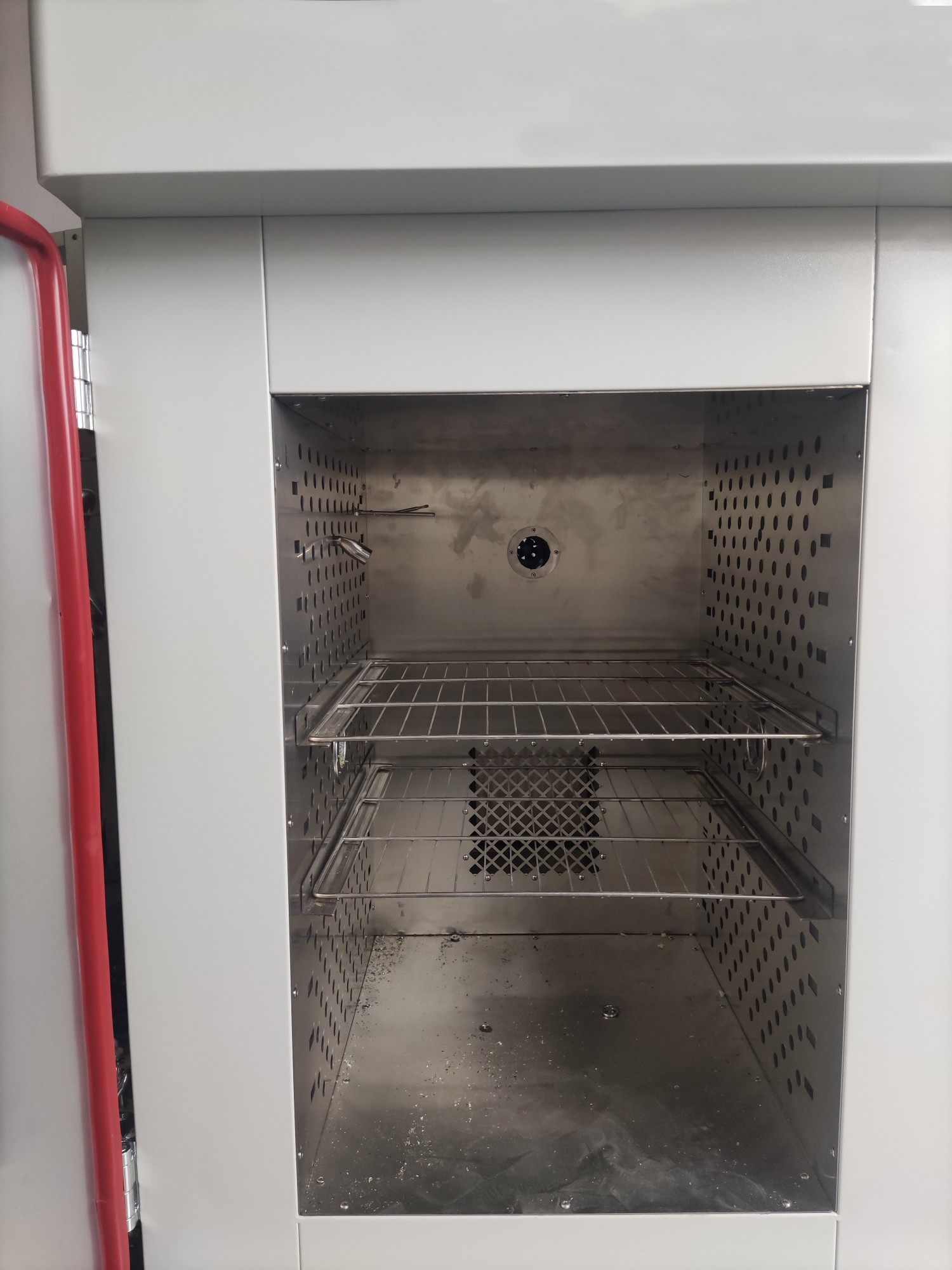

Inner box material	Stainless steel mirror panel
Outer box material	Cold-rolled steel plate treated with paint
Test wells	A lead test hole is drilled on the right side of the upper and lower test chambers with a hole size of 50 mm
Lock	The door is connected to the case by a strong hinge, and the anti-explosion cold handle door lock is proof
Casters	Brake movable casters are installed at the bottom of the machine for free movement
Smoke extraction function	During the battery test, the exploding smoke and exhaust gas can be discharged outside through the exhaust fan, and the rear outlet of the smoke exhaust explosion-proof box is located on the upper and lower floors of φ 90mm pipe to the outside, and the smoke exhaust is manually started
Relief safety features	A pressure relief port is opened directly behind the inner box, which will immediately emit a shock wave in the event of an explosion, the size of the pressure relief port is 150*150 mm, and an explosion-proof chain is installed on the door to prevent the impact from falling off, causing work-related injuries or other losses.
Circuit protection system	Grounding protection and fast insurance
Use the power supply	Voltage AC220V/50Hz single phase, power 500W
Device weight	Approximately 120 kg
Optional	Fire extinguishing equipment, video surveillance system, electronic door lock system
