Button Durability Tester

Product Item : ZYLT-811
Category： Textile Testing Equipment
Button Life Tester
Button Durability Tester
Button Impact Tester
Product description：This pneumatic button life tester is designed for life testing of a wide range of buttons, keyboards, and switches (silicon switch, metal dome, mobile phones, two-way radios, and automotive products).
INQUIRY

Product Introduction

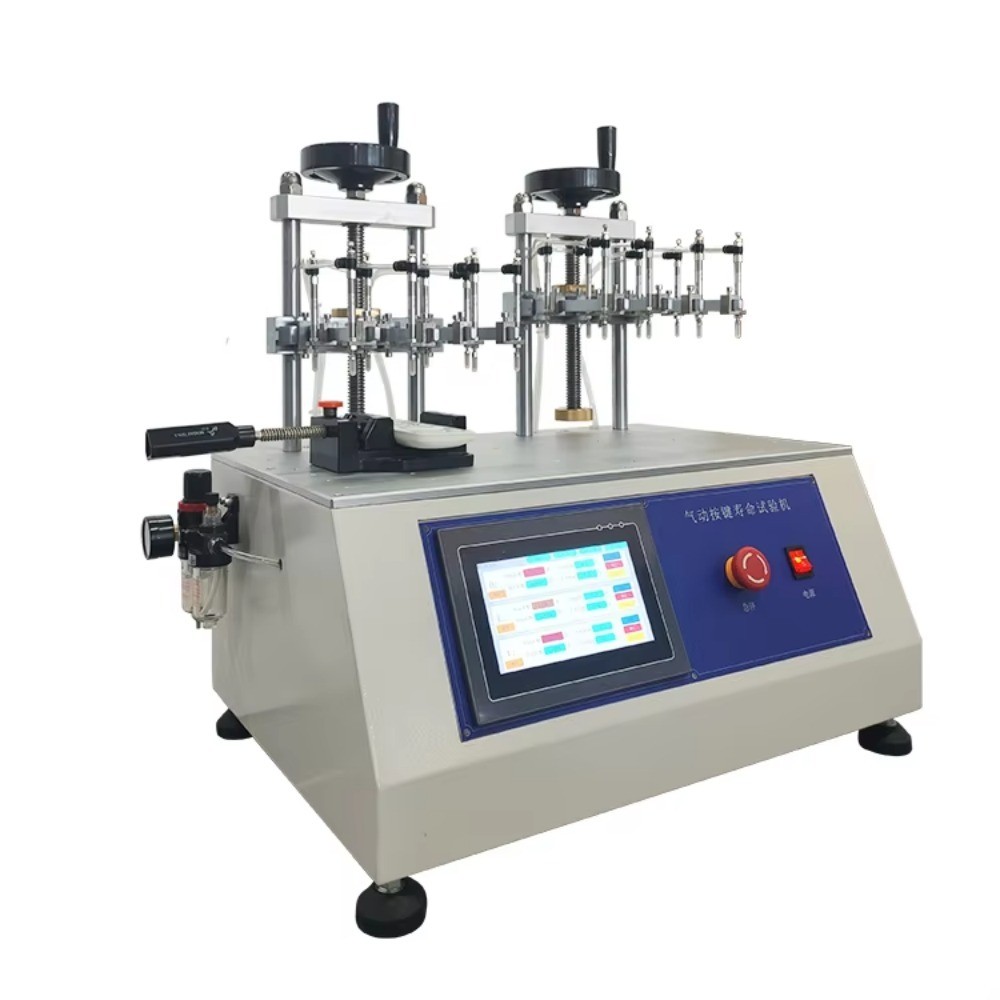

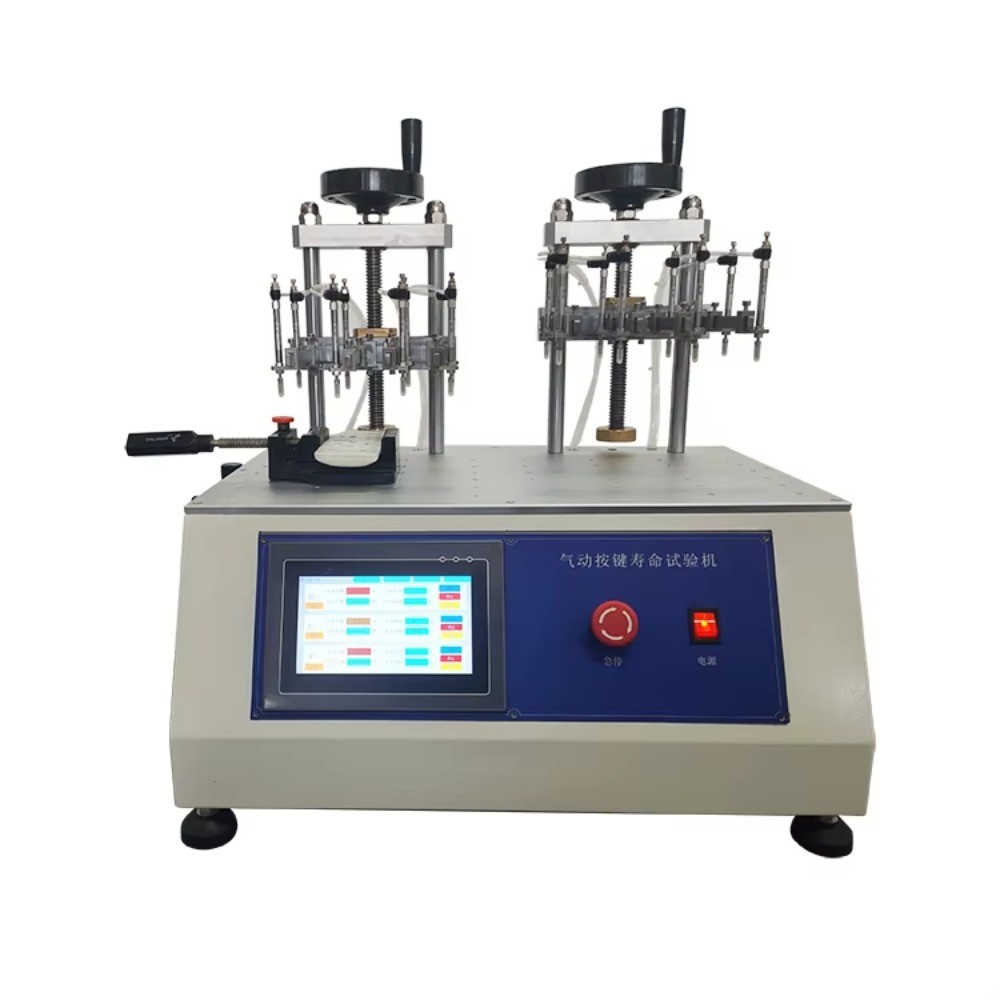

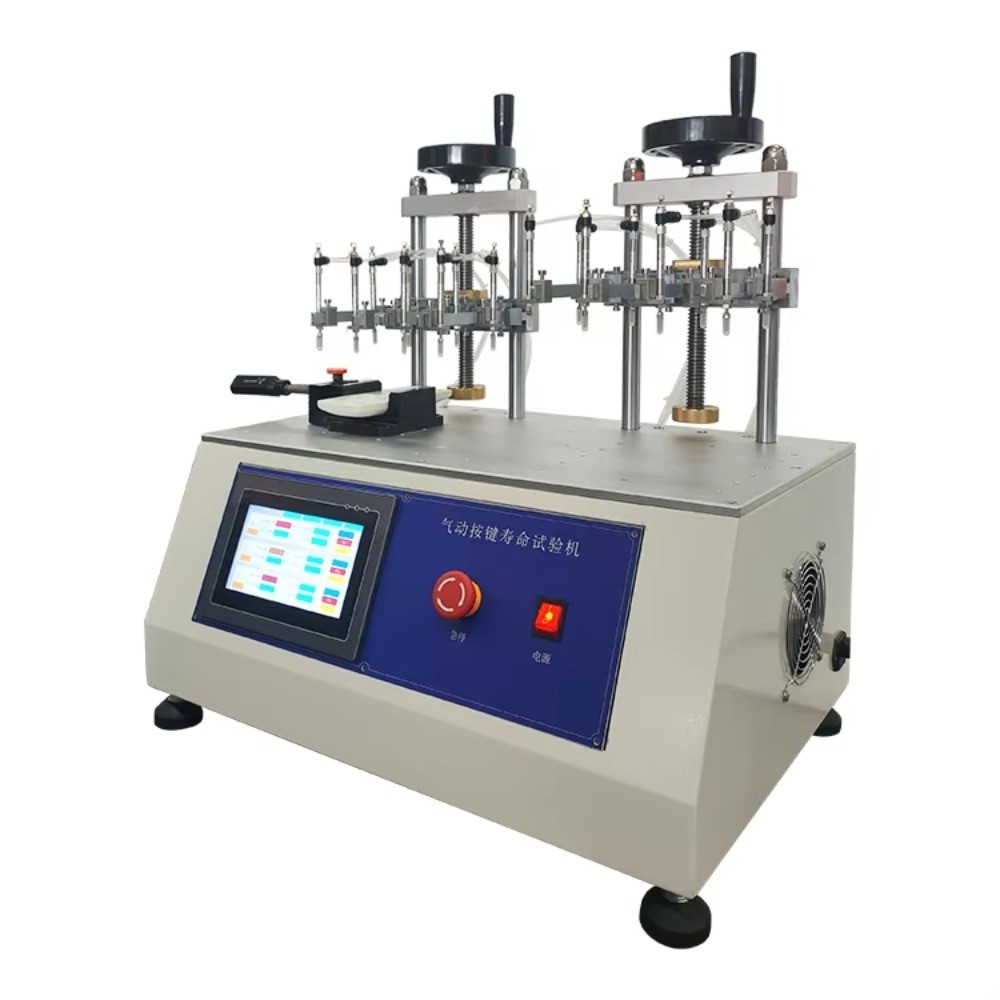

This pneumatic button life tester is designed for life testing of a wide range of buttons, keyboards, and switches (silicon switch, metal dome, mobile phones, two-way radios, and automotive products). It uses a cylinder to drive the buttons up and down, allowing the button or keypad to move relative to the probe. A good clamping method makes your testing precise and productive. The probe can be moved in all directions and is controlled by a touch screen that accurately counts the number of button presses. It will automatically stop when the set number of times is reached.

Technical Data

Maximum load	10kg (the size of the test force can be monitored in real time)
Sample size	25 * 30 cm
Button head diameter	5.5mm, 6mm, 8mm, 10mm, 12mm optional, standard 5.5mm
Pressure monitoring	With pressure monitoring and data report export
Test station	2 stations (8 buckles each)
Control method	Computer + touch screen, both can be set up, and the report is output directly after the test
Exercise method	The cylinder drives the test head to move up and down
Test speed	0-60 times/min, adjustable
Mobile phone fixtures	Hold the side of the lid
Height adjustment	Manually adjustable
Machine size	13008501200 mm
power supply	220V 50hz
weight	About 100 kg
