Semi-automatic Metallography Grinding & Polishing Machine

Semi-automatic Metallography Grinding & Polishing Machine

Product Item : ZYGP-500
Category： Metal Testing Instrument
metal Grinding and Polishing
Polishing & Grinding Systems
Product description：ZYGPS-500 semi-automatic metallographic specimen grinding and polishing machine features a high-end touch screen and is equipped with an electric grinding and polishing head. It can grind and polish f
INQUIRY

Product Introduction

In the process of metallographic sample preparation, grinding and polishing of the sample is an essential process. After grinding and polishing the sample, a bright surface like a mirror is obtained.

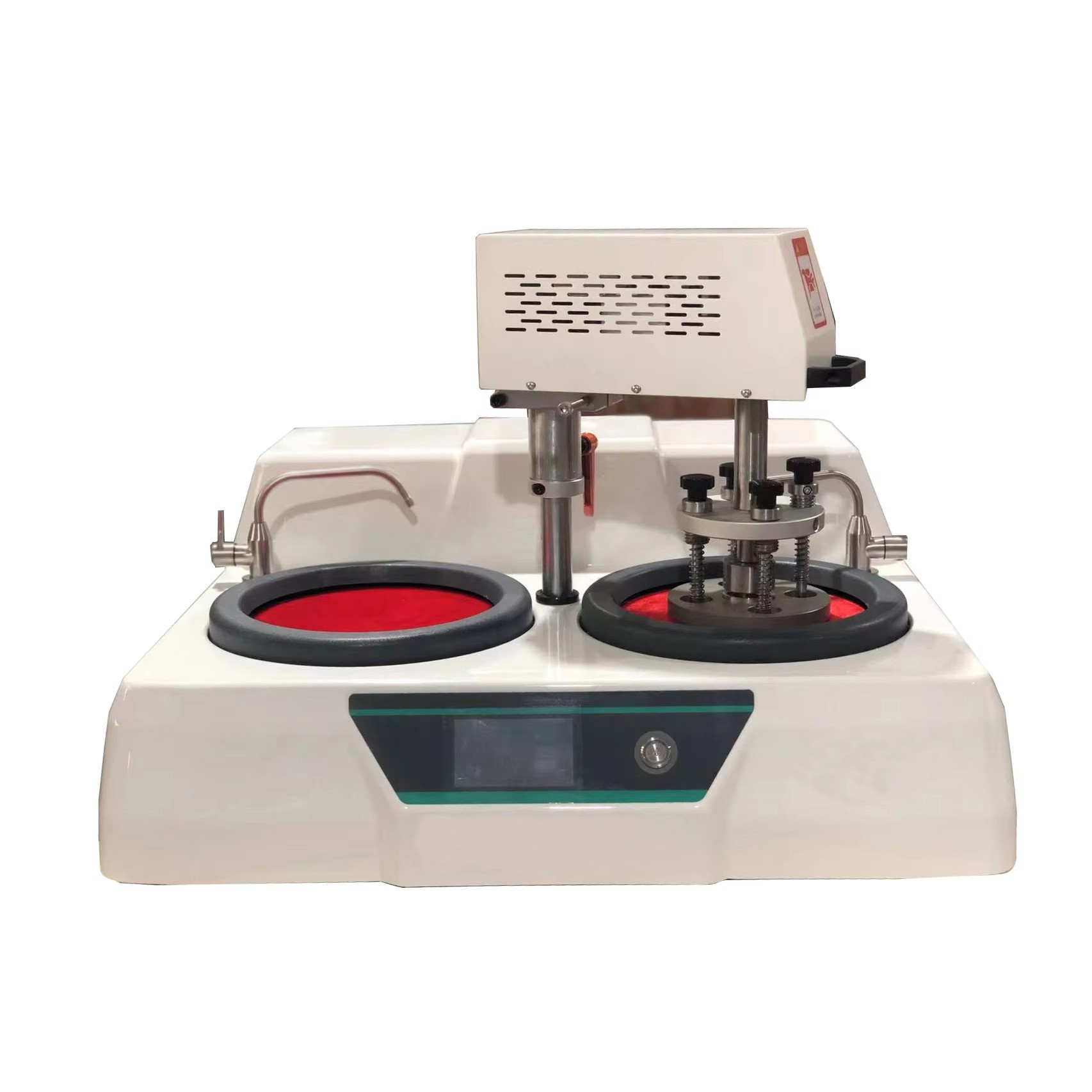

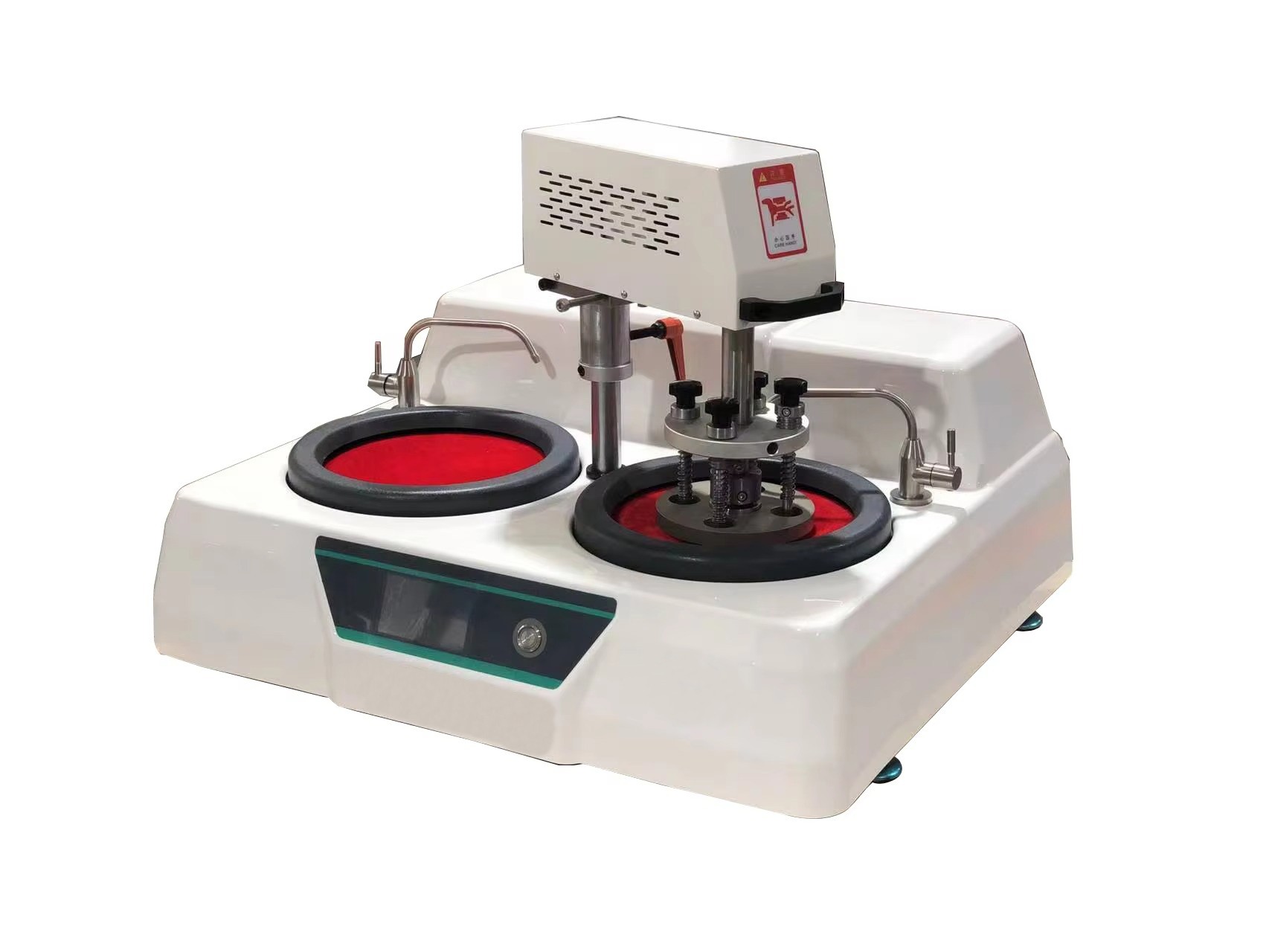

ZYGPS-500 semi-automatic metallographic specimen grinding and polishing machine features a high-end touch screen and is equipped with an electric grinding and polishing head. It can grind and polish four samples at once. It has the characteristics of smooth rotation, free hands, low noise, easy operation and high efficiency.

The rotation speed of the grinding and polishing plate is infinitely adjustable between 50-1000 rpm. The grinding and polishing process of samples can be done by replacing metallographic sandpaper and polished fabrics, showing a wider range of applications. The bottom shell adopts integral blister for a novel appearance and comes with a cooling device, which can cool the sample during grinding and polishing to prevent damage to the metallographic structure due to overheating of the sample. It is suitable for metallographic laboratories in factories, colleges and universities, and scientific research institutions, and is an ideal equipment for grinding and polishing metallographic samples.

Technical Data

Grinding disc diameter	Standard φ 250 mm (other specifications customized)
Grinding disc control	Dual disks and dual controls
Grinding disc speed	50-1000 rpm (stepless speed regulation)
Grinding disc speed	Eight fixed speeds
The direction of rotation of the grinding disc	forward and backward
Grinding head speed	60 rpm
Pressure pattern of the grinding head	Spring mechanical pressurization
Clamping volume	4
Countdown function	The time can be set arbitrarily and the machine will stop automatically
power supply	Voltage: 220V Frequency: 50hz
impetus	0.5 kilowatts
Overall size	430X730X530m meters
weight	60 kg
