Metallographic Grinding & Polishing Machine

Product Item : ZHIYI-GP101A
Category： Metal Testing Instrument
Grinding & Polishing Machine
Metal Grinding Machine
Metal Polishing Machine
Metal Grinding and Polishing Machine
Product description：ZHIYI-GP101A is an automatic grinder and polisher for metallographic specimen preparation with single disk. The strong and variable speed drive allows application for all working steps. The adjustable
INQUIRY

Product Introduction

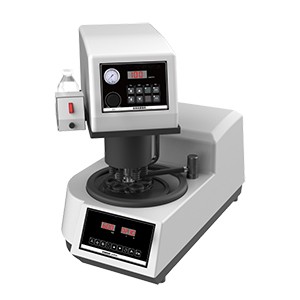

ZHIYI-GP101A is an automatic grinder and polisher for metallographic specimen preparation. The strong and variable speed drive allows application for all working steps. The adjustable individual piston polishing heads can polish 1 to 6 specimens independent of each other.

Product Features

1. Simple operation for grinding and polishing

2. Variable speed. Preset three fast speed buttons

3. Adjustable piston pressure polishing head for polishing 1-6 specimens independent of each other

4. CCW and CW direction control

5. The water hose with universal direction can be pulled out for cleaning the basin

6. Plastic disposable bowl liner for ease of cleaning

7. Hard anodized aluminum working wheel

8. Durable composite construction, antirust

9. Powder coated aluminum housing, durable and reliable

Technical Data

Description	ZHIYI-GP101A
Wheel (mm)	○Ø203 ●Ø254
Speed(rpm)	100-1000rpm，can be customized
Wheel	1
Motor	550W
Mode	Automatic
Speed of head(rpm)	50-200
Holder(mm)	Φ30x6,can be customized
Pressure	Individual Piston
Motor of Head	90W
Power	220V
Packing Size	90 x 65 x 84 cm
Packing Weight	95kgs
Paper Ring	●
Splash guard	●
Cover	●
Grinding paper	●
Polishing Cloth	●
Diamond Spray	○
Diamond Slurry	○
Alumina Powder	○
Recirculating Tank	○
